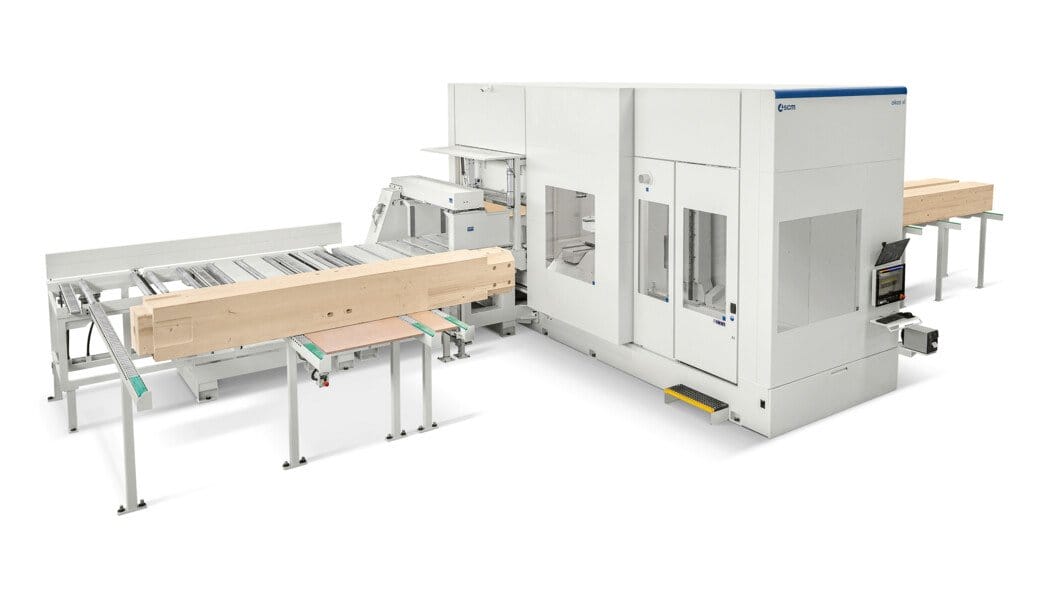

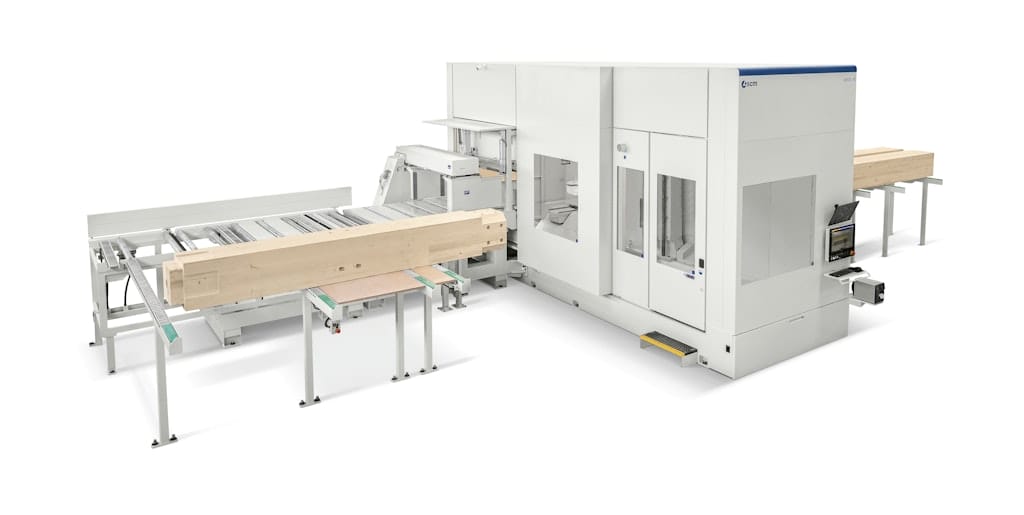

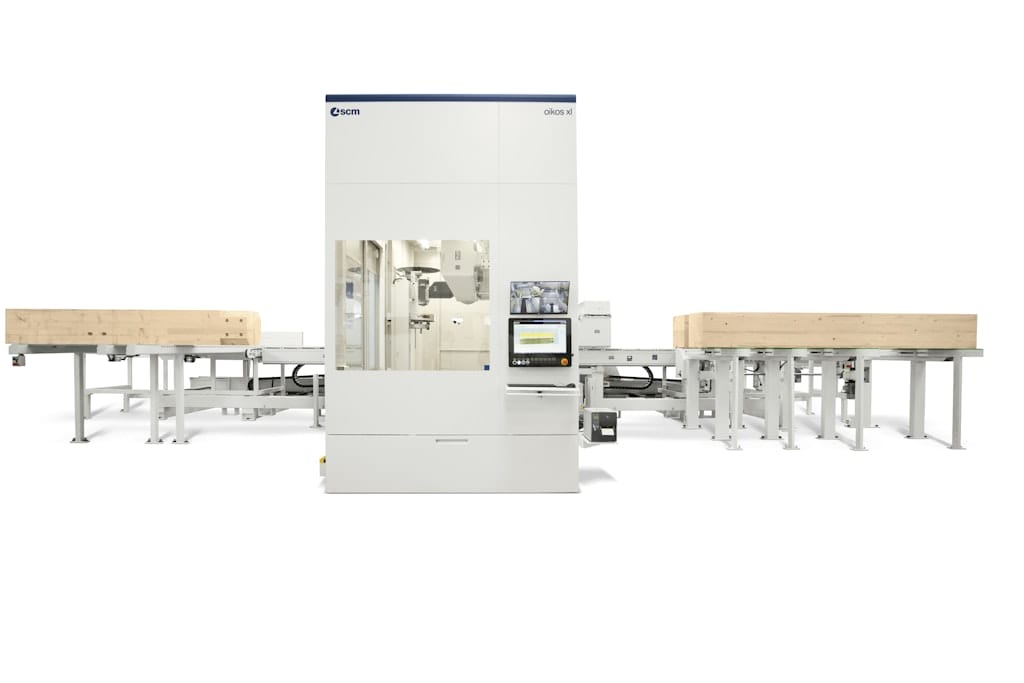

Oikos xl
POA
Product Features
Specifications
Technical data

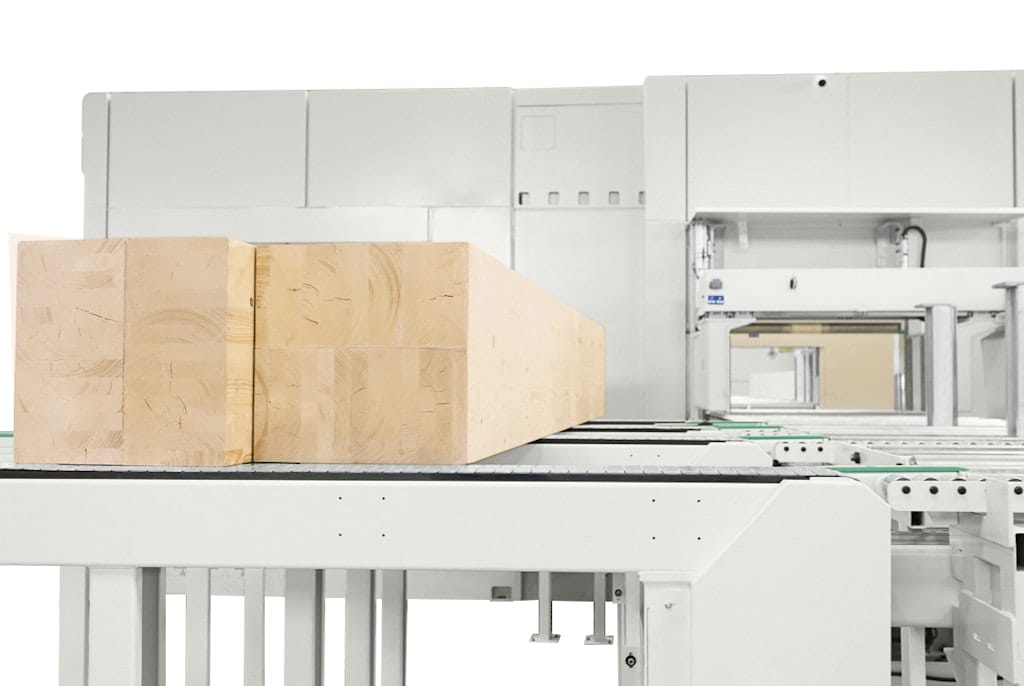

| Workpiece dimensions | ||
| Length max. | mm | 9.000 – 13.500 – 19.000 |
| Cross-section max. | mm | 1.250 x 300 |
| Cross-section min. | mm | 50 x 20 |
| Weight max. | kg | 4.000 |

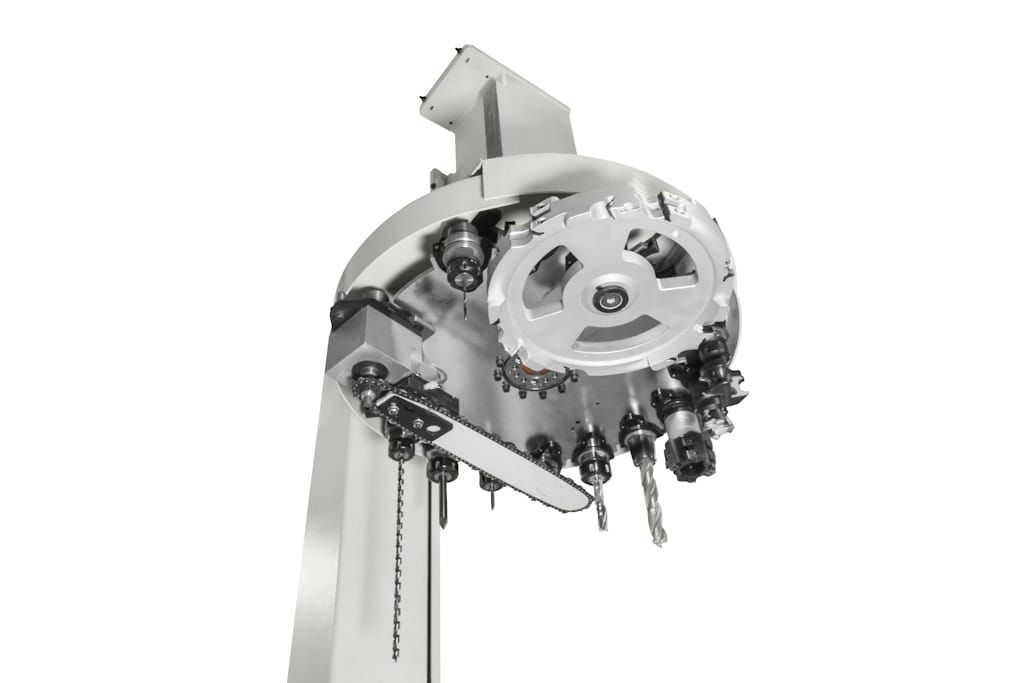

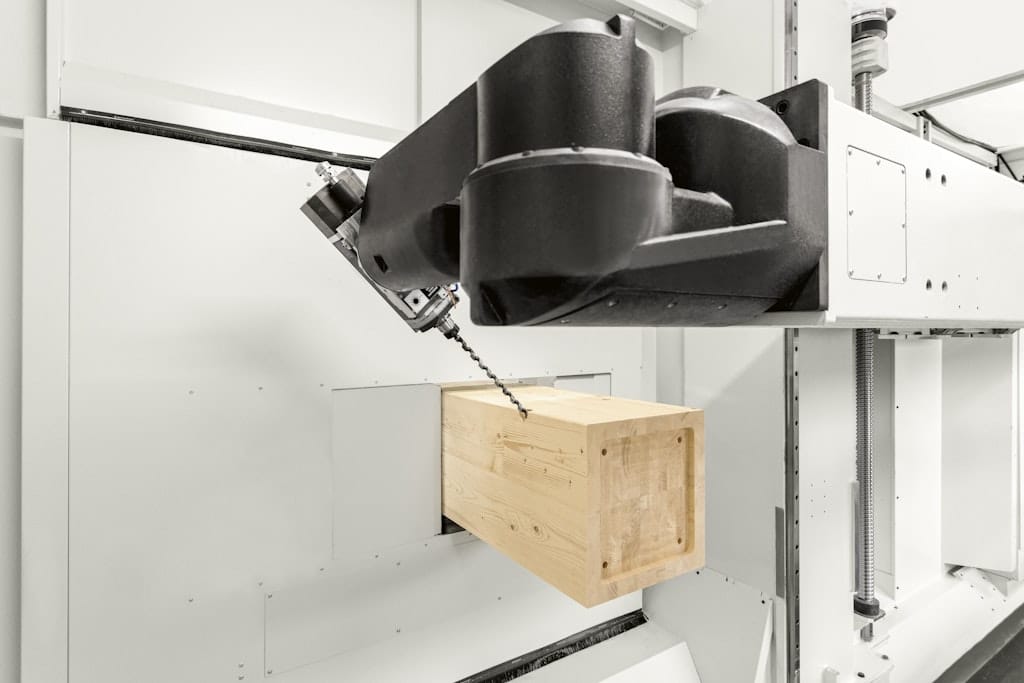

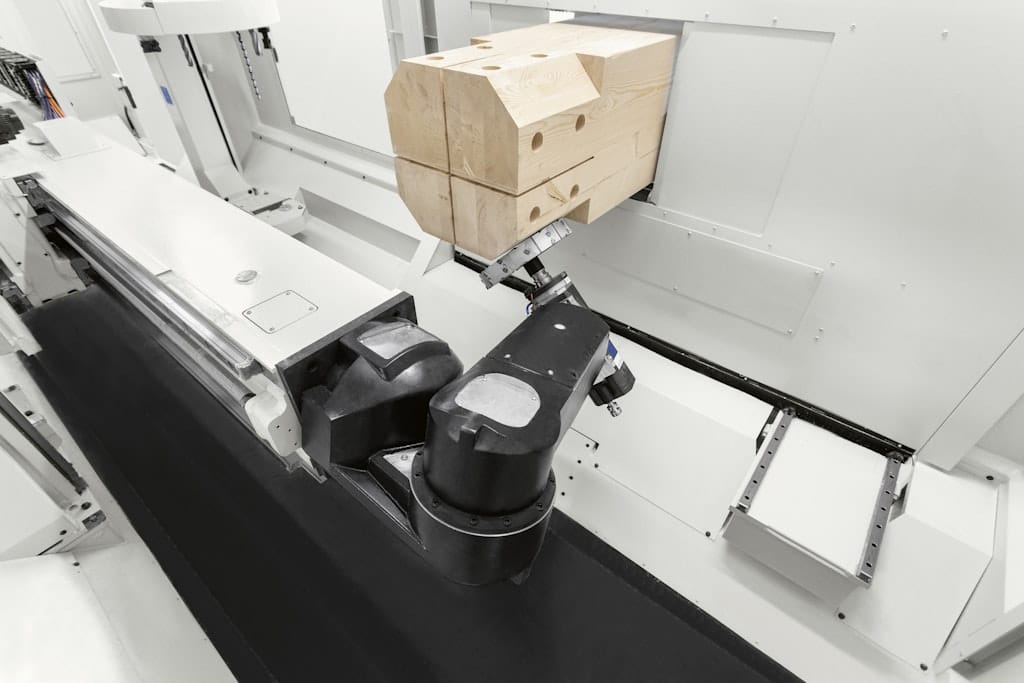

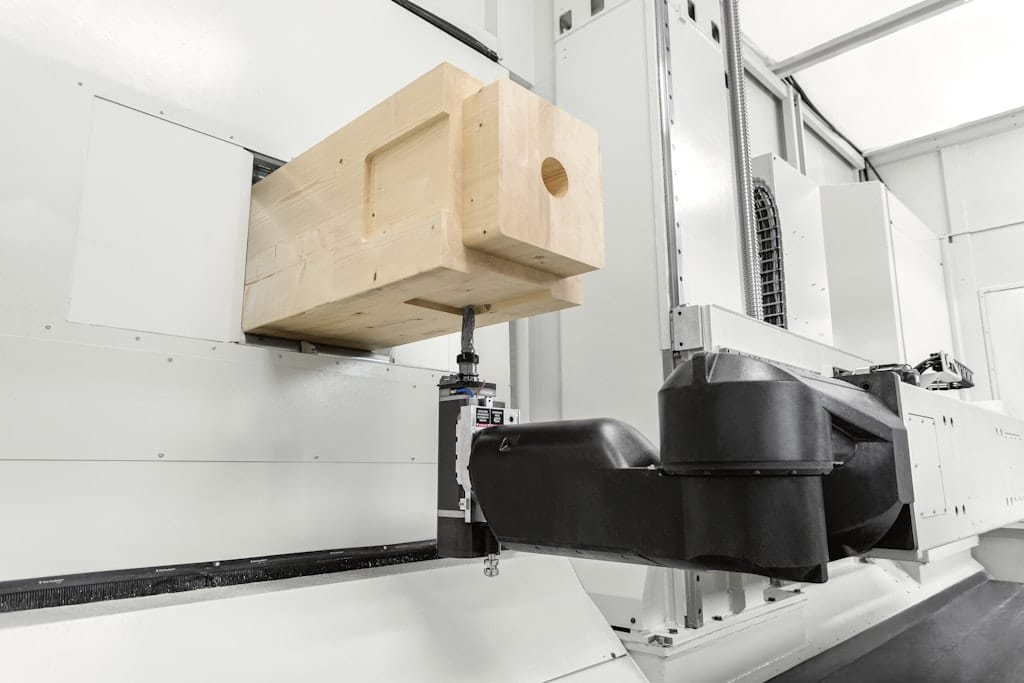

| Main operating unit | ||
| Axes | N° | 6 |
| Power max. (S1) | kW | 24 |

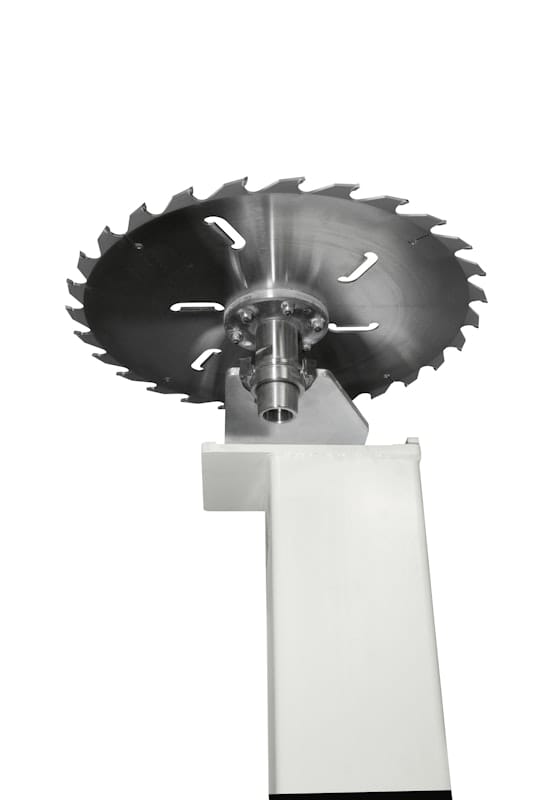

| Sawblade diameter | mm | 500 |
| Compatibility with tool store | yes | |

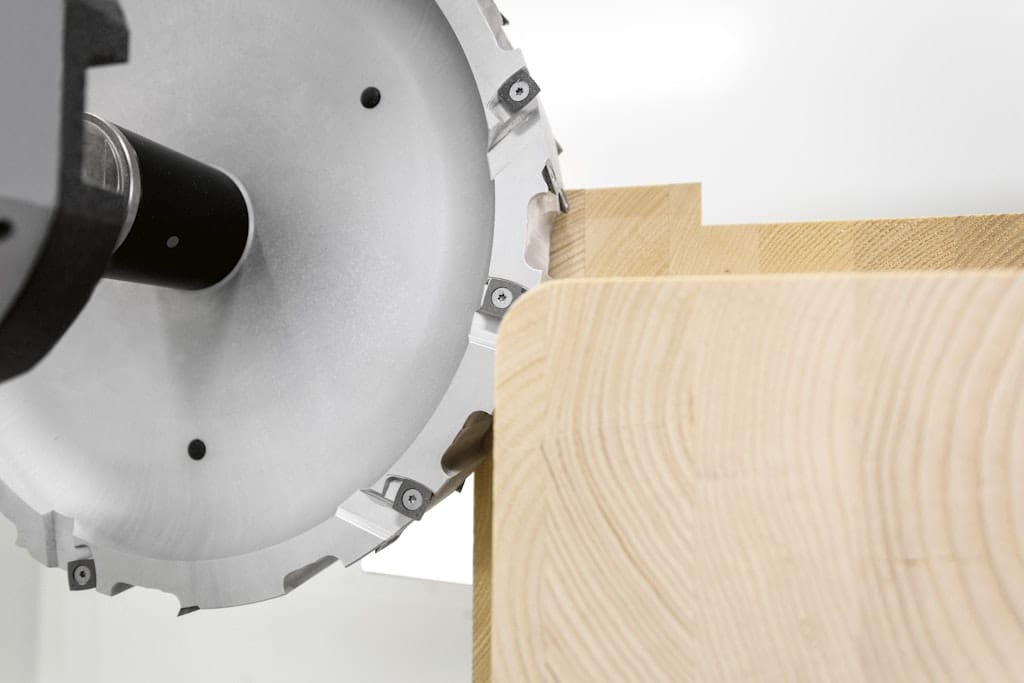

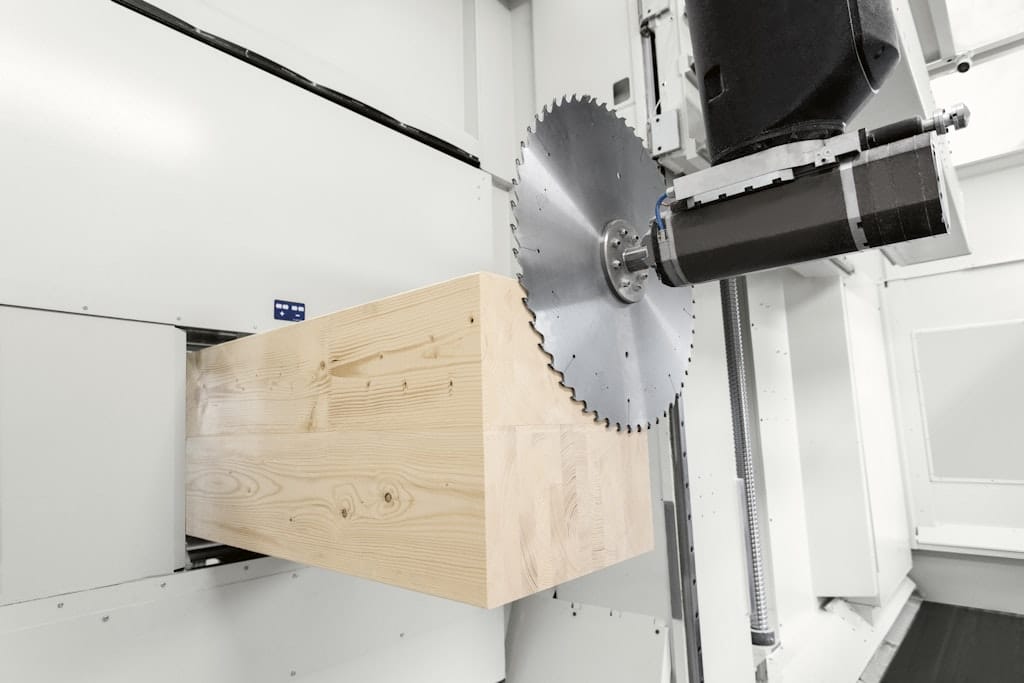

| Sawblade operating unit | ||
| Axes | N° | 5 |
| Power max. (S1) | kW | 18,4 |
| Sawblade diameter | mm | 900 |
| Tool store | ||
| Positions | N° | 18 |
Technical data
| Workpiece dimensions | ||
| Length max. | mm | 9.000 – 13.500 – 19.000 |
| Cross-section max. | mm | 1.250 x 610 |
| Cross-section max. compatible with bar separation cuts | mm | 1.250 x 500 |
| Cross-section min. | mm | 50 x 20 |
| Weight max. | kg | 4.000 |
| Main operating unit | ||
| Axes | N° | 6 |
| Power max. (S1) | kW | 24 |
| Sawblade diameter | mm | 740 |
| compatible with tool store | yes | |
| Tool store | ||
| Positions | N° | 18 |
