AES SAF MODEL STK 10,000 Fine Dust Cabinet Extractor

£5,950.00

The AES SAF STK 10,000 is the perfect choice for anyone looking for a strong yet compact fully featured dust unit and would be typically well suited when connected to a CNC nesting machine. The machine is of multi filter design giving a large filtration area and coupled with the steel enclosure helps contain any emissions of dust compared to open filter dust units.



These machines also have an auto shaker to help clean the filters along with metal dust bins which help contain the dust especially during bag changing.



The filter box is a necessity for CNC nesting machines where small pieces could be extracted and would ordinarily hit the impellor. The filter box has a gauze with a 25mm square mesh design which collects any larger pieces, therefore protecting the fan from damage.



  • Mobile dust collector with flow capacity of 10,000 m3 per hour.
  • Body sheet thickness is 1.2 mm. The propeller and blades are at least 3 mm according to the fan size. The propeller is dynamically and statically balanced.
  • Painted with two colors electrostatic powder paint.
  • In IP55 standards, IE3 high efficiency motor is used. There is a part separator that protects the propeller against balancing and reduces the risk of fire.



We are different; We put an end to fan breakages with the part separator feature.

  • The part separator prevents parts larger than 25x25mm from entering the propeller. This protects the propeller against balancing and ensures it to last longer.
  • Preventing parts of 25x25mm and above from entering the propeller reduces the risk of fire.
  • Metal propeller is used in all product groups.
  • All products are produced in CE standards.
  • All products are design registered.
  • Utility model registration of the part holder has been made. And it is a product unique only to our company.
  • N.B. Unit is 415v 3 phase

Available on back-order

In Stock

Available on back-order

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Product CodeSTK-10000
Capacity10000 m3/h
Motor Power11 kw 15 hp 3000 RPM
Vacuum Velecity40 m/sec
Filter Quantity64 Pcs
Filter SizesQ160 x 940 mm
Filtration Area30,22 m2
Waste Storage3 Pcs Metal Container
Vacuum DiameterQ355 mm
Motor Drive TypeDirect Drive

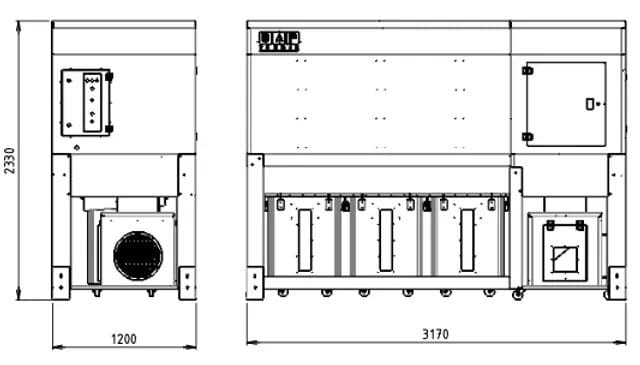

Unit Sizes1200*3170*2330 mm
Unit Weight720 kg
Electrical PanelStar-Delta Starter
