AES SAF MODEL STK 5000 Fine Dust Cabinet Extractor

£3,450.00

The AES SAF Model STK 5000 is a cabinet-style dust extractor that offers exceptional performance and quality that’ll help to create safer, healthier workshops with machinery that runs more effectively and free of dust.

Features include:

  • Mobile dust collector with a flow capacity of 5000 m3 per hour.
  • The body sheet thickness is 1.2 mm. The propeller and blades are at least 3 mm according to the fan size. The propeller is dynamically and statically balanced.
  • Painted with two colours of electrostatic powder paint.
  • In IP55 standards, an IE3 high-efficiency motor is used. There is a part separator that protects the propeller against balancing and reduces the risk of fire.
  • We are different; We put an end to propeller breakages with the part separator feature.
  • The part separator prevents parts larger than 25x25mm from entering the propeller. This protects the propeller against balancing and ensures it lasts longer.
  • Preventing parts of 25x25mm and above from entering the propeller reduces the risk of fire.
  • Metal propeller is used in all product groups.
  • All products are produced by CE standards.
  • All products are design registered.
  • Utility model registration of the part holder has been made. And it is a product unique only to our company.

In Stock

Expected 12/09/2023

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Product CodeSTK-5000
Capacity5000 m3/h
Motor Power5,5 kw 7,5 hp 3000 RPM
Vacuum Velecity32 m/sec
Filter Quantity32 Pcs
Filter SizesQ160 x 940 mm
Filtration Area15.11 m2
Waste Storage2 Pcs Metal Container
Vacuum DiameterQ280 mm
Motor Drive TypeDirect Drive

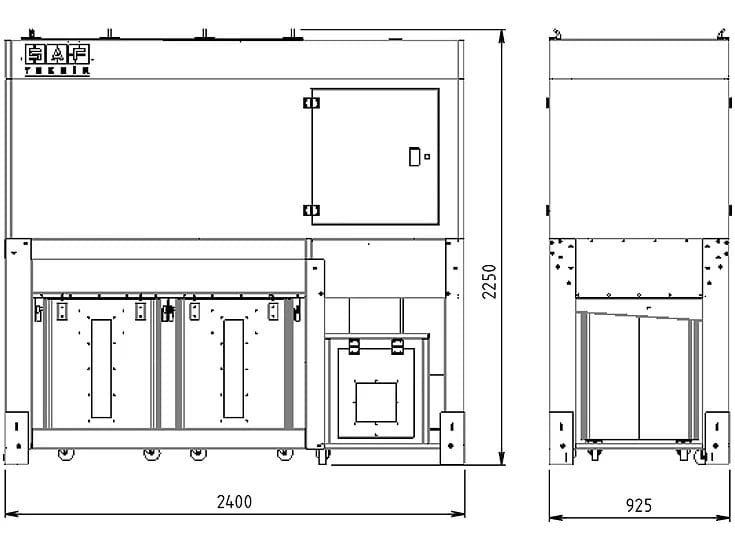

Unit Sizes925*2400*2250 mm
Unit Weight440 kg
Electrical PanelStar-Delta Starter
