POA

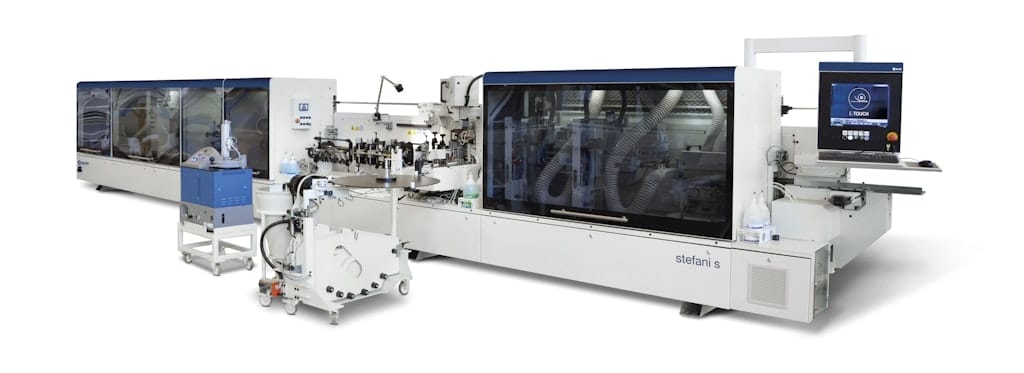

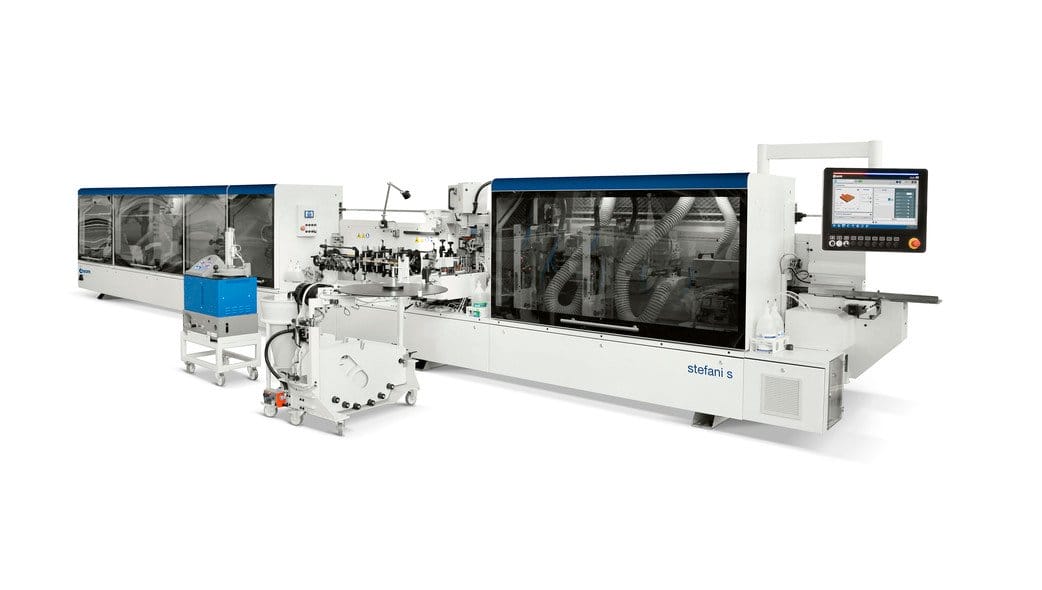

The Stefani S is a single-sided edgebanding machine designed for medium- and large-scale production environments. Known for its precision, reliability, and efficiency, it’s ideal for a variety of materials such as plastic, wood, laminate, and even aluminium edges. The Stefani S offers a complete range of machining operations, enabling diversified industrial production at reduced costs.
Modularity
The Stefani S is highly customizable and can be tailored to meet specific customer requirements, whether for traditional straight panel machining or soft-forming operations. Its modular design makes it adaptable to various production needs, allowing businesses to optimize their processes for maximum efficiency.
Integration
This machine integrates seamlessly into edgebanding cells, with options for panel return automation, manual or semi-automatic panel insertion, and automatic panel loading. Additionally, it can be incorporated into a production line with other machines, enhancing overall workflow and productivity.
Advanced Technology
Stefani S incorporates some of the most advanced technologies available in the market. Features like AirFusion+, SGP glue pot, ZERO LOCK, and NESTING LOCK ensure the highest quality finishes with consistent and reliable results. These innovative technologies contribute to the precision and durability of the finished products, ensuring that every edge is clean and seamless.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
Max working speed | m/min | 25 (30 opt) |
Coil edge thickness | mm | 0.3-3 |
Pre-cut strip thickness | mm | 0.4-1 |
Solid wood thickness | mm | 25 |
Panel thickness | mm | 10 – 60 (80 opt) |
PANEL DIMENSIONS WITH COIL EDGE | ||
Min/max panel length | mm | 135 (125 opt)-3200 |
Min/max panel width | mm | 95 (55 opt)-1200 |
Pneumatic system | MPa | 6 |
Technology for edge application | EVA, PUR, EVA+PUR AirFusion+ SLIM LINE |
