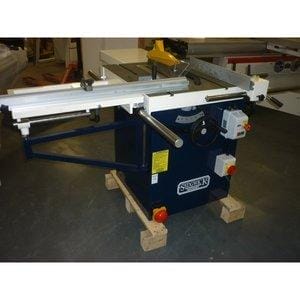

• TA315 Tilting Arbor Sawbench from Sedgwick

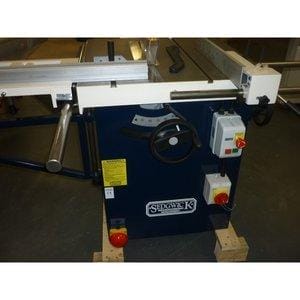

  • Component of the Sedgwick TA315 Tilting Arbor Sawbench

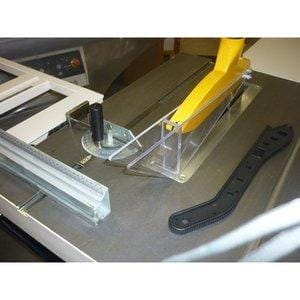

  • Component of the Sedgwick TA315 Tilting Arbor Sawbench

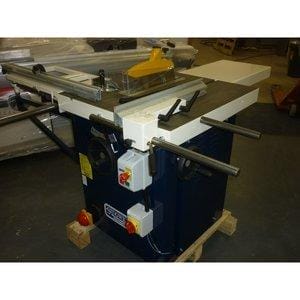

  • Component of the Sedgwick TA315 Tilting Arbor Sawbench

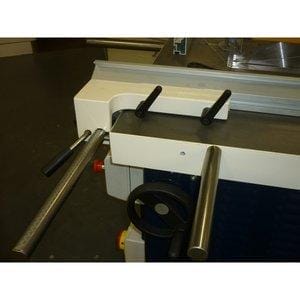

  • Sliding table of the Sedgwick TA315 Tilting Arbor Sawbench

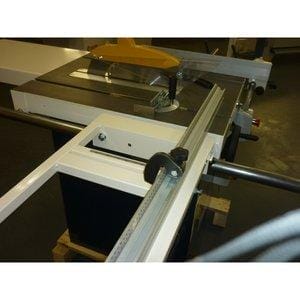

  • Component of the Sedgwick TA315 Tilting Arbor Sawbench

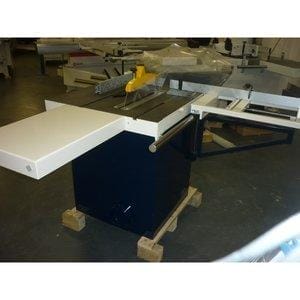

  • Component of the Sedgwick TA315 Tilting Arbor Sawbench

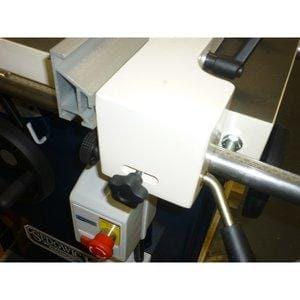

  • Component of the Sedgwick TA315 Tilting Arbor Sawbench
  • Component of the Sedgwick TA315 Tilting Arbor Sawbench
  • Component of the Sedgwick TA315 Tilting Arbor Sawbench

Sedgwick TA315 Tilting Arbor Sawbench

The Sedgwick TA315 Tilting Arbor Sawbench is a British-made cast iron saw bench that stands as the epitome of great value for money.

The large, abrasion-proof cast iron table is precision planed, minimizing the friction. Vibration is absorbed by the grey iron casting. And the saw will function reliably – day in and day out; thanks to the powerful, yet quiet 4hp induction motor.

The cast iron rip fence slides freely along its graduated rail and locks in rigidly. The well-positioned handwheels allow for the precise adjustment of height and tilt. Additionally, complex, compound angles are easily executable via the mitre slots on either side of the main blade.

SKU New-Sedgwick-TA315-Tilting-Arbor-Sawbench Categories ,

£3,295.00

+VAT

Out of stock

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The Sedgwick TA315 Tilting Arbor Sawbench is a British-made cast iron saw bench that stands as the epitome of great value for money.

The large, abrasion-proof cast iron table is precision planed, minimizing the friction. Vibration is absorbed by the grey iron casting. And the saw will function reliably – day in and day out; thanks to the powerful, yet quiet 4hp induction motor.

The cast iron rip fence slides freely along its graduated rail and locks in rigidly. The well-positioned handwheels allow for the precise adjustment of height and tilt. Additionally, complex, compound angles are easily executable via the mitre slots on either side of the main blade.

The Sedgwick TA315 Tilting Arbor Sawbench is a British-made cast iron saw bench that stands as the epitome of great value for money.

The large, abrasion-proof cast iron table is precision planed, minimizing the friction. Vibration is absorbed by the grey iron casting. And the saw will function reliably – day in and day out; thanks to the powerful, yet quiet 4hp induction motor.

The cast iron rip fence slides freely along its graduated rail and locks in rigidly. The well-positioned handwheels allow for the precise adjustment of height and tilt. Additionally, complex, compound angles are easily executable via the mitre slots on either side of the main blade.

Specifications

New Sedgwick TA315 Tilting Arbor Saw Bench

CE Conformity

Phase 3ph

Available In Single Phase £110.00 extra cost

Max. Cutting Height At 90° 105mm (315mm Blade)

Blade Tilt (Degrees) 90-45° Max.

Cutting Height At 45° 76mm

Blade Lift & Tilt Manual

Rip Fence Capacity 610mm

Cross-cut Capacity 620mm

Main Motor Power 3KW (4HP)

Main Blade Rotation Speed (RPM) 3700

Basic Machine Weight 345kg



  • Maximum saw blade diameter 315mm
  •  30mm bore, 14mm pin @ 25mm ctrs
  • Maximum depth of cut 105mm @ 90 degrees
  •  76mm @ 45 degrees
  • Spindle speed 3700rpm
  • Tilting blade 0 – 45 degrees
  • Motor power 4hp
  • Size of main table 800 x 750mm
  • Height of table 850mm
  • Distance saw to fence 610mm
  • Sliding table size 600 x 350mm
  • Distance saw to crosscut fence 620mm
  • Dust extraction outlet to base 150mm
  • Dust extraction outlet to guard 50mm
  • Total air volume required 1445cmh
  • Weight of machine 325kg with standard table
  • Weight of machine 466kg with panel sizing table
  • Machine equipped as standard with:
  • tct saw blade;
  • CE regulations to European standards;
  • emergency kick-switch
  • Optional accessories:
  • Panel sizing table
  • Table size 950 x 1000mm
  • Distance saw to crosscut fence 1220mm
  • Weight of panel sizing table 95kg
  • Right hand extension table
  • Table size 800 x 600mm
  • Distance saw to rip fence 1220mm
  • Weight of right hand
  • extension table 25kg
  • Rear take-off table
  • Table size 800 x 700mm
  • Weight of rear take-off table 15kg
  • Recommended accessories:
  • SW3152430 – Spare tct saw blade
  • SW3154830 – Spare tct saw blade

Specifications

New Sedgwick TA315 Tilting Arbor Saw Bench

CE Conformity

Phase 3ph

Available In Single Phase £110.00 extra cost

Max. Cutting Height At 90° 105mm (315mm Blade)

Blade Tilt (Degrees) 90-45° Max.

Cutting Height At 45° 76mm

Blade Lift & Tilt Manual

Rip Fence Capacity 610mm

Cross-cut Capacity 620mm

Main Motor Power 3KW (4HP)

Main Blade Rotation Speed (RPM) 3700

Basic Machine Weight 345kg



  • Maximum saw blade diameter 315mm
  •  30mm bore, 14mm pin @ 25mm ctrs
  • Maximum depth of cut 105mm @ 90 degrees
  •  76mm @ 45 degrees
  • Spindle speed 3700rpm
  • Tilting blade 0 – 45 degrees
  • Motor power 4hp
  • Size of main table 800 x 750mm
  • Height of table 850mm
  • Distance saw to fence 610mm
  • Sliding table size 600 x 350mm
  • Distance saw to crosscut fence 620mm
  • Dust extraction outlet to base 150mm
  • Dust extraction outlet to guard 50mm
  • Total air volume required 1445cmh
  • Weight of machine 325kg with standard table
  • Weight of machine 466kg with panel sizing table
  • Machine equipped as standard with:
  • tct saw blade;
  • CE regulations to European standards;
  • emergency kick-switch
  • Optional accessories:
  • Panel sizing table
  • Table size 950 x 1000mm
  • Distance saw to crosscut fence 1220mm
  • Weight of panel sizing table 95kg
  • Right hand extension table
  • Table size 800 x 600mm
  • Distance saw to rip fence 1220mm
  • Weight of right hand
  • extension table 25kg
  • Rear take-off table
  • Table size 800 x 700mm
  • Weight of rear take-off table 15kg
  • Recommended accessories:
  • SW3152430 – Spare tct saw blade
  • SW3154830 – Spare tct saw blade
