Minimax Model SC4E 2.6m Panel Saw

£6,499.00

With a solid cast iron saw unit, double trunnions and an independently adjustable scoring unit, the Minimax Model SC4E 2.6m Panel saw is the ideal panel saw for demanding woodworkers, craftsmen and serious hobbyists.

For easy use and a less labour-intensive operating process, the large squaring frame and idle roller make for the straightforward, simple loading of panels. Panels of up to 3200 x 3200 mm can be squared thanks to the telescopic squaring fence with two reversible stops.

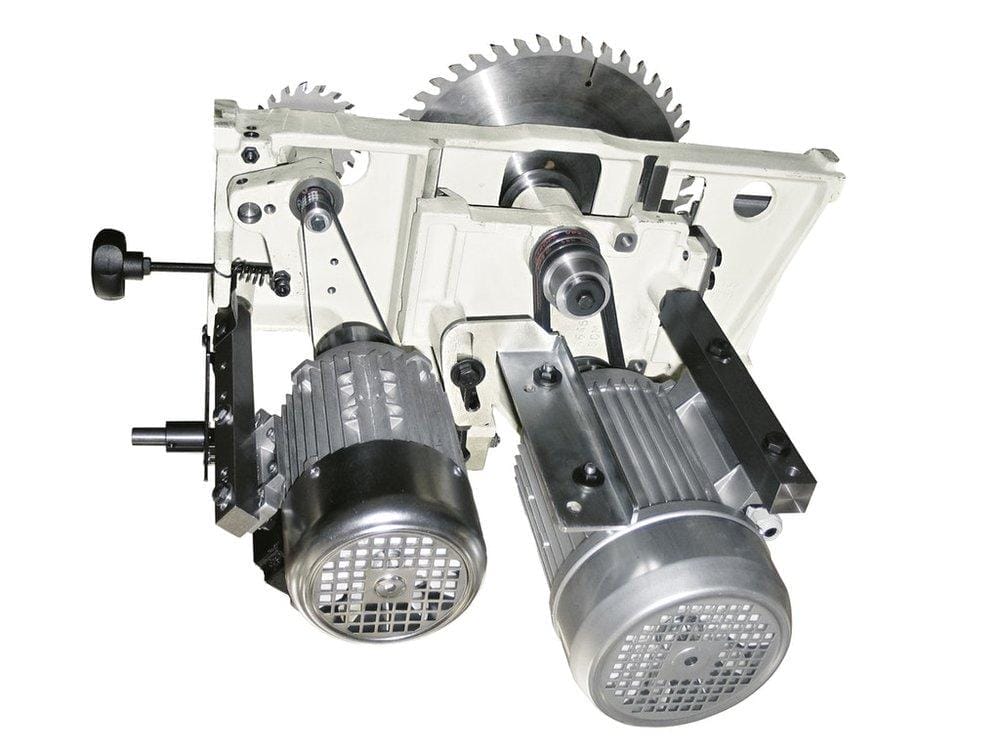

Well supported by two lateral supports is the new saw unit closed loop structure which is made of heavy cast iron. The super-robust saw unit grants high levels of precision when cutting. With the optional scoring blade equipped, perfect cutting, even on veneered panels is guaranteed.

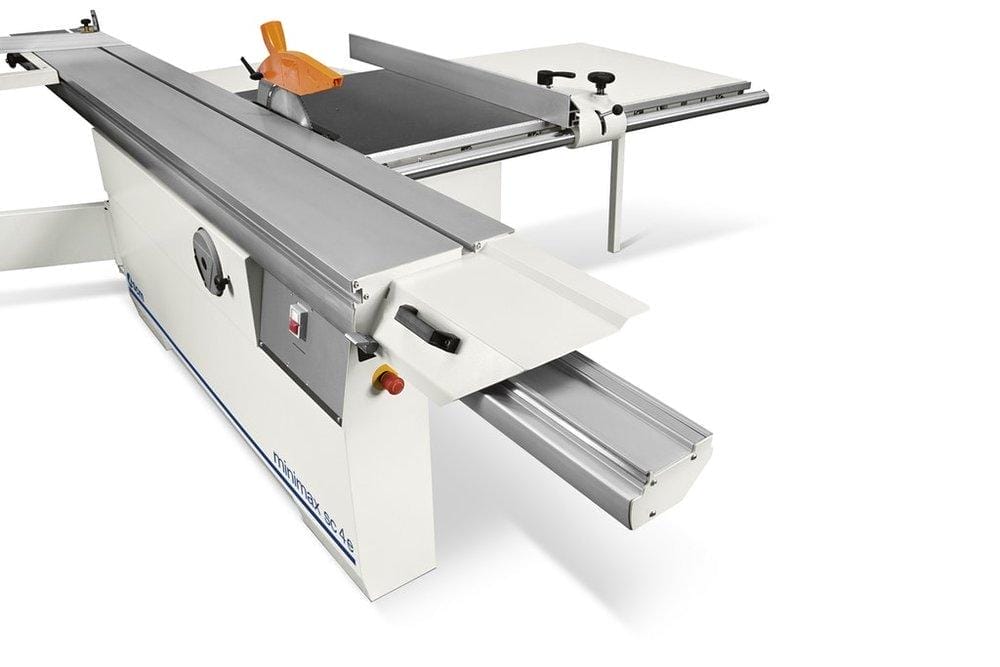

The 360mm wide sliding table delivers optimal support for larger workpieces. Instead of using glue to secure the guides, aluminium riveting is used for extra smoothness and precision.

Optional features:

  • Scoring blade (either with belt transmission from the main motor or with a 0.75hp independent motor.

Browse our other panel saws here.

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

R0.21.66 MINIMAX SC 4E CE VERSION
93.07.72 VOLTAGE 400 EU
93.12.05 FREQUENCY 50 Hz
58.04.73 VERSION WITH MAXIMUM SQUARING STROKE 2600 mm
58.02.60 BELT DRIVEN SCORING UNIT
58.02.04 OVERHEAD BLADE PROTECTION (1270 mm CUTTING WIDTH)
28.01.43 CUTTING WIDTH WITH PARALLEL FENCE 1270 mm

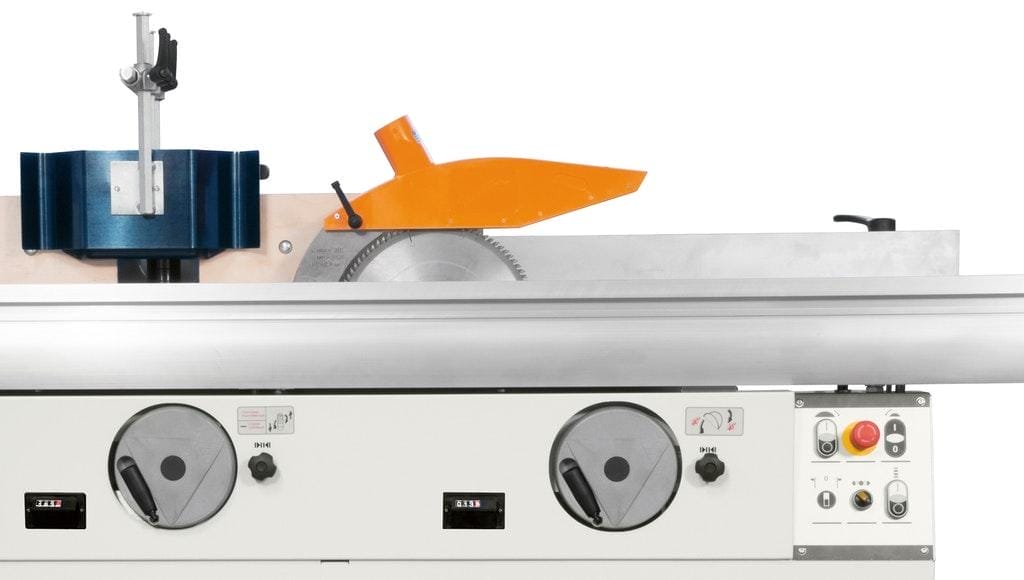

58.04.81 NUMERICAL READOUT FOR VISUALISATION OF THE SAW UNIT TILTING
58.02.63 THREE-PHASE MOTOR 7 KW (9,5HP) 50HZ
58.02.64 SELFBRAKING MOTOR ON SAW BLADE
