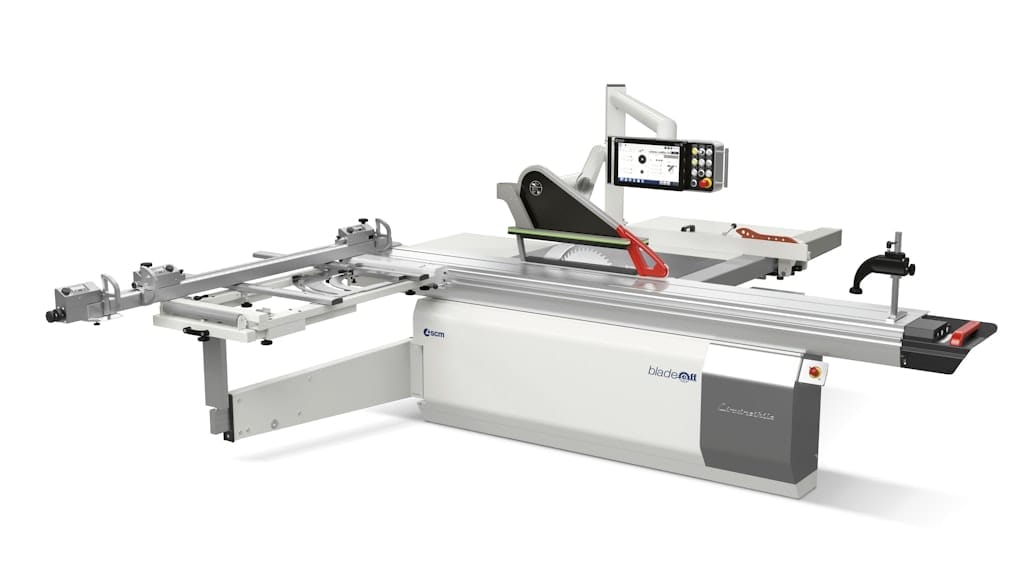

The SCM Blade Off System is an innovative safety solution designed to prevent accidental contact with the saw blade, ensuring optimal protection for operators in all working environments. Utilizing smart sensors, this system detects the human body and triggers a response before the operator gets too close to the blade, ensuring the danger zone is continuously monitored and protected.
Smart Safety Solution
The Blade Off system activates automatically regardless of the operator’s hand position or any other part of the body within the danger zone. It is engineered to function perfectly even when the operator wears personal protective equipment, including gloves. This ensures safety at all times, even during high feed speeds of up to 2 m/s.
Rapid and Non-Destructive Activation
The system excludes the blade in a matter of milliseconds, preventing contact between the blade’s cutting edge and the human body. The response is repeatable, reliable, and non-destructive, maintaining the machine’s accuracy and performance after any intervention.
Safety and Ergonomics
The Blade Off system is designed to work in total safety while maintaining freedom of movement. The sleek and minimal design ensures that safety features are incorporated without negatively impacting the machine’s overall dimensions or aesthetics.
Repeatability and Long-Term Reliability
This advanced system can be quickly reset without compromising the machine’s overall quality or long-term performance, ensuring it remains a dependable safety feature for the operator.
Expanded Protection

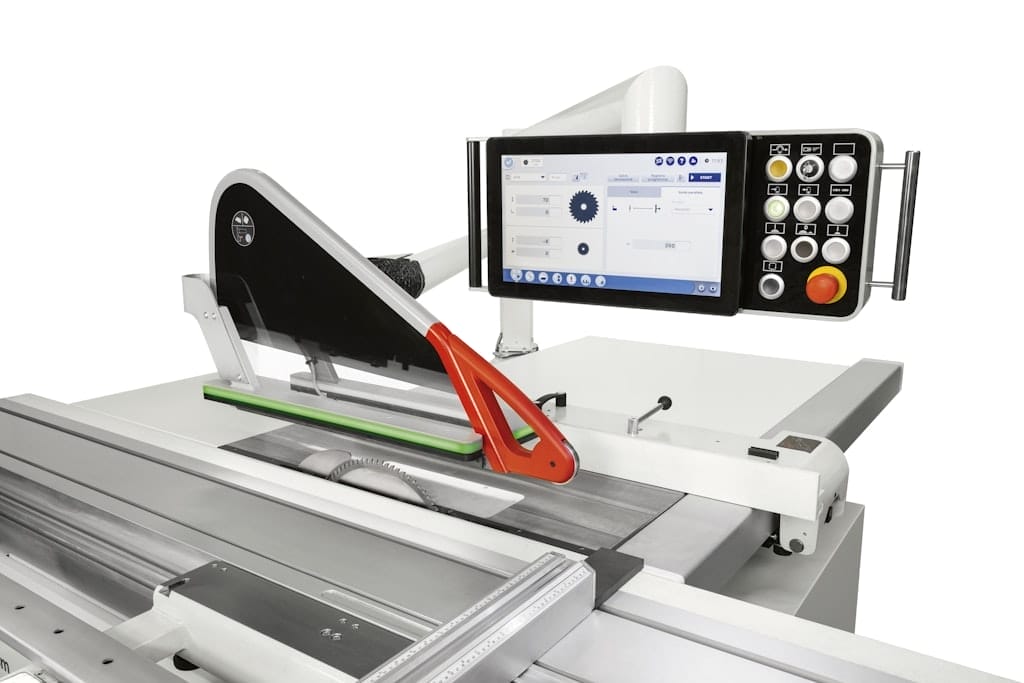

The system offers comprehensive protection around the blade, covering the work-piece entrance and side areas. This extended coverage prevents any potential contact due to inappropriate or accidental movements, providing added peace of mind for operators.
The SCM Blade Off System represents the future of safety in circular saws, offering an intelligent, reliable, and ergonomic solution that enhances operator protection while maintaining machine efficiency and performance.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
| L’invincibile | si 3 blade off | |

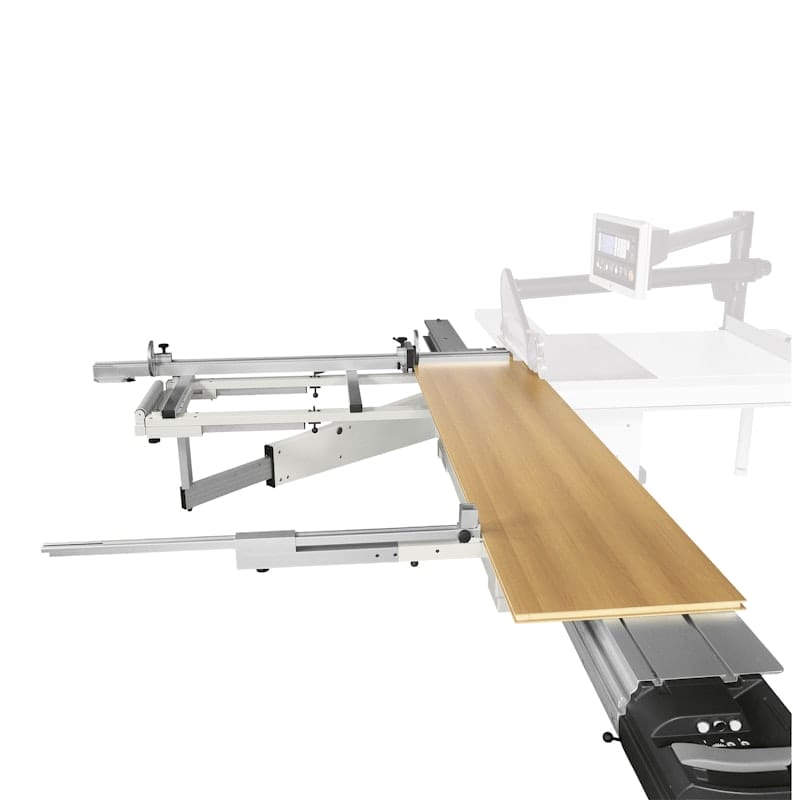

| Squaring capacity with 2200 mm carriage | mm | 2200 x 3200 |
| Squaring capacity with 3200 mm carriage | mm | 3200 x 3200 |
| Squaring capacity with 3800 mm carriage | mm | 3800 x 3200 |

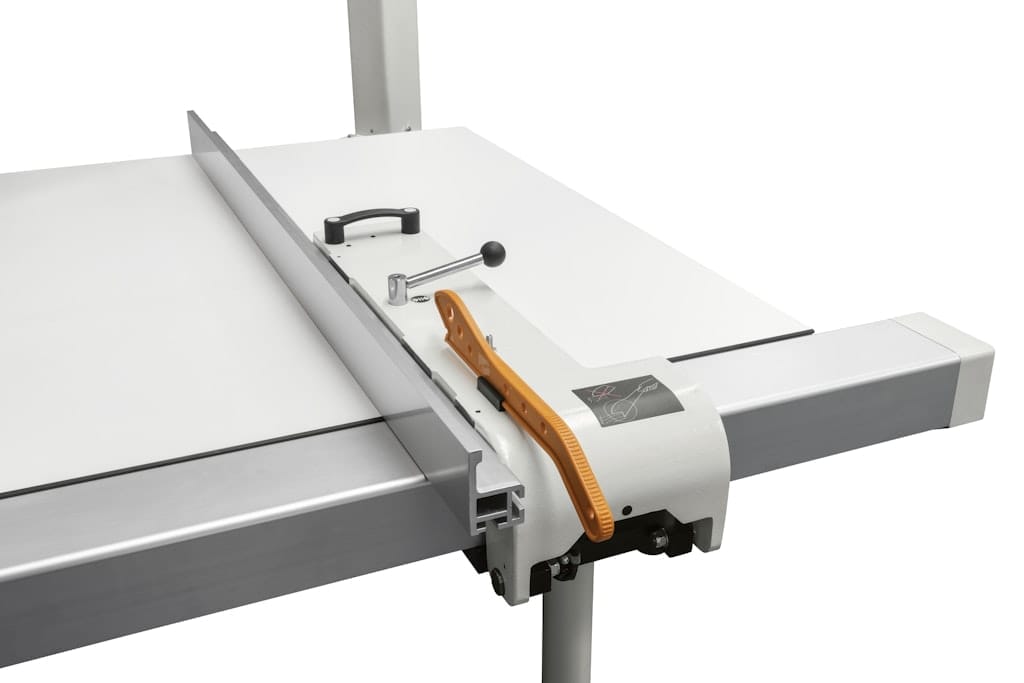

| Cutting width on the rip fence | mm | 1500 |
| Max. cutting height at 90° | mm | 120 |
| Max. cutting height at 45° | mm | 89 |
| Main blade rotating speed (with standard inverter) | rpm | 3000 ÷ 5000 |
| Scoring blade rotating speed | rpm | 8500 |
| Main blade motor power | kW/Hz | 9(11) / 50(60) |
| Scoring blade motor power | kW | 1,3 |
