SCM Nova Si40 Programmable Sliding Table Panel Saw

With SCM’s high-quality engineering, the SCM Nova Si40 Programmable Sliding Table Panel Saw is a durable, powerful machine capable of high-precision cutting. With optional features available, the machine is adaptable and flexible.

The closed-loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.

With sliding bearings running on hardened steel guides, smooth movement during operation is guaranteed. The wide section of the carriage and its closed reticular geometry provides additional rigidity and minimum deflection. Thanks to the dedicated gearbox, fully protected from dust – ease of use is inherent with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel.

With the 3.2m panel saw – machining is more flexible, more efficient and more productive.

Categories ,

POA

+VAT

Request Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

With SCM’s high-quality engineering, the SCM Nova Si40 Programmable Sliding Table Panel Saw is a durable, powerful machine capable of high-precision cutting. With optional features available, the machine is adaptable and flexible.

The closed-loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.

With sliding bearings running on hardened steel guides, smooth movement during operation is guaranteed. The wide section of the carriage and its closed reticular geometry provides additional rigidity and minimum deflection. Thanks to the dedicated gearbox, fully protected from dust – ease of use is inherent with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel.

With the 3.2m panel saw – machining is more flexible, more efficient and more productive.

With SCM’s high-quality engineering, the SCM Nova Si40 Programmable Sliding Table Panel Saw is a durable, powerful machine capable of high-precision cutting. With optional features available, the machine is adaptable and flexible.

The closed-loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.

With sliding bearings running on hardened steel guides, smooth movement during operation is guaranteed. The wide section of the carriage and its closed reticular geometry provides additional rigidity and minimum deflection. Thanks to the dedicated gearbox, fully protected from dust – ease of use is inherent with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel.

With the 3.2m panel saw – machining is more flexible, more efficient and more productive.

Specifications

Max. saw blade diameter 400mm
Max. sawblade projection from table at 90°/45° 138/98mm
Cutting width on parallel fence 1270mm
Squaring stroke 3200mm
Three-phase motor 7.5hp
Ready 3 Electronic control.
Powered and programmable rip fence 1270mm
Powered and programmed movement of blade rise, fall and tilting

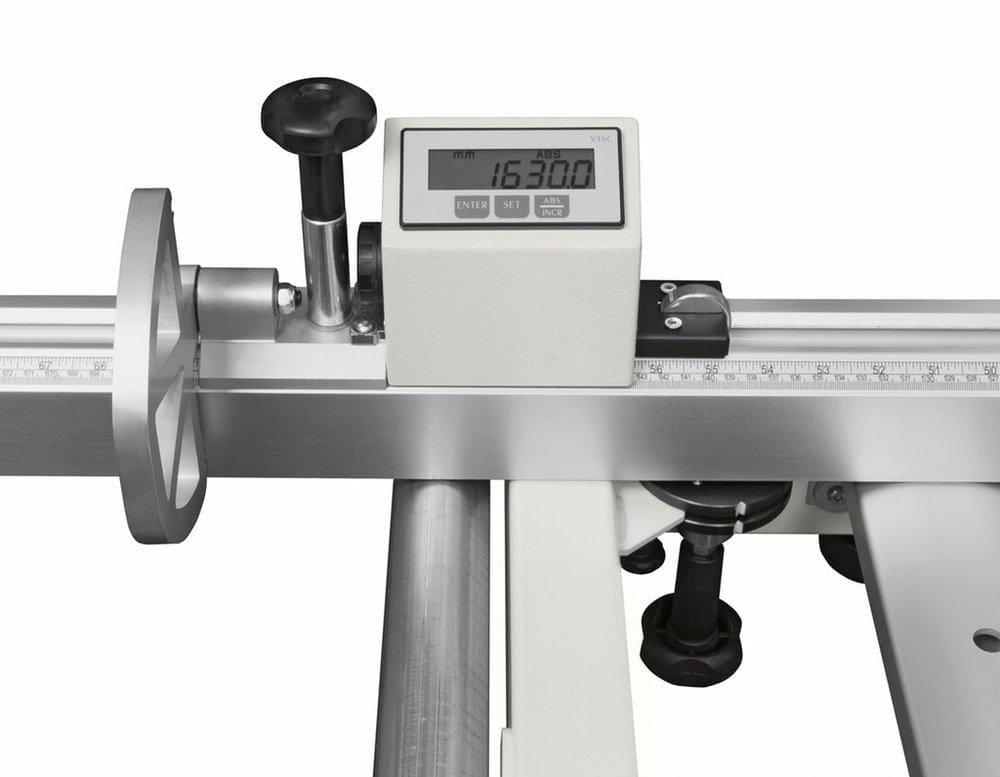

2 x LCD readouts for stops position on crosscut fence

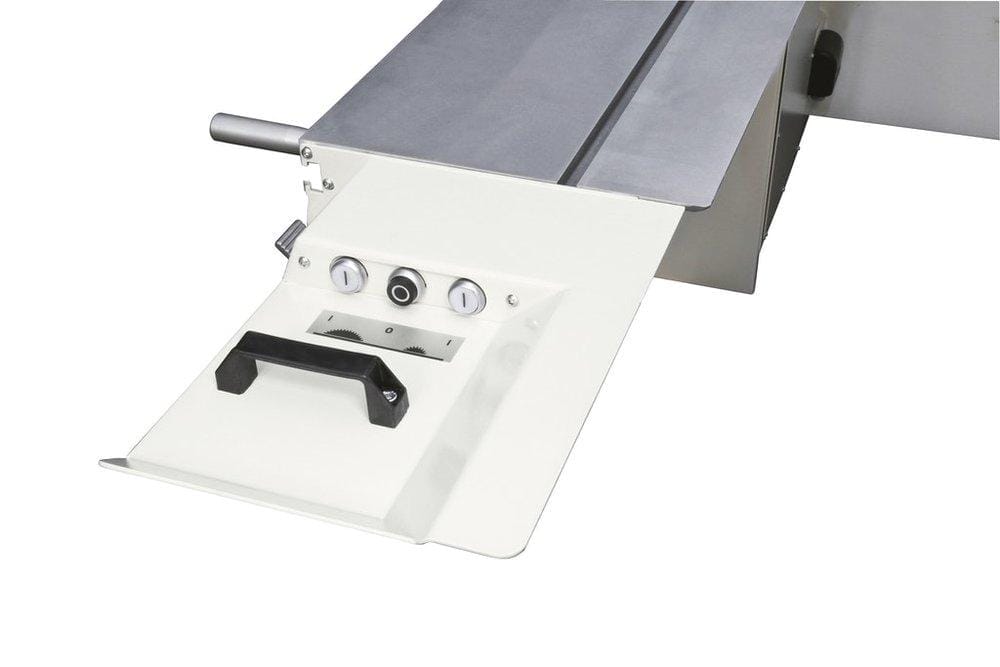

Start/Stop buttons integrated in sliding carriage

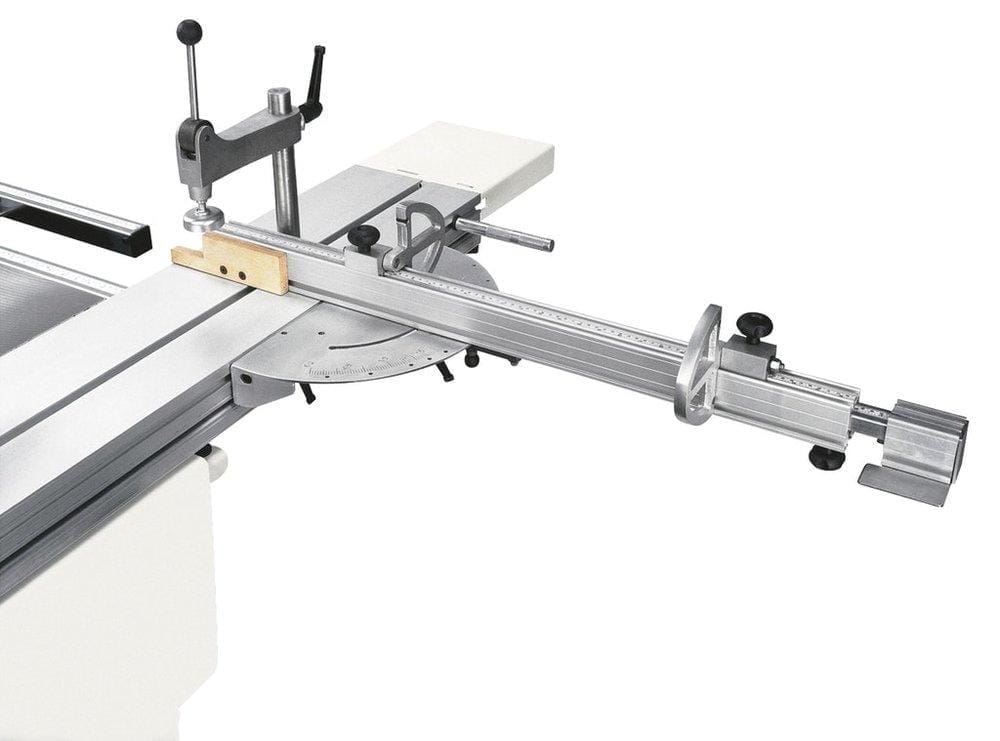

Angular cutting attachment

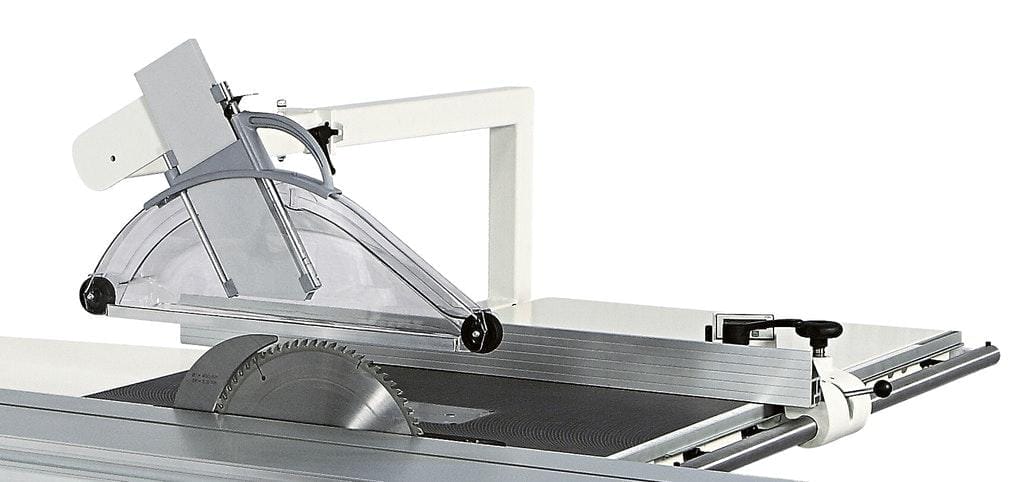

Overhead saw guard

Specifications

Max. saw blade diameter 400mm
Max. sawblade projection from table at 90°/45° 138/98mm
Cutting width on parallel fence 1270mm
Squaring stroke 3200mm
Three-phase motor 7.5hp
Ready 3 Electronic control.
Powered and programmable rip fence 1270mm
Powered and programmed movement of blade rise, fall and tilting
2 x LCD readouts for stops position on crosscut fence
Start/Stop buttons integrated in sliding carriage
Angular cutting attachment
Overhead saw guard
