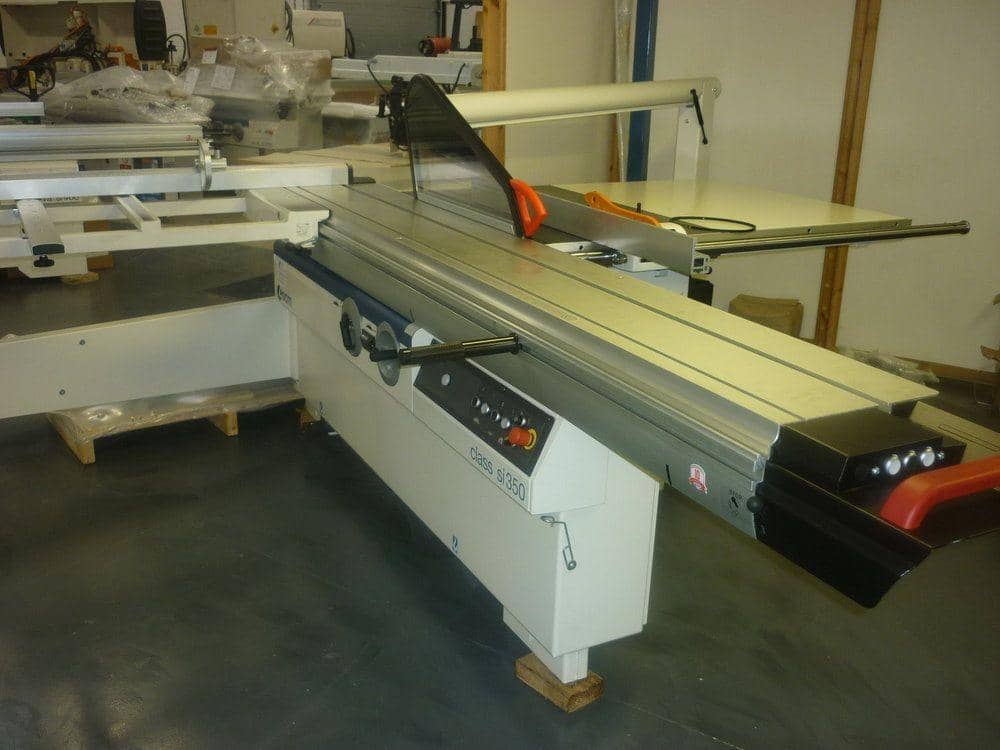

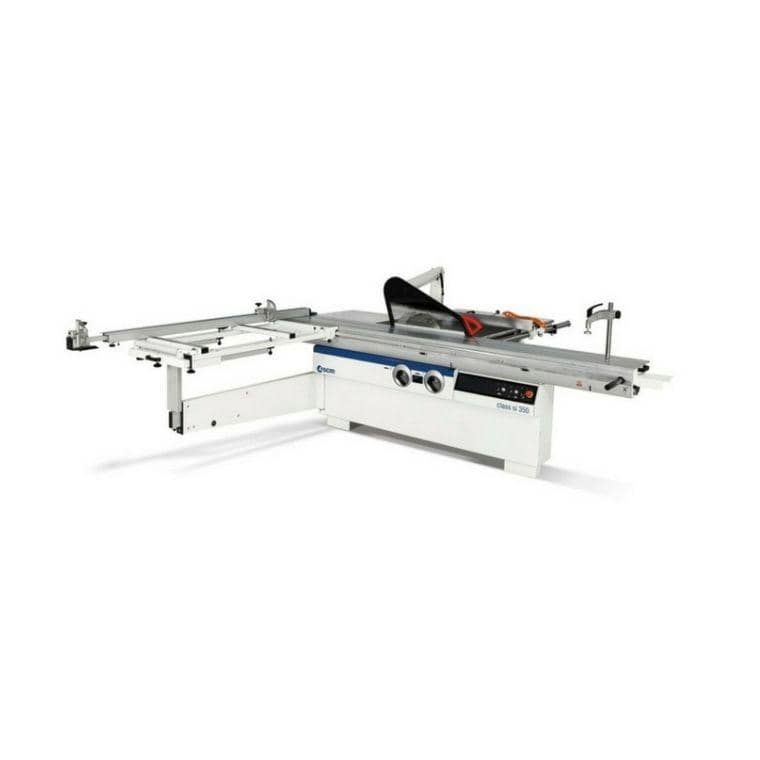

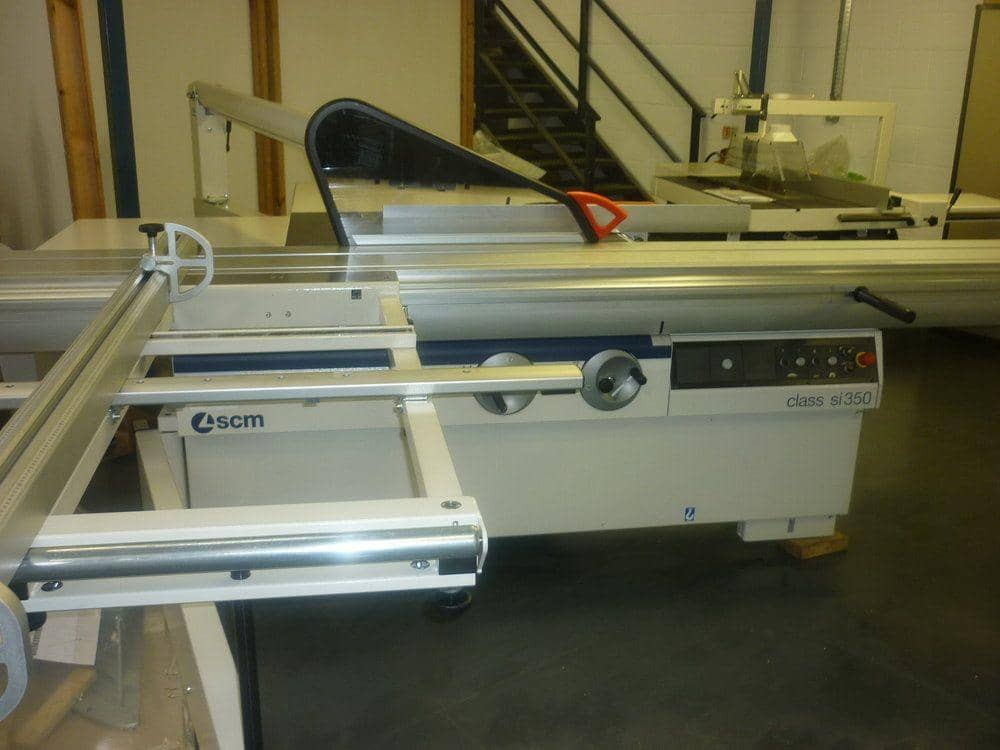

SCM SI350 Class 3.2m Sliding Table Panel Saw
The SCM SI350 Class 3.2m Sliding Table Panel Saw is the optimal choice for outstanding precision, great reliability and safe, ergonomic operating.
A high degree of torsional rigidity makes for the absence of disruptive vibrations that hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.
Thanks to the dedicated gearbox, fully protected from dust – ease of use is guaranteed with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel. With the addition of ergonomic mechanical levers, vertical and horizontal adjustments are easily carried out with a high degree of both safety and control.
POA
+VAT
Call 0845 274 3600
for more information
Part Exchange
If you are looking to swap out our older machine for a brand new model? Fill in this short form.
The SCM SI350 Class 3.2m Sliding Table Panel Saw is the optimal choice for outstanding precision, great reliability and safe, ergonomic operating.
A high degree of torsional rigidity makes for the absence of disruptive vibrations that hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.
Thanks to the dedicated gearbox, fully protected from dust – ease of use is guaranteed with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel. With the addition of ergonomic mechanical levers, vertical and horizontal adjustments are easily carried out with a high degree of both safety and control.
The SCM SI350 Class 3.2m Sliding Table Panel Saw is the optimal choice for outstanding precision, great reliability and safe, ergonomic operating.
A high degree of torsional rigidity makes for the absence of disruptive vibrations that hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.
Thanks to the dedicated gearbox, fully protected from dust – ease of use is guaranteed with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel. With the addition of ergonomic mechanical levers, vertical and horizontal adjustments are easily carried out with a high degree of both safety and control.
Specifications
- Lifting & tilting of the saw unit by hand wheels
- Eccentric Clamp

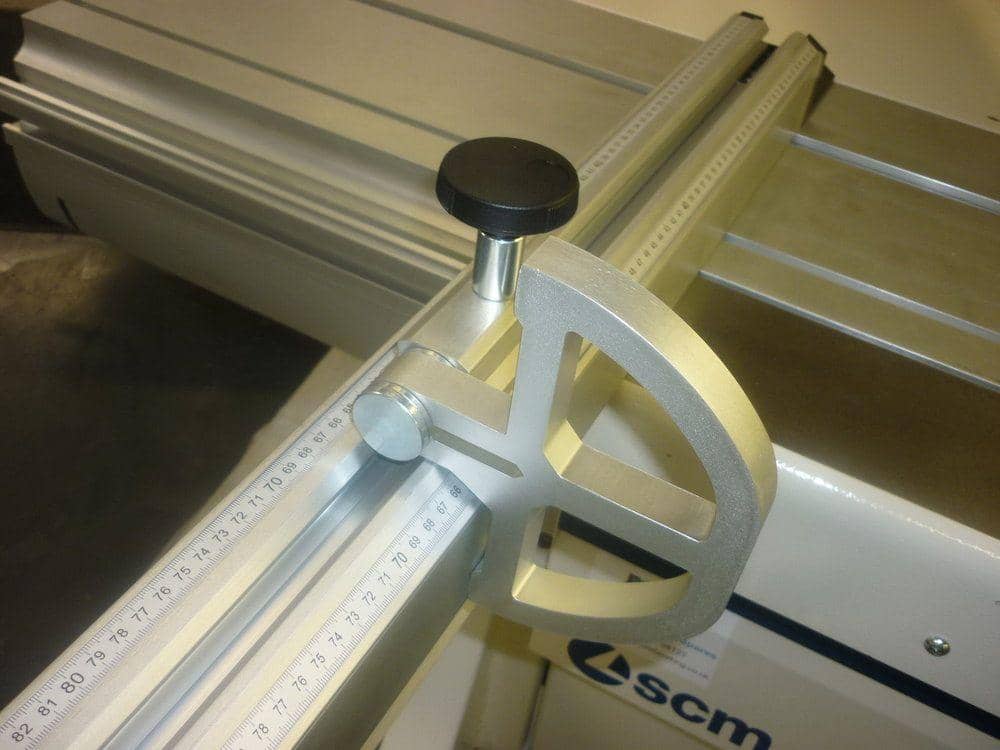

- Squaring Fence
- Outfeed table extensions
- Direct Start of main motor with push buttons
- Independent Powered Scoring Unit

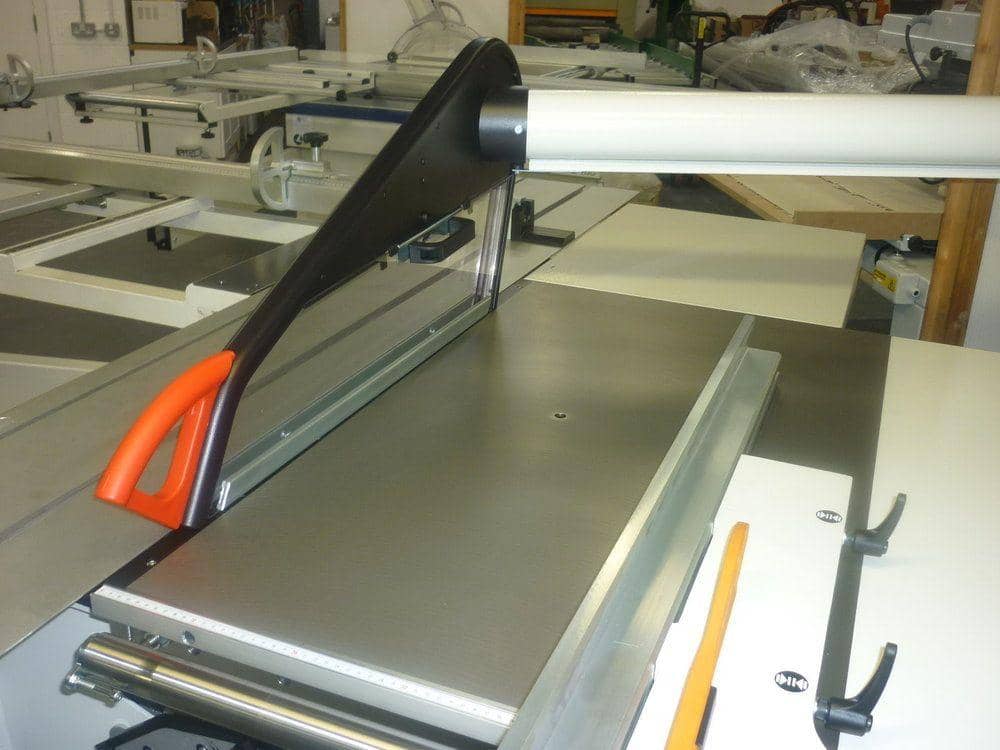

- Overhead Gantry Saw guard
- Rip fence capacity 1270mm (1500mm Option available)
- Max cut height with 350mm blade 118mm
- 5.5Kw (7.5hp) Motor

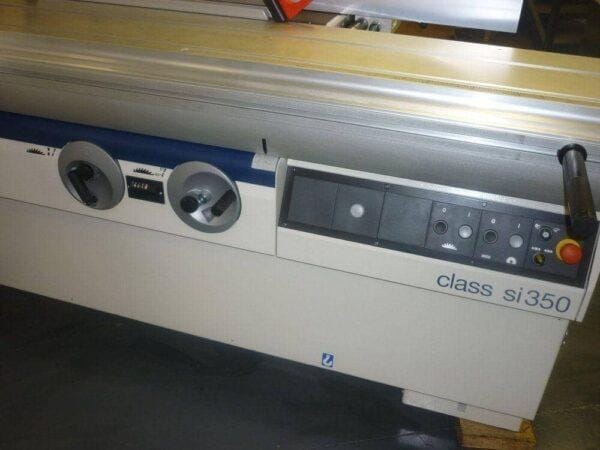

- Motor stop/start buttons integrated in sliding carriage
| Max. saw blade diameter with mounted scorer | mm / inches | 350 / 14 |
| Maximum saw blade projection from table to 90°/45° | mm / inches | 118/81 4.64/3.18 |
| Cutting width on rip fence (Rip capacity) | mm / inches | 1270 / 50 |
| Max. squaring stroke of sliding table saw | mm / inches | 3200 / 126 |
| Three-phase motor | Hp | 11 |
Specifications
- Lifting & tilting of the saw unit by hand wheels
- Eccentric Clamp
- Squaring Fence
- Outfeed table extensions
- Direct Start of main motor with push buttons
- Independent Powered Scoring Unit
- Overhead Gantry Saw guard
- Rip fence capacity 1270mm (1500mm Option available)
- Max cut height with 350mm blade 118mm
- 5.5Kw (7.5hp) Motor
- Motor stop/start buttons integrated in sliding carriage
| Max. saw blade diameter with mounted scorer | mm / inches | 350 / 14 |
| Maximum saw blade projection from table to 90°/45° | mm / inches | 118/81 4.64/3.18 |
| Cutting width on rip fence (Rip capacity) | mm / inches | 1270 / 50 |
| Max. squaring stroke of sliding table saw | mm / inches | 3200 / 126 |
| Three-phase motor | Hp | 11 |
