SCM Profiset 60 Four Head Automatic Throughfeed Planer Moulder

POA

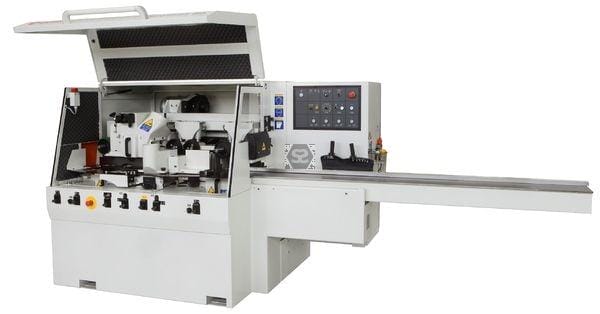

The SCM Profiset 60 Four Head Automatic Throughfeed Planer Moulder is a four-sided planer moulder that grants maximum efficiency with minimum dimensions. A perfect choice for workshops that require efficient, high-quality planing but without the means to buy or accommodate a larger planer moulder that offers full functions.

Cost-effective, safe and efficient, the Profiset 60 makes for the effortless, yet high-quality planing of both small and large quantities of timber – thanks to the quick setting and adjusting action of the heads which makes the changeover from one size to another simple and effortless.

The machine comes complete with the standard resharpenable knife blocks and has the option of both light and heavy planing TERSA disposable knife cutter heads.

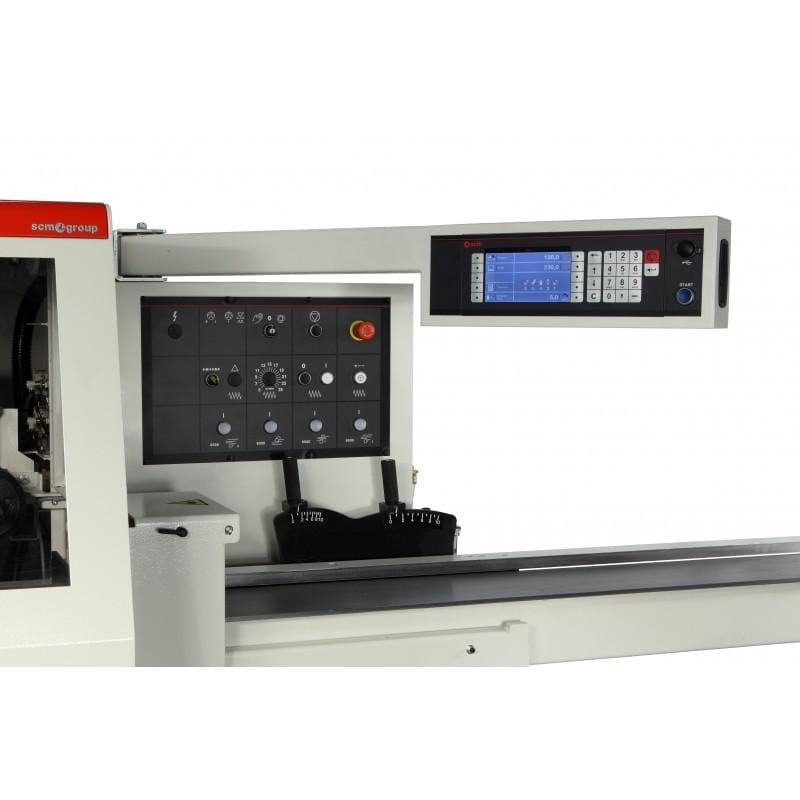

Ease-of-use and a great degree of control are within arms reach of the operator thanks to the ergonomically located control panels. This focus on ergonomics allows for a more efficient operating process and makes for smooth, stable movement of the workpiece.

The addition of electronic controls makes for the automatic positioning of the left vertical spindle and top horizontal spindle. Feed speed can also be programmed and adjusted with the controls which allows for more effective management of the feed speeds.

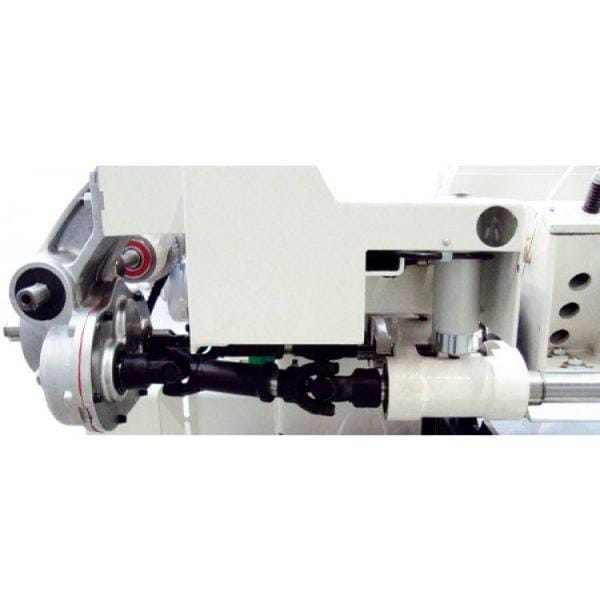

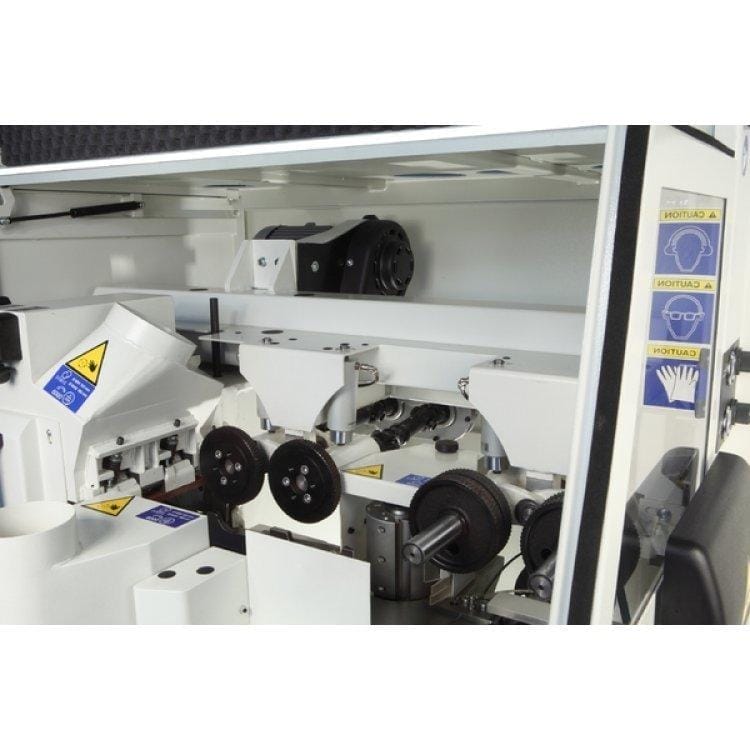

The gearbox feed drive system alongside the cardan joints combines with the pneumatic pressure on the feed rollers. This guarantees excellent quality in performance and ensures a stable, powerful feeding process.

Out of stock

In Stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

  • Capacity 230 x 120mm
  • Increased Motor Power. Bot 7.5hp. R/L Vert 15hp shared, Top 10hp
  • Infeed pre-straightening table 2m
  • Kit to reduce minimum working width to 15mm
  • “SET UP” Quick adjustment system
  • Tersa cutter blocks
  • Variable feed speed 5-25 m/min
  • Pneumatic pressures
  • CE Conformity
  • Quality construction
  • Min/max working width (finished section) mm 25/230
  • Min/max working height (finished section) mm 6/120
  • Feed speed m/min 5÷25
  • Spindles speed 6000rpm
  • Spindles diameter 40mm
  • Min/max cutter heads diam. planer group 120÷140mm
  • Min/max cutter heads diam.
  • vertical spindles length 100÷180mm
  • Min/max cutter heads diam.
  • on top horizontal spindle 125mm
  • Min/max cutter heads diam.
  • on bottom horizontal spindle 100÷180mm
  • Min/max cutter heads diam.
  • universal spindle 100÷180mm
  • Vertical spindles length of 140mm
  • Horizontal spindles length of 250mm
  • Universal spindles length of 240mm
  • Feed rollers diameter 120mm
  • Infeed table length 2000mm
  • Manual pump for table lubrication STD
  • Manual centralised lubrication STD
