Encompassing both the standard functionality of a professional machine and a cost-effective, value-for-money price – the Minimax Model FS30G Planer Thicknesser comes as a neatly designed, compact and incredibly space-efficient table that will fit perfectly even in super-small workshops.

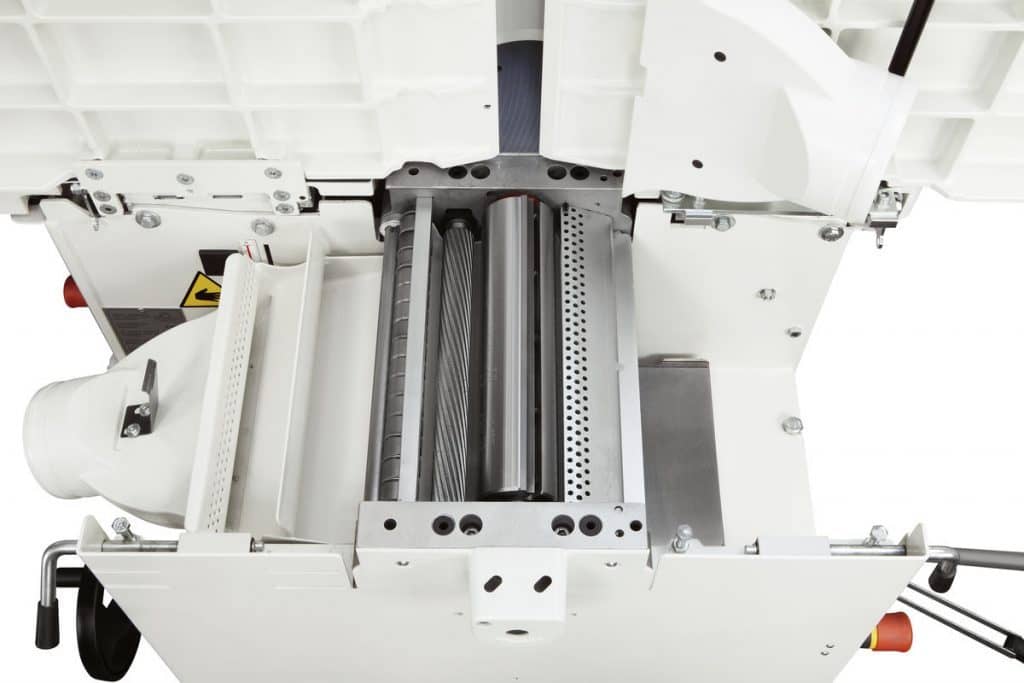

The planer unit includes a cutter block with 2 reusable knives (available as an option is the TERSA disposable knives system with 3 knives and rapid clamping). This range of SCM machines also has saw-planer fences with anodized aluminium extrusion and both support and clamp for fast positioning.
Producing an exceptional finish, the “Xilent” spiral knife has vastly reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips. The longevity of the cutter block has been greatly extended as each cutter has 4 tips that can be rotated into the cutting position when worn.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
Useful working width mm300
Planer shaft diameter / standard number of knives mm / no.62/2
Size of standard knives mm 300 x 25 x 3
Removal max. to the plane mm 3
Total length of flush tops mm 1200
Thickness floor dimensions mm 300 x 450
Advance speed to the thickness m / min 6
Min. Height ÷ max. working to the thickness mm3 ÷ 200
Motor power three-phase starting from kW / Hz1.8 (2.2) / 50 (60)
Working width | mm | 300 |
Cutterblock diameter / no. of standard knives | mm / no. | 62/2 |
Dimension of standard knives | mm | 300 x 25 x 3 |
Max. stock removal | mm | 3 |
Surfacing tables total length | mm | 1200 |
Thicknessing table dimensions | mm | 300 x 450 |
Feed speed on thicknesser | m/min | 6 |
Min. ÷ max. working height on thicknesser | mm | 3 ÷ 200 |
Three-phase motors starting from | HpkW / Hz | 1,8 (2,2) / 50 (60) |
