Minimax Model FS41E Combined Planer Thicknesser

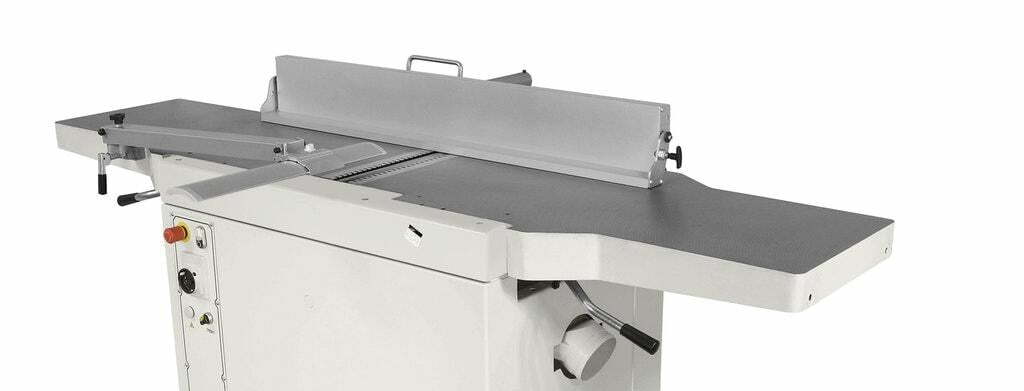

Standing on cast iron supports, the Minimax Model FS41E Combined Planer Thicknesser is a highly durable, highly flexible machine capable of outputting “elite” finishes.

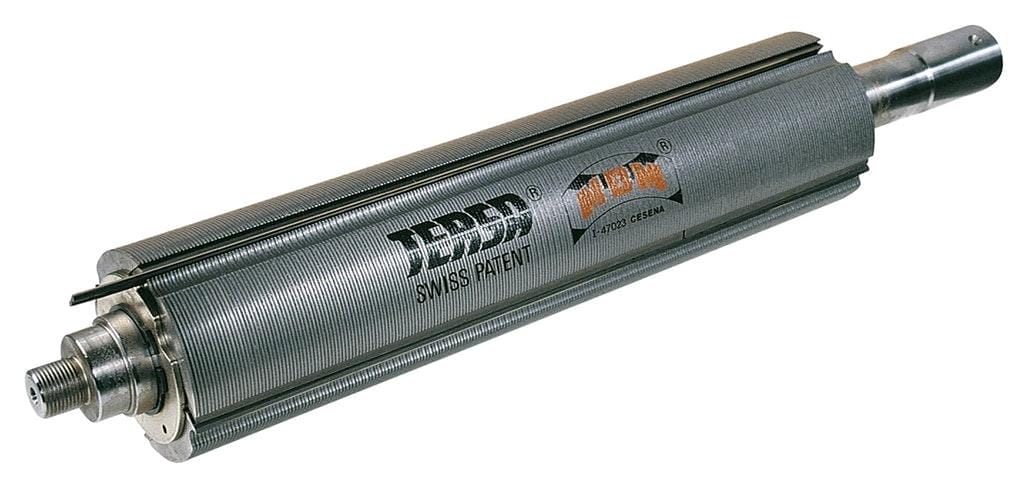

The planer unit utilizes an 87mm diameter cutter block with 3 knives (available as an option is the TERSA cutter block with 4 quick-tightening knives and automatic adjustment). The pressure of the thicknesser feed roller is able to be adjusted according to the type of material being processed. The roller infeed has a helicoidal profile to ensure firm, constant workpiece feed whilst the outfeed roller (in sandblasted steel) sustains the perfect post-processing finishing.

Producing an exceptional finish, the “Xilent” spiral knife has vastly reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips. The longevity of the cutter block has been greatly extended as each cutter has 4 tips that can be rotated into the cutting position when worn.

Categories ,

POA

+VAT

Request Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

Standing on cast iron supports, the Minimax Model FS41E Combined Planer Thicknesser is a highly durable, highly flexible machine capable of outputting “elite” finishes.

The planer unit utilizes an 87mm diameter cutter block with 3 knives (available as an option is the TERSA cutter block with 4 quick-tightening knives and automatic adjustment). The pressure of the thicknesser feed roller is able to be adjusted according to the type of material being processed. The roller infeed has a helicoidal profile to ensure firm, constant workpiece feed whilst the outfeed roller (in sandblasted steel) sustains the perfect post-processing finishing.

Producing an exceptional finish, the “Xilent” spiral knife has vastly reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips. The longevity of the cutter block has been greatly extended as each cutter has 4 tips that can be rotated into the cutting position when worn.

Standing on cast iron supports, the Minimax Model FS41E Combined Planer Thicknesser is a highly durable, highly flexible machine capable of outputting “elite” finishes.

The planer unit utilizes an 87mm diameter cutter block with 3 knives (available as an option is the TERSA cutter block with 4 quick-tightening knives and automatic adjustment). The pressure of the thicknesser feed roller is able to be adjusted according to the type of material being processed. The roller infeed has a helicoidal profile to ensure firm, constant workpiece feed whilst the outfeed roller (in sandblasted steel) sustains the perfect post-processing finishing.

Producing an exceptional finish, the “Xilent” spiral knife has vastly reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips. The longevity of the cutter block has been greatly extended as each cutter has 4 tips that can be rotated into the cutting position when worn.

Specifications

Working widthmm410
Cutterblock diameter / no. of mm410 x 30 x 3
Max. stock removal mm5
Surfacing tables total length mm2000
Thicknessing table dimensions mm 423 x 775
Feed speed on thicknesser m/min6 / 12
Min. ÷ max. working height on thicknesser mm3 ÷ 230
Three-phase motors starting from kW/Hz4 (4,8) / 50 (60)

Cutterhead working width mm / inches 410 / 16
With TERSA Straight-knife Cutterhead:
Cutterblock diameter / no° of standard knives
Dimension of standard knives
mm / n°
mm
87 / 3
410 x 30 x 3
With XYLENT Spiral helical Cutterhead:
Cutterblock diameter / no° of standard knives
Dimension of standard knives
mm / n°
mm
87 / 66
15 x 15 x 2.5
Max. stock removal mm 5
Jointer table length mm / inches 2200 / 79
Planer table dimensions mm / inches 423 x 775 / 16.65 x 30.5
Planer feed speed m/min 6 / 12
Min. – max. planer working height mm / inches 3 – 230 / 0.12 – 9
Single-phase motor Hp 4.8
Fence Tilt degrees 0 – 45
  • Minimax FS 41E
  • Planer working width 410 mm
  • Tersa (On Request)
  • Surfacing tables total length 2000 mm
  • 2 feed speeds on thicknesser 6/12 m/min
  • Min. ÷ max. working height on thicknesser 3 ÷ 230 mm
  • 415v 4 kW / 5.5 hp 50 Hz S6
  • 240v 2.2 kW / 3 hp 50 Hz S6

Specifications

Working widthmm410
Cutterblock diameter / no. of mm410 x 30 x 3
Max. stock removal mm5
Surfacing tables total length mm2000
Thicknessing table dimensions mm 423 x 775
Feed speed on thicknesser m/min6 / 12
Min. ÷ max. working height on thicknesser mm3 ÷ 230
Three-phase motors starting from kW/Hz4 (4,8) / 50 (60)

Cutterhead working width mm / inches 410 / 16
With TERSA Straight-knife Cutterhead:
Cutterblock diameter / no° of standard knives
Dimension of standard knives
mm / n°
mm
87 / 3
410 x 30 x 3
With XYLENT Spiral helical Cutterhead:
Cutterblock diameter / no° of standard knives
Dimension of standard knives
mm / n°
mm
87 / 66
15 x 15 x 2.5
Max. stock removal mm 5
Jointer table length mm / inches 2200 / 79
Planer table dimensions mm / inches 423 x 775 / 16.65 x 30.5
Planer feed speed m/min 6 / 12
Min. – max. planer working height mm / inches 3 – 230 / 0.12 – 9
Single-phase motor Hp 4.8
Fence Tilt degrees 0 – 45
  • Minimax FS 41E
  • Planer working width 410 mm
  • Tersa (On Request)
  • Surfacing tables total length 2000 mm
  • 2 feed speeds on thicknesser 6/12 m/min
  • Min. ÷ max. working height on thicknesser 3 ÷ 230 mm
  • 415v 4 kW / 5.5 hp 50 Hz S6
  • 240v 2.2 kW / 3 hp 50 Hz S6
