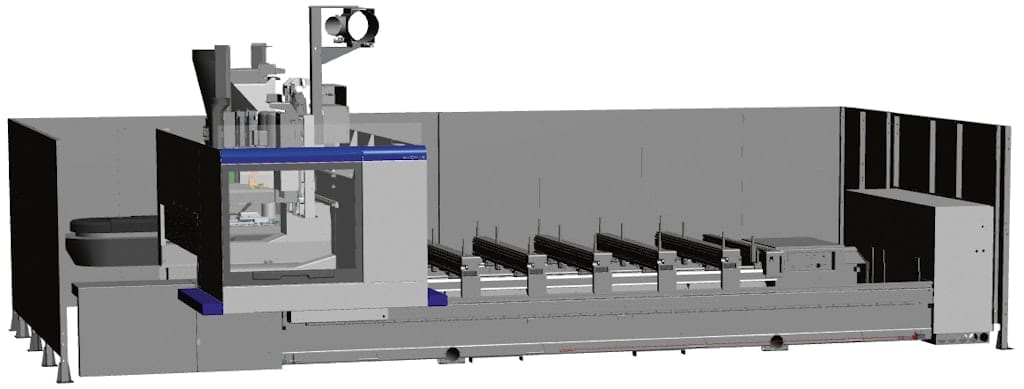

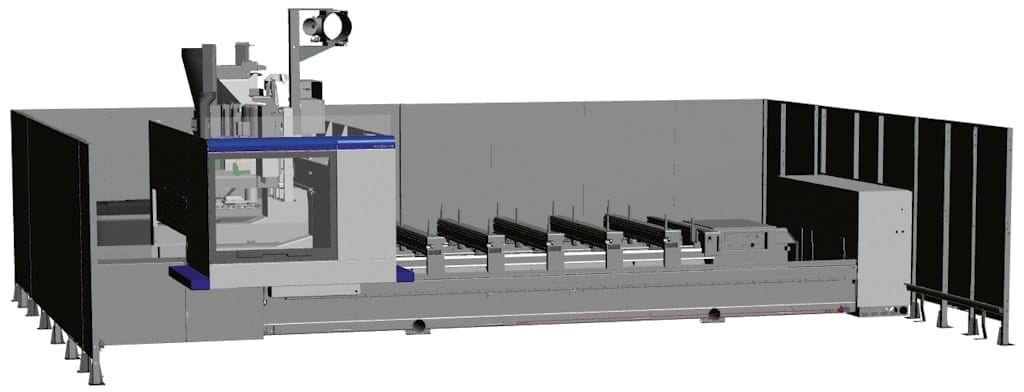

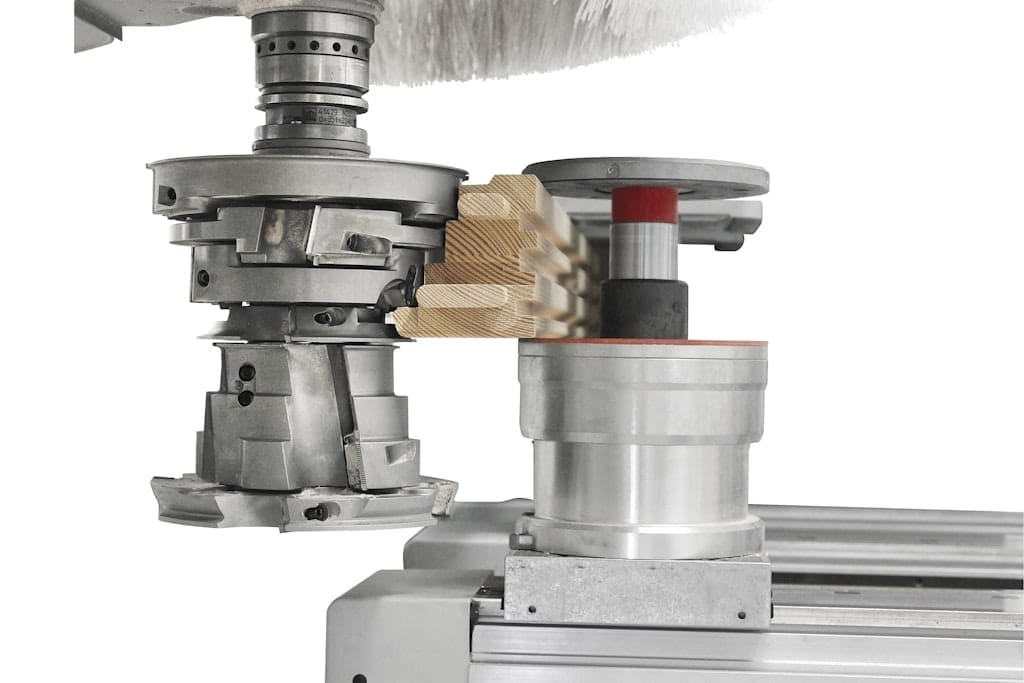

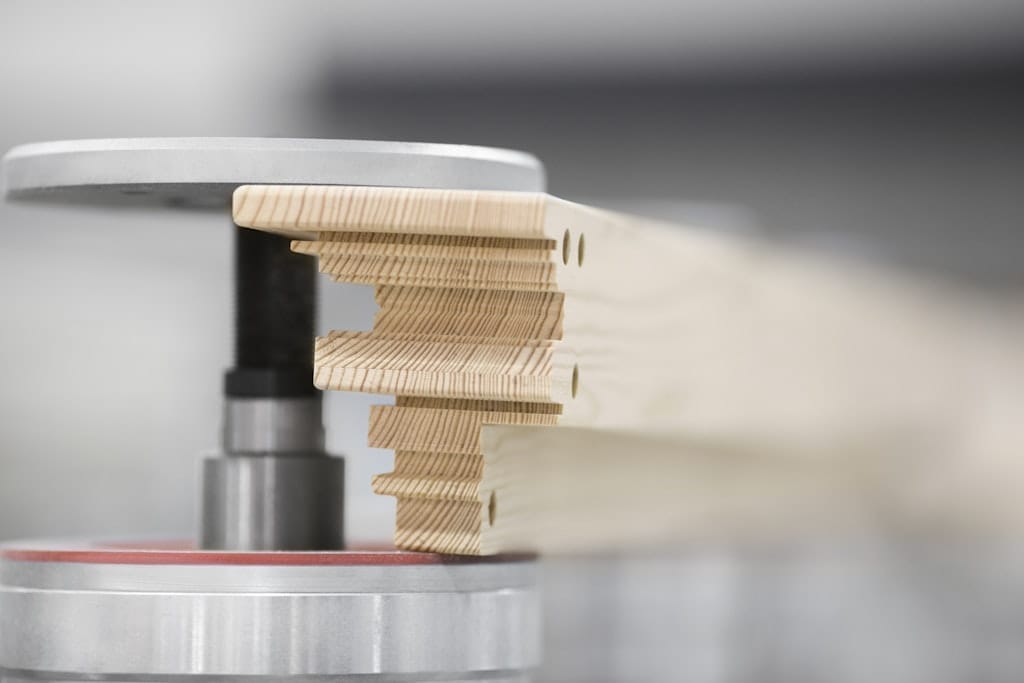

The SCM Accord 25 FX is a CNC machining centre designed to deliver high performance with minimal investment. Tailored for small to medium-sized workshops, it combines advanced technology with user-friendly operation, making it ideal for the flexible production of doors, windows, stairs, solid wood components, and the machining of wood and other materials.
Versatile Production: Capable of handling various products due to its expanded machining dimensions and the availability of numerous tools within the machine.

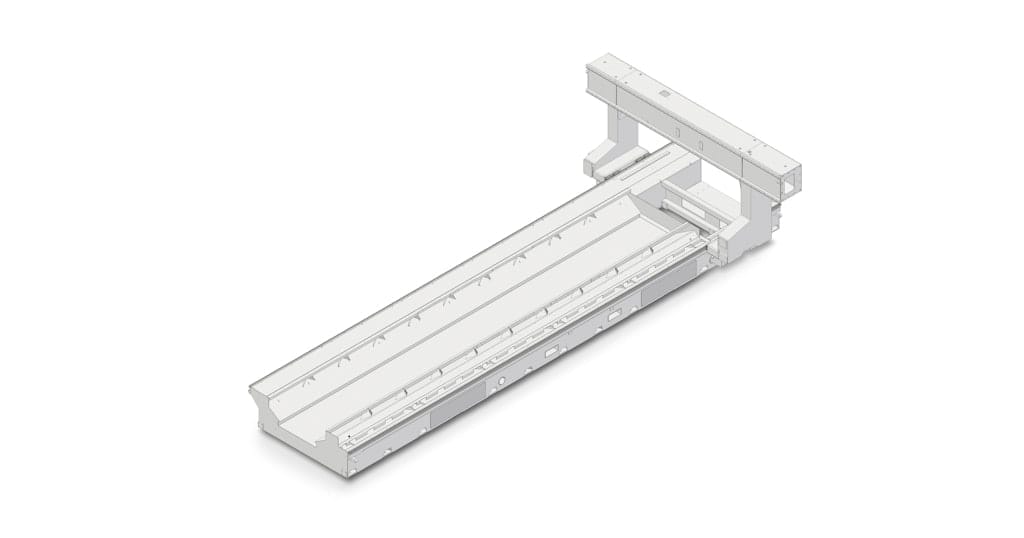

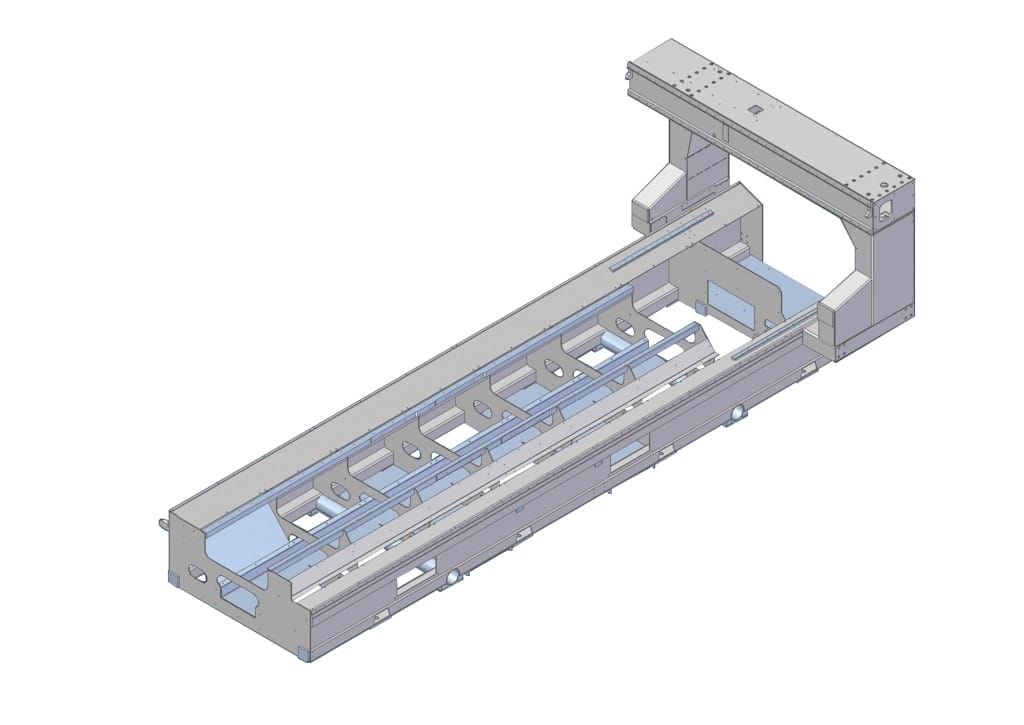

High-Quality Finish: Ensures top-level precision and finishing across the entire machining area, thanks to its robust construction and advanced control systems.

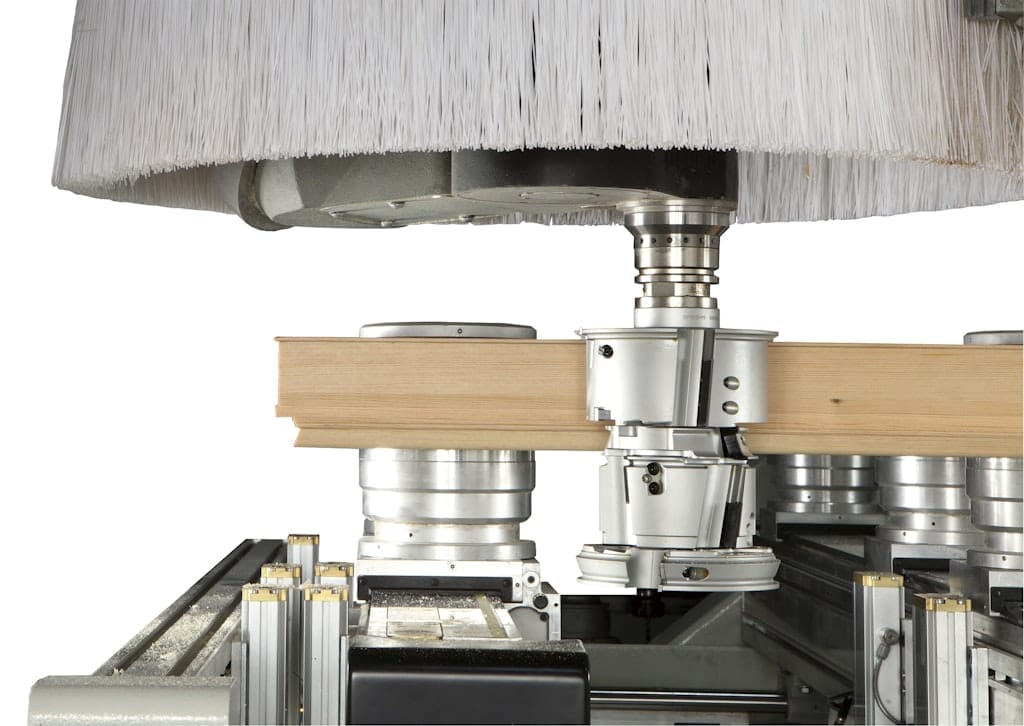

Large Workpiece Machining: The significant vertical stroke allows for the machining of workpieces up to 250 mm in height using large tools.

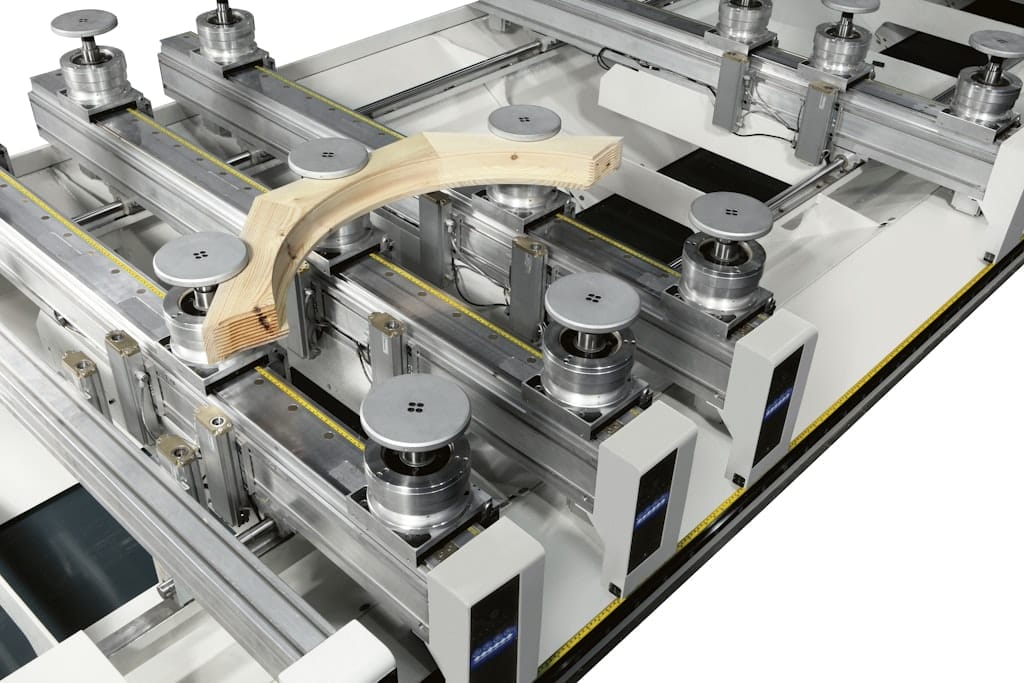

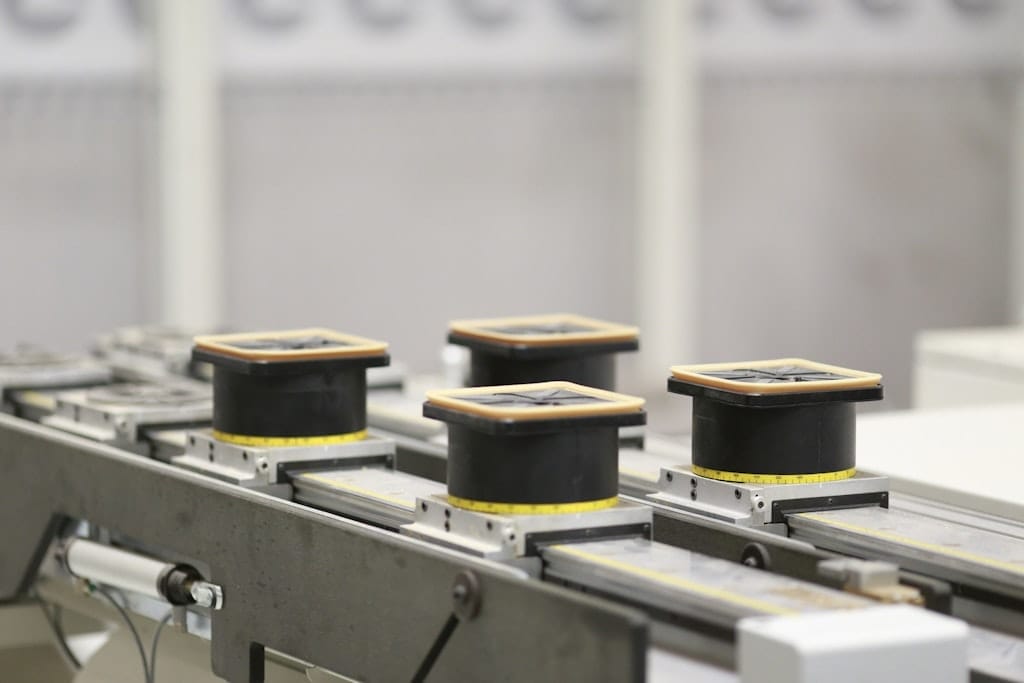

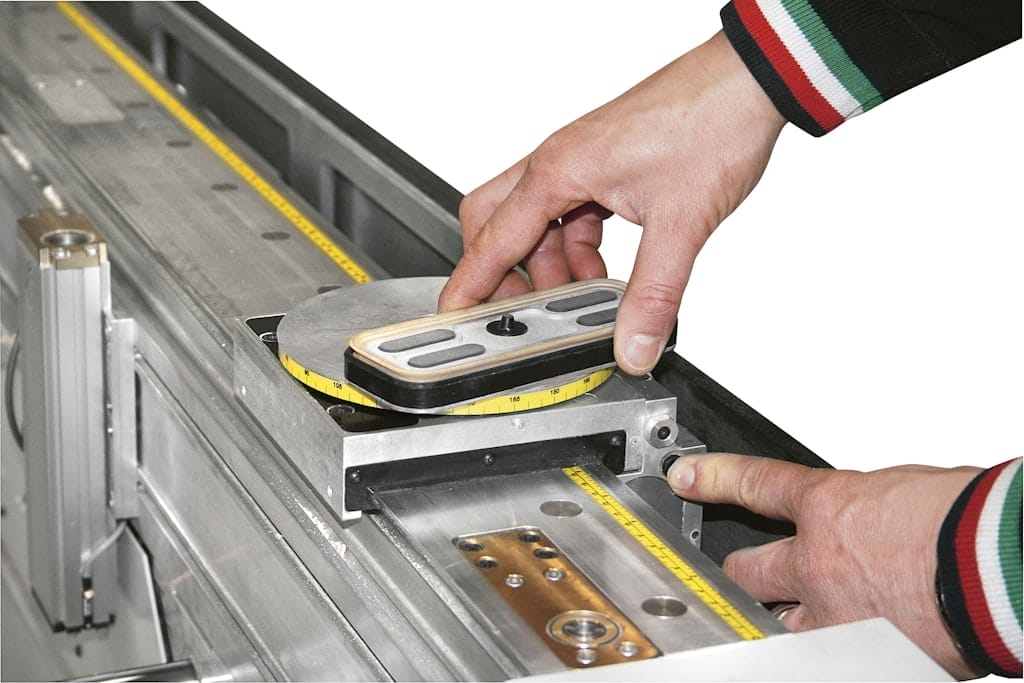

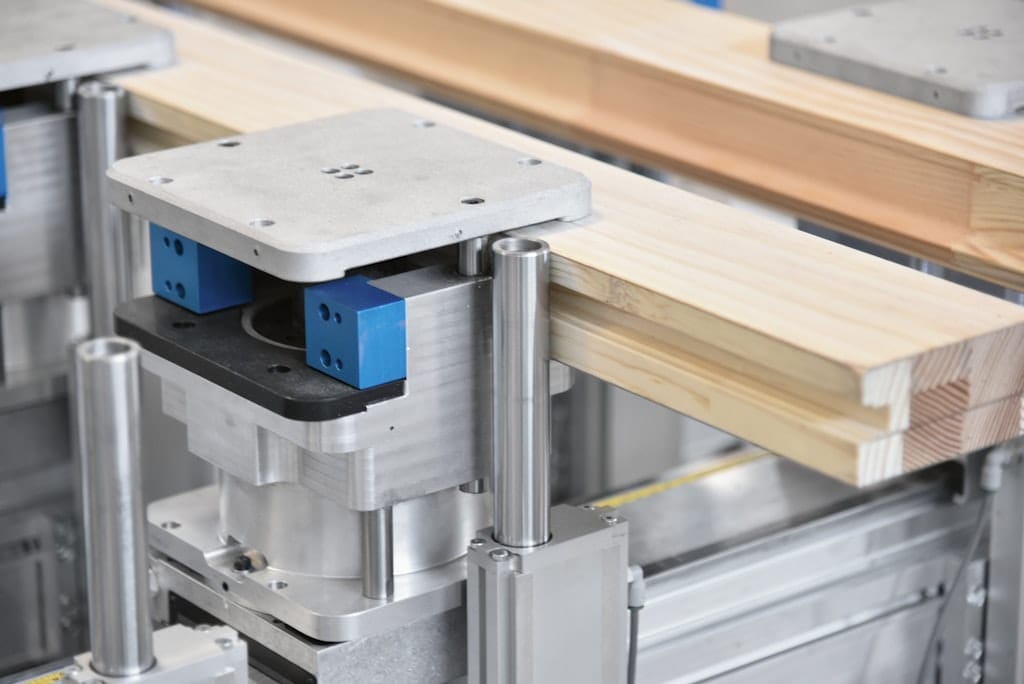

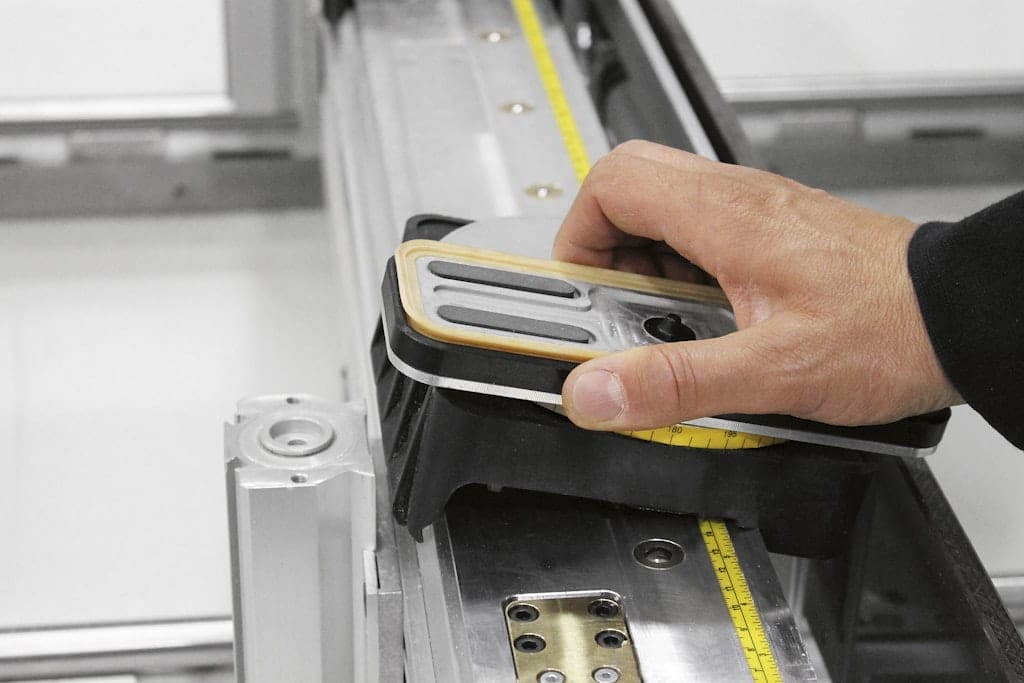

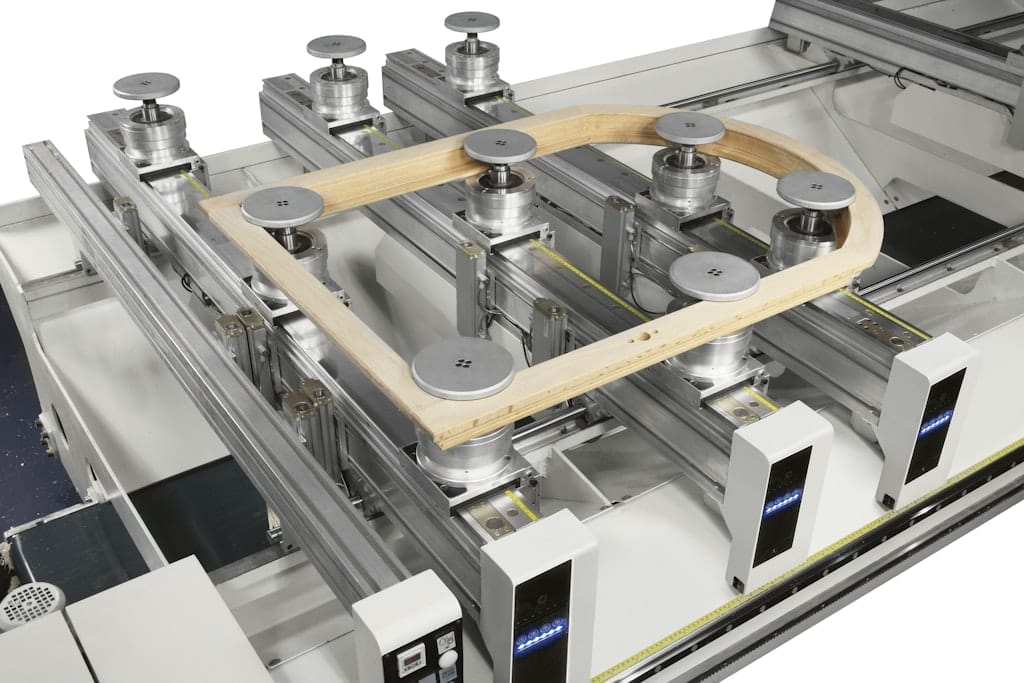

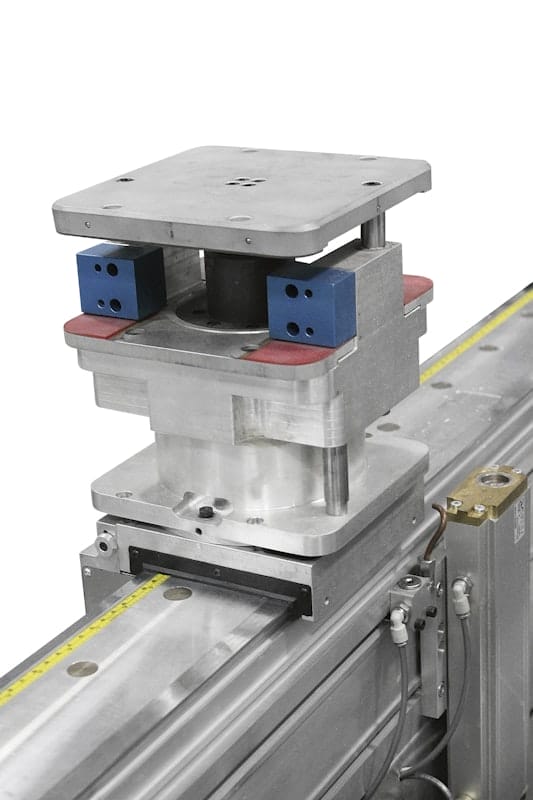

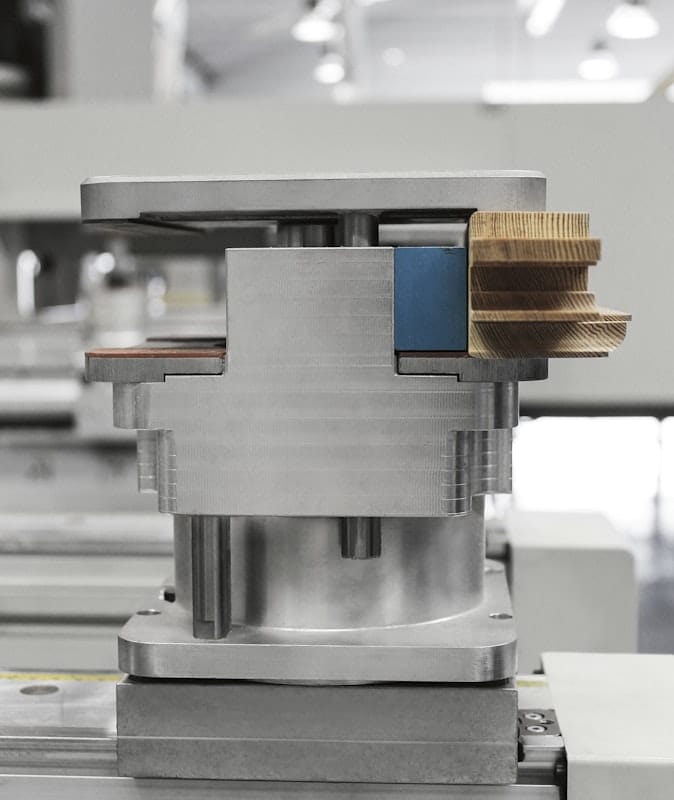

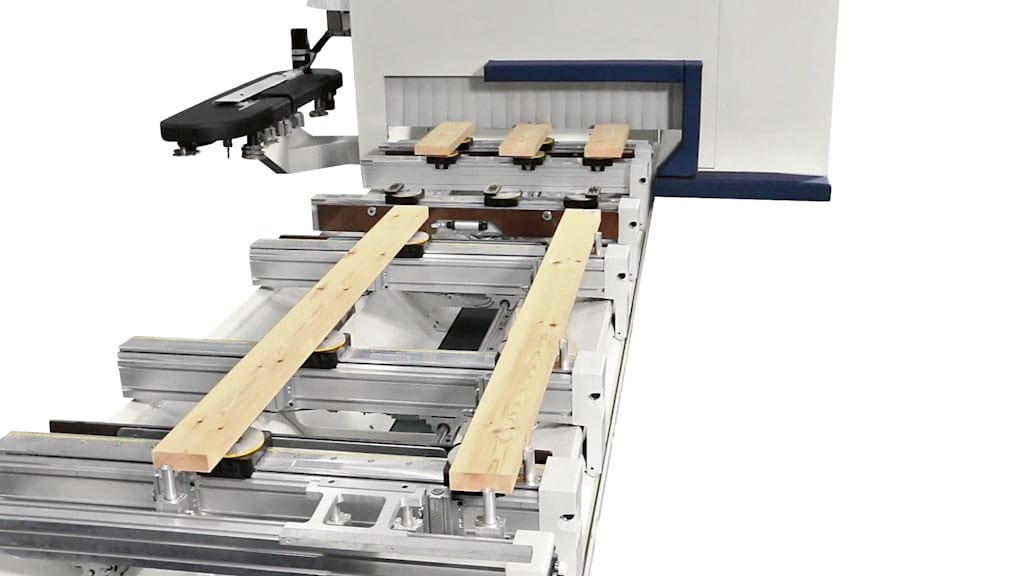

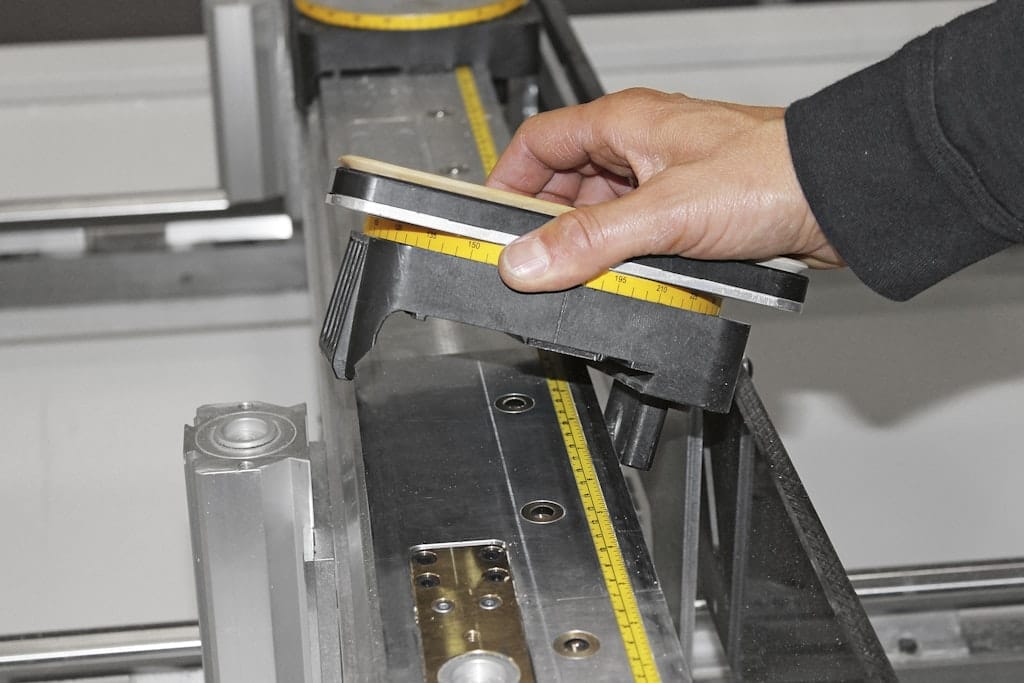

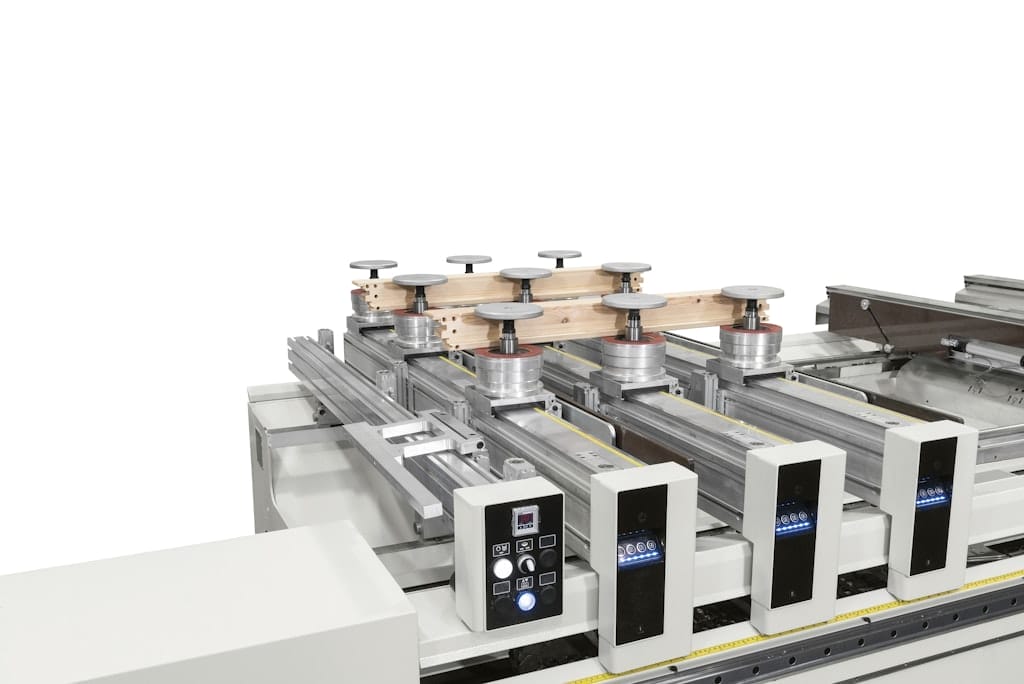

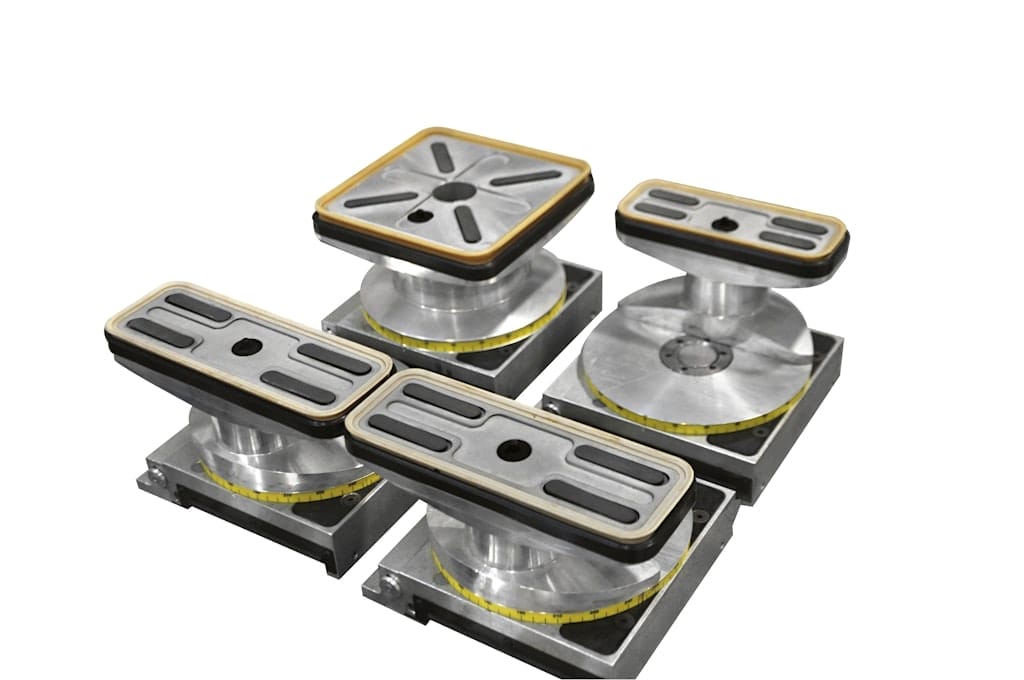

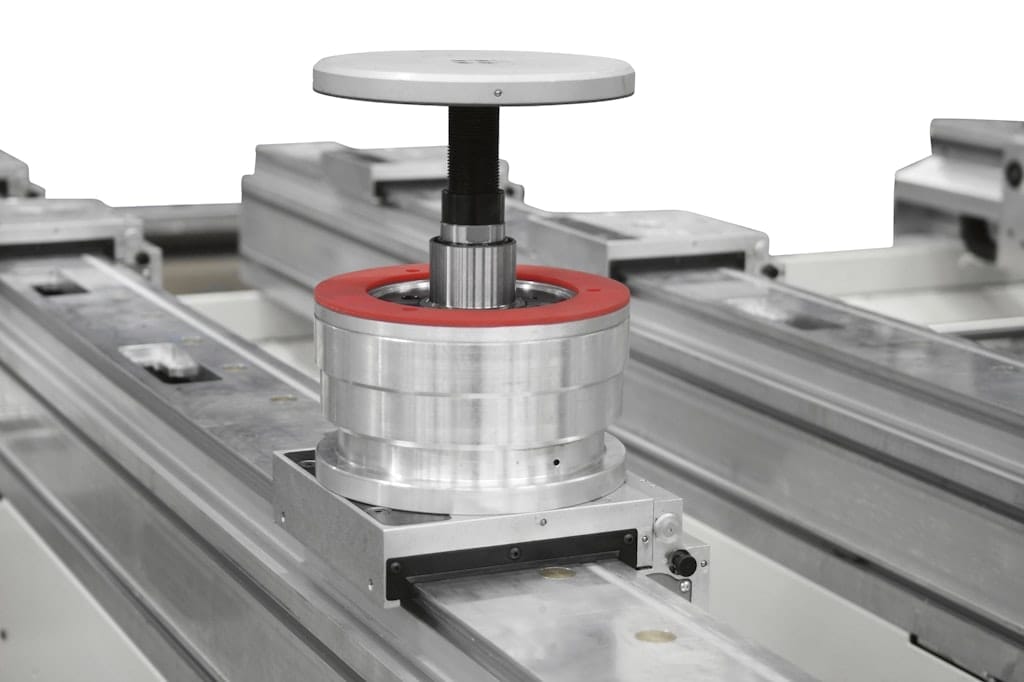

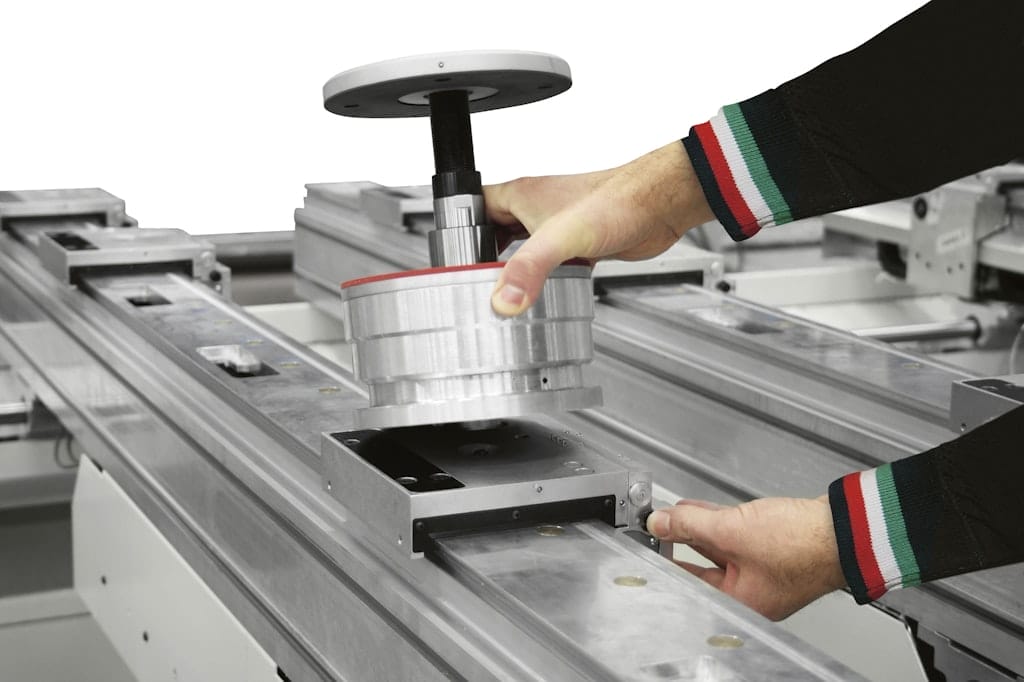

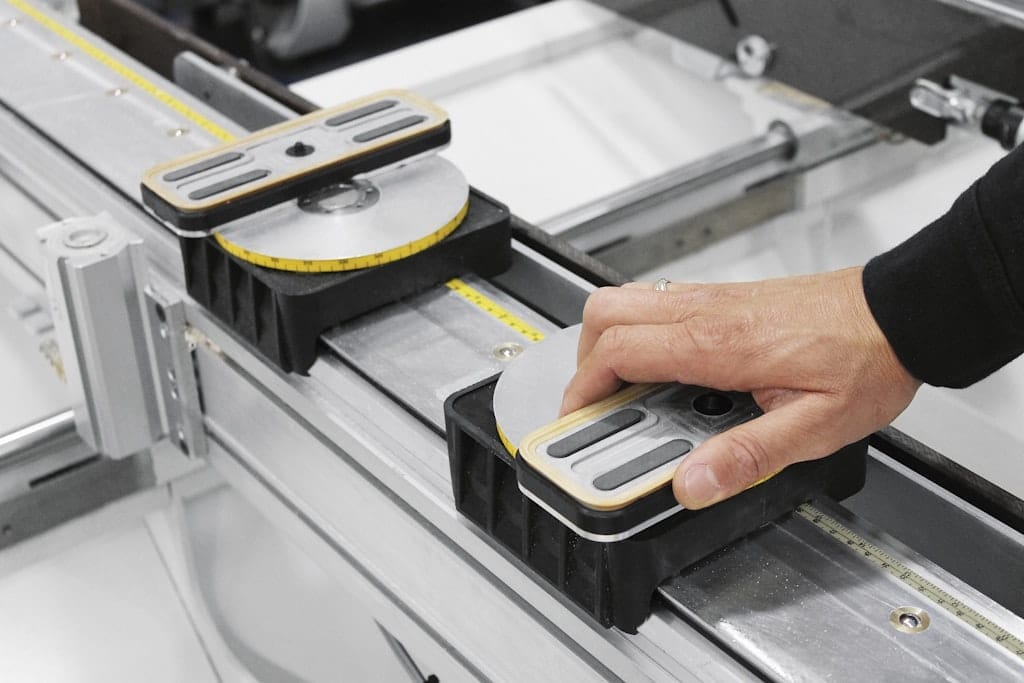

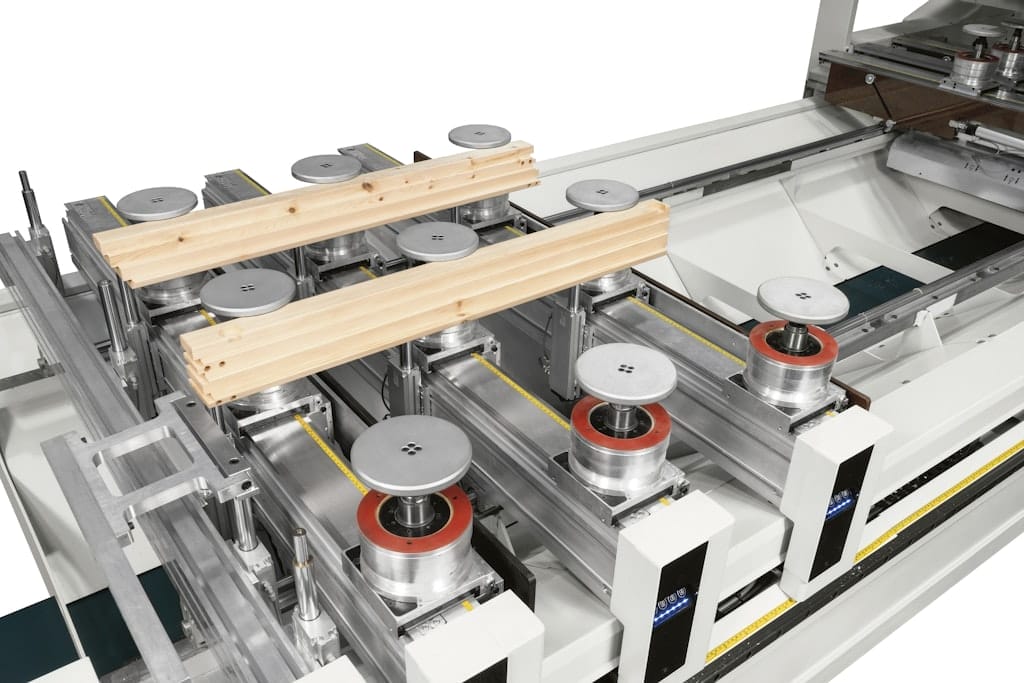

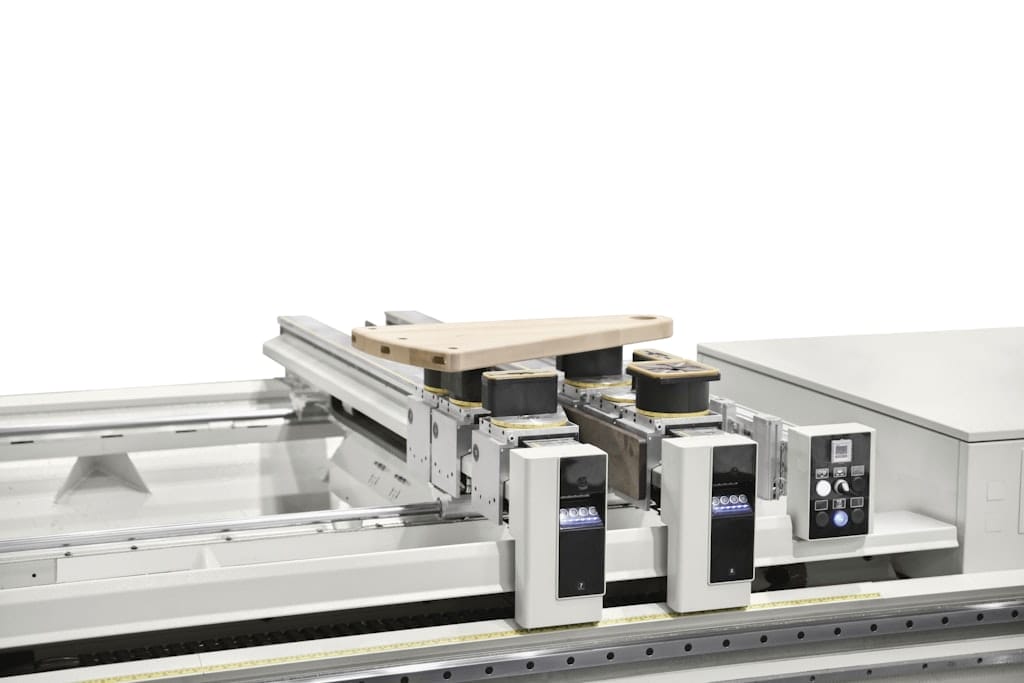

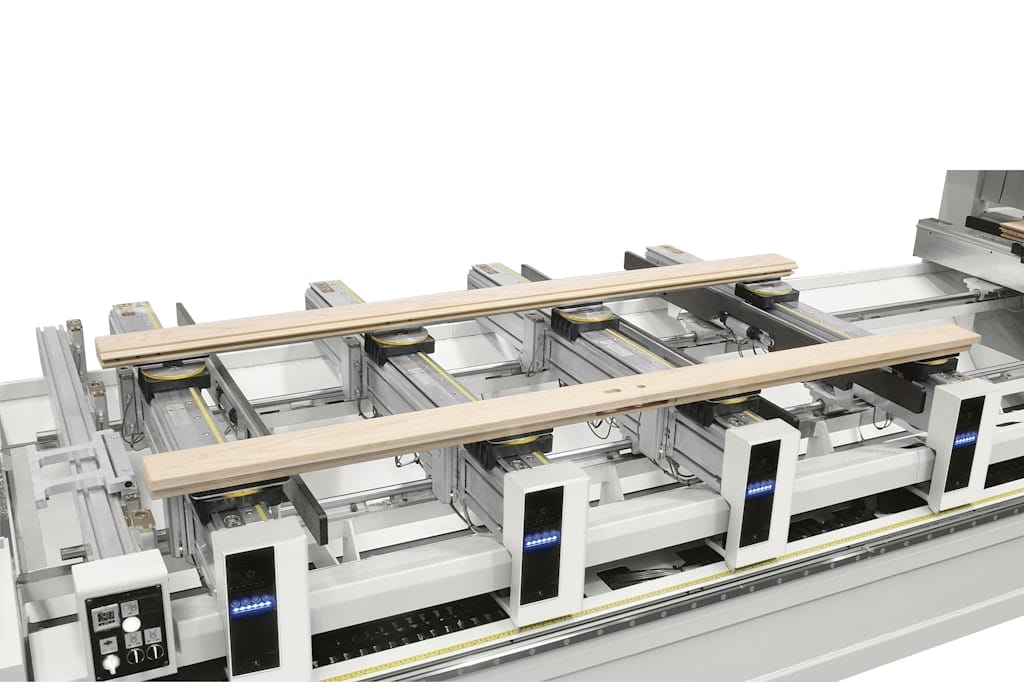

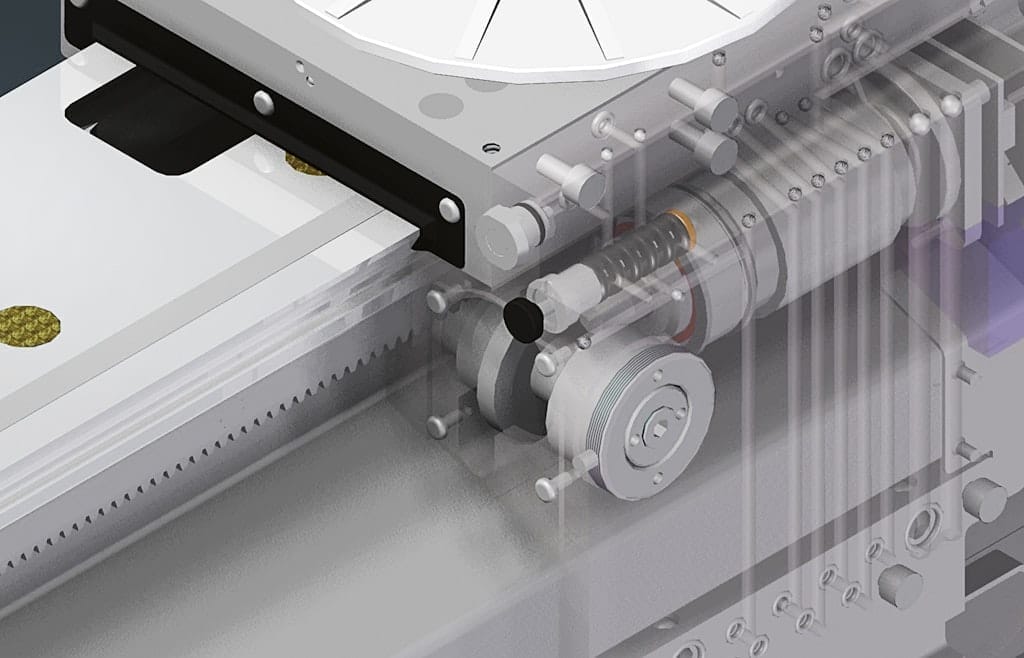

Automatic Worktable Positioning: Features the MATIC worktable with automatic positioning, enabling rapid and precise setup of workpiece hold-down devices, enhancing efficiency and reducing manual intervention.

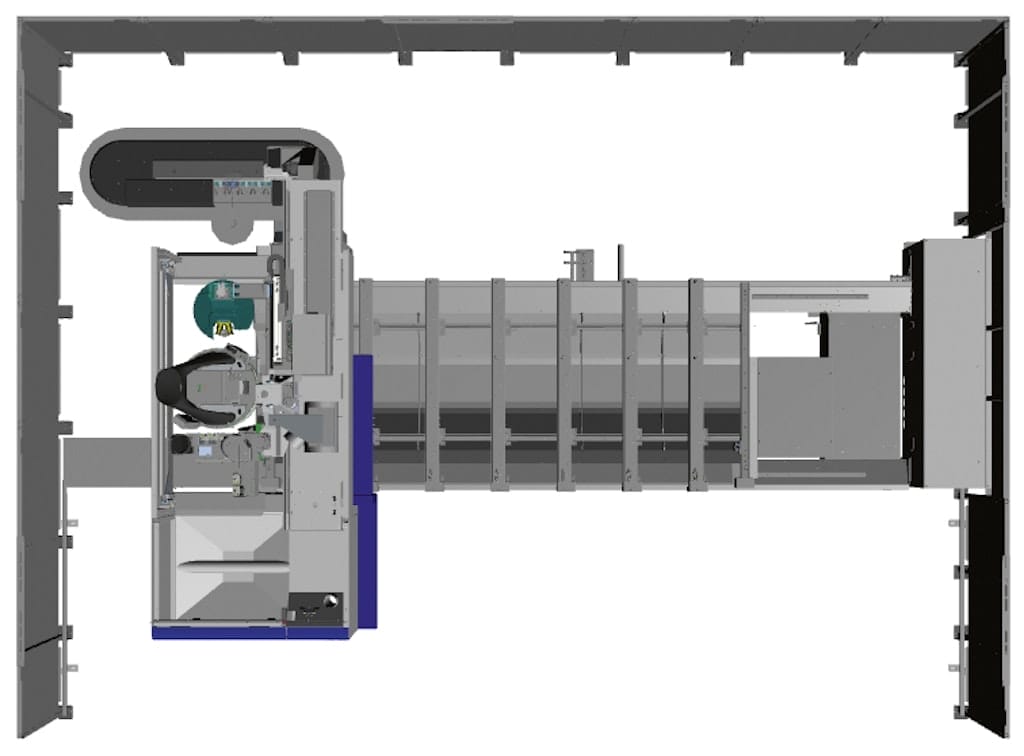

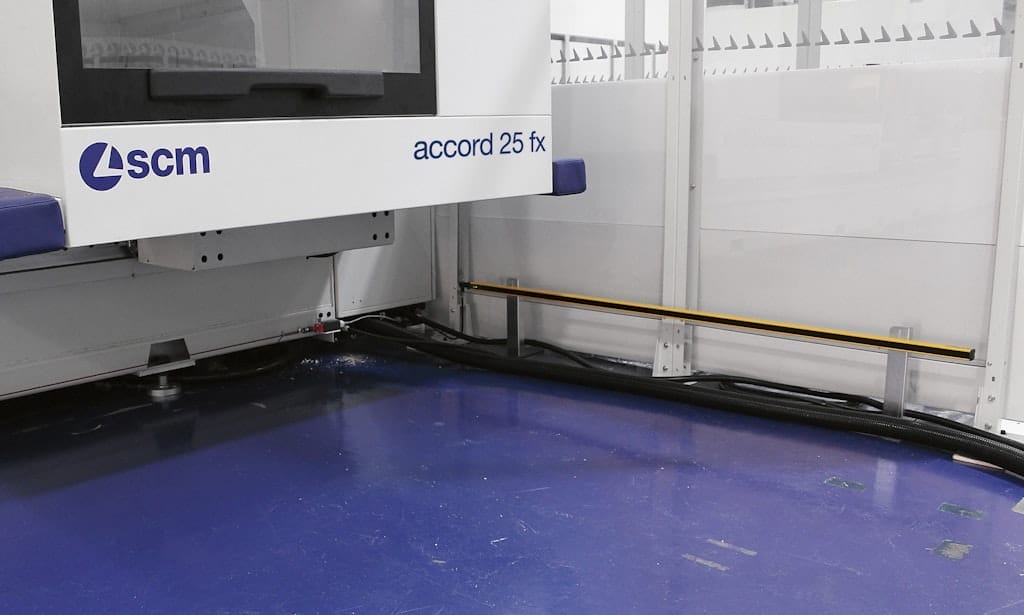

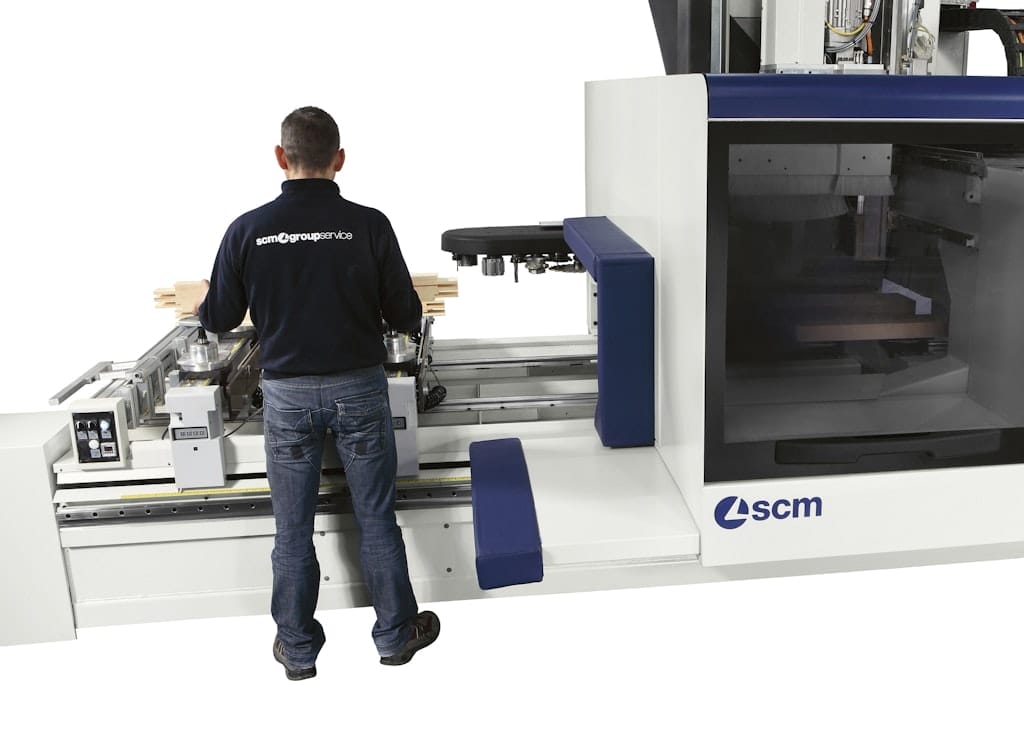

Ergonomic and Safe Operation: Incorporates the Pro-Speed system with horizontal photocells and new bumpers on the movable guard, combining maximum access to the worktable with total operator safety during operations.
Technical Specifications:
Working Areas (X-Y-Z axes dimensions): Available configurations include 3680x1380x250 mm, 5020x1380x250 mm, and 6360x1380x250 mm, among others.
Axes Maximum Speed: X and Y axes up to 60 m/min; Z axis up to 30 m/min.

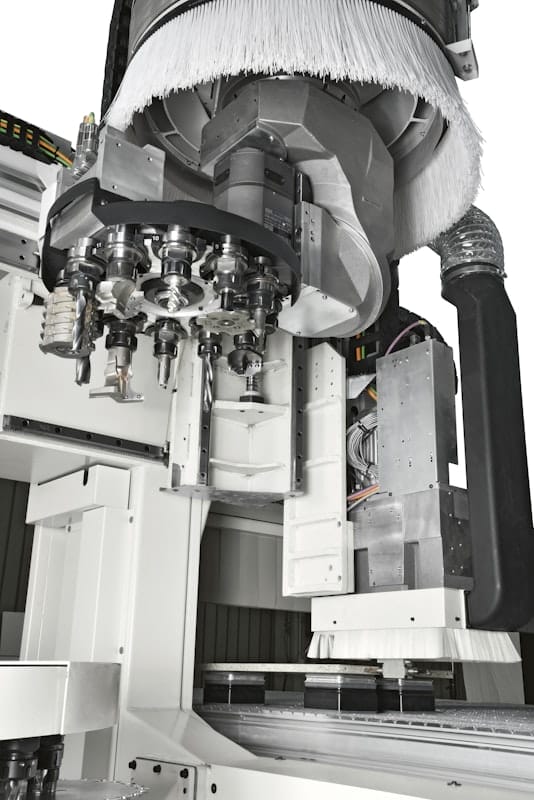

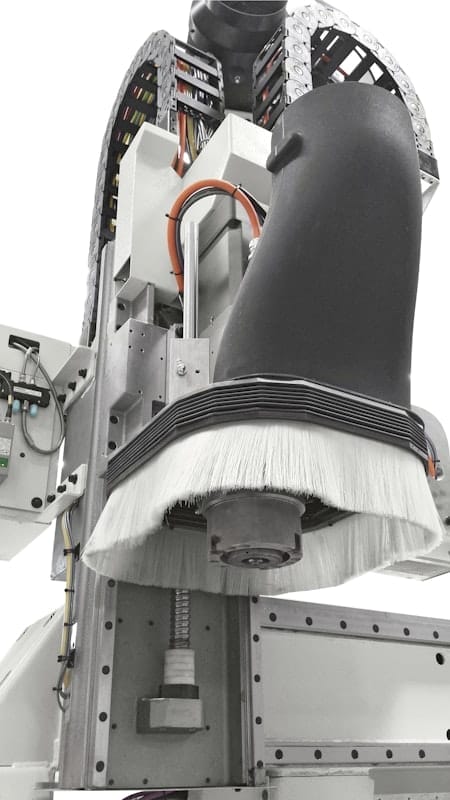

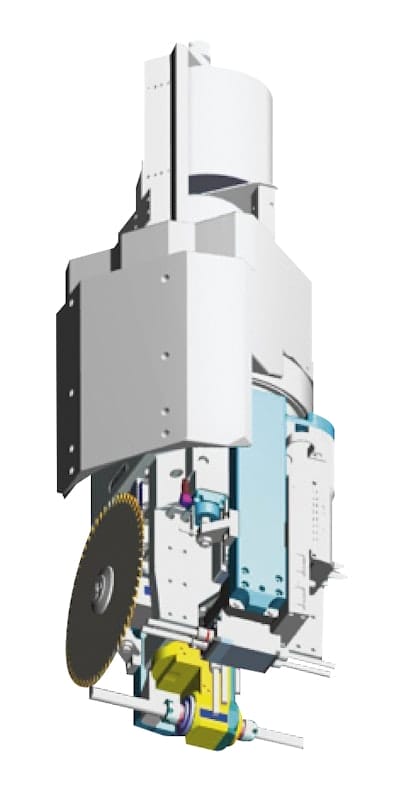

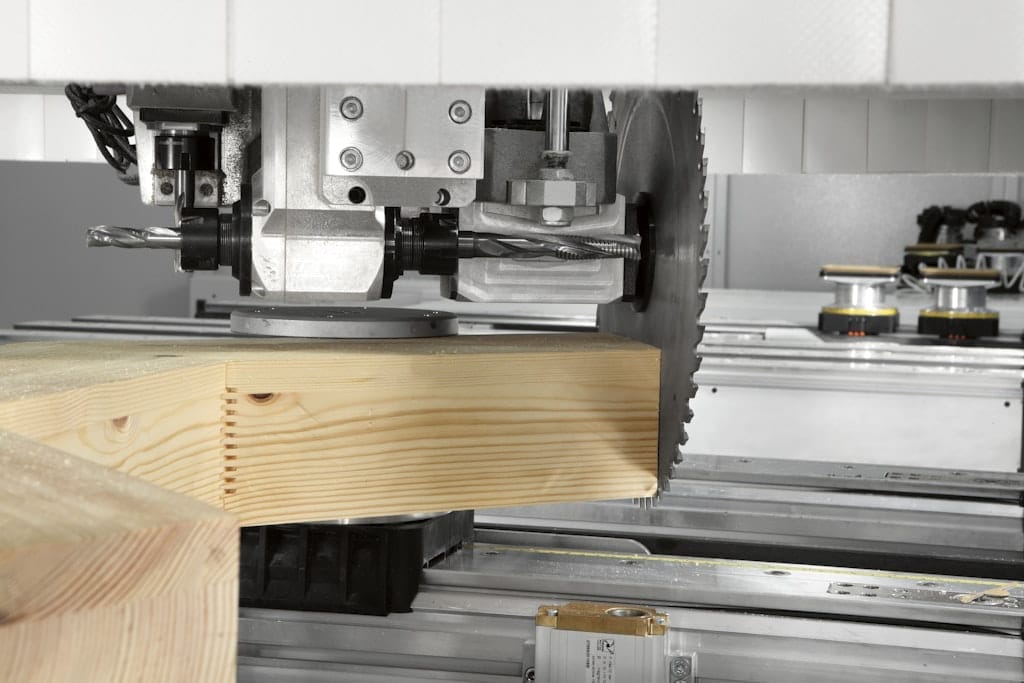

Machining Head Options:

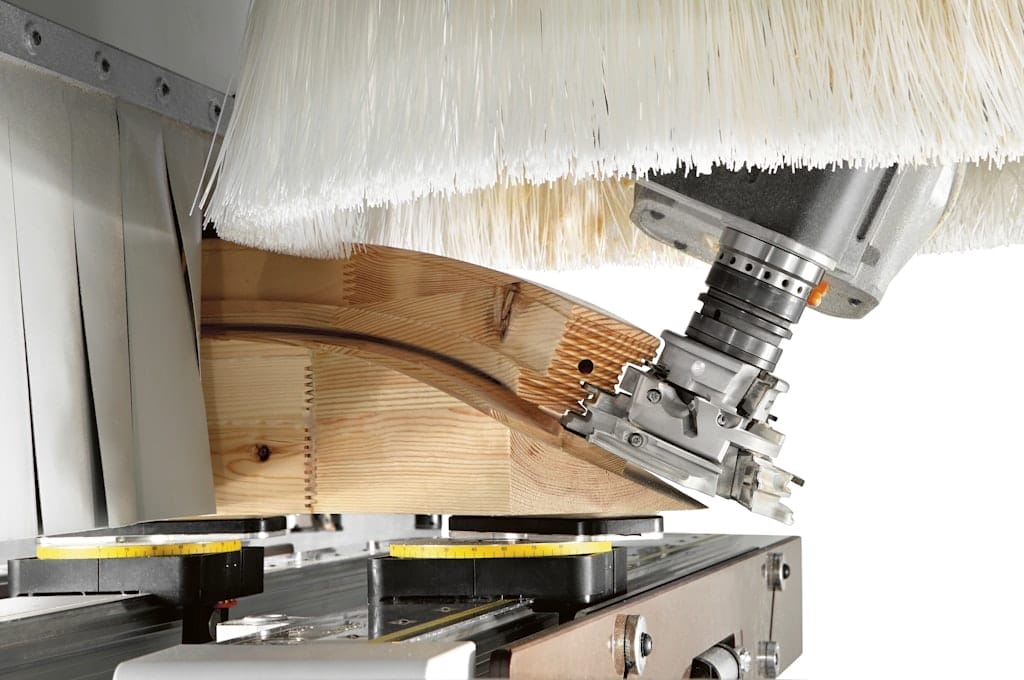

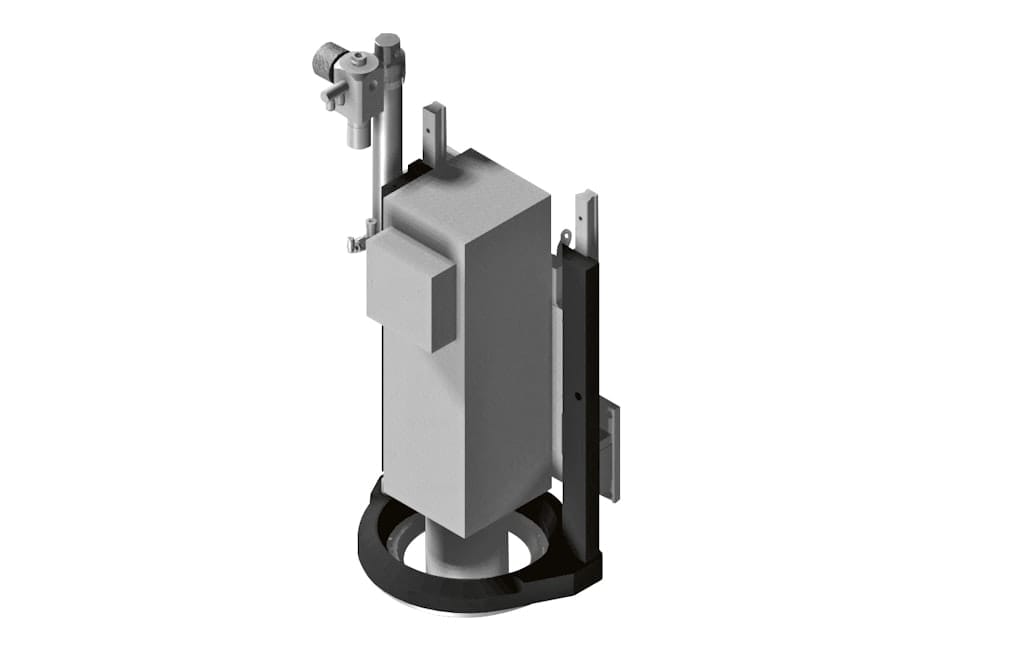

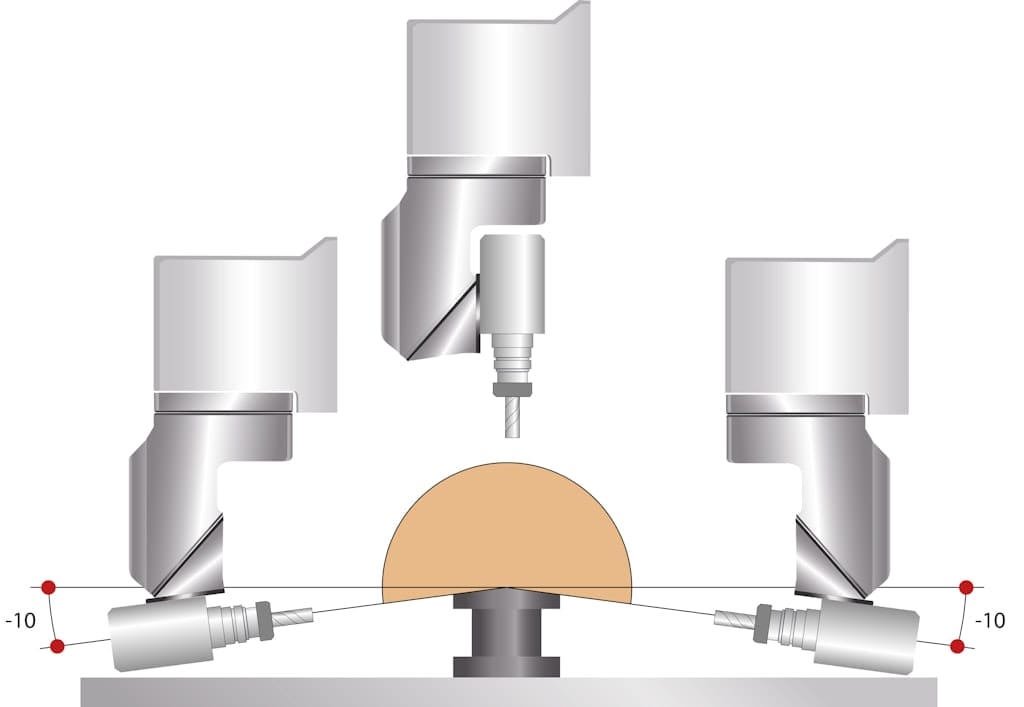

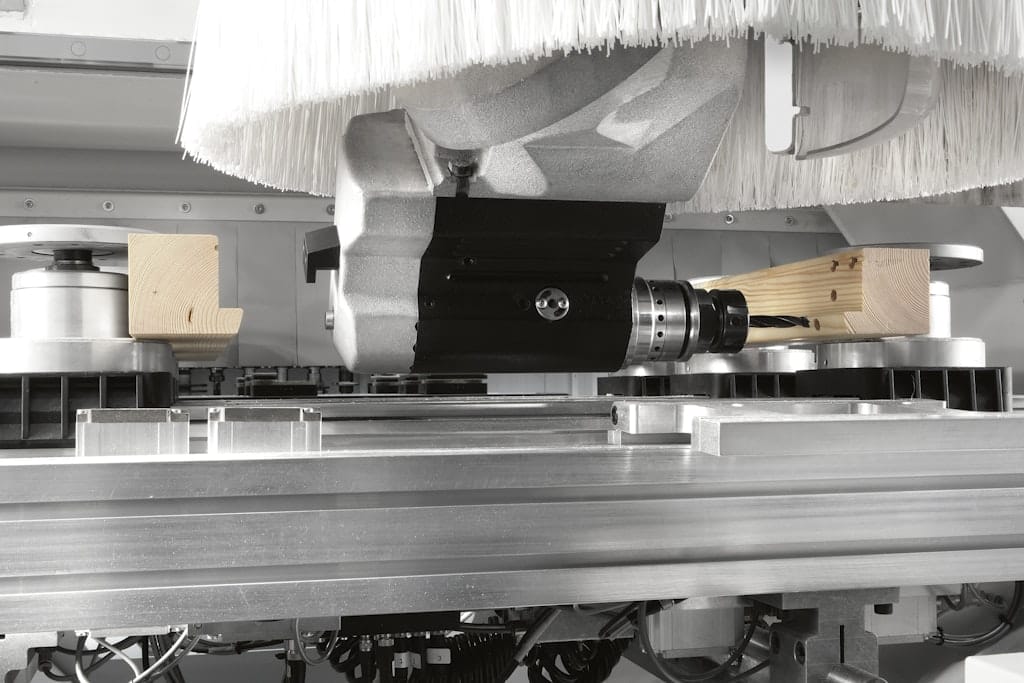

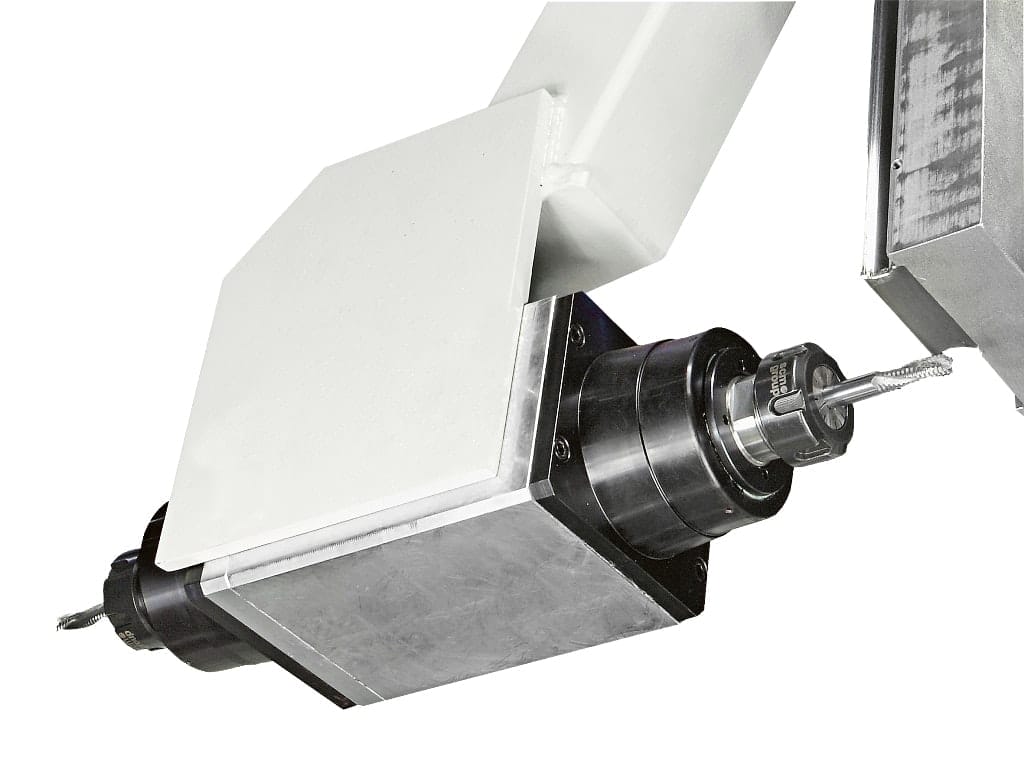

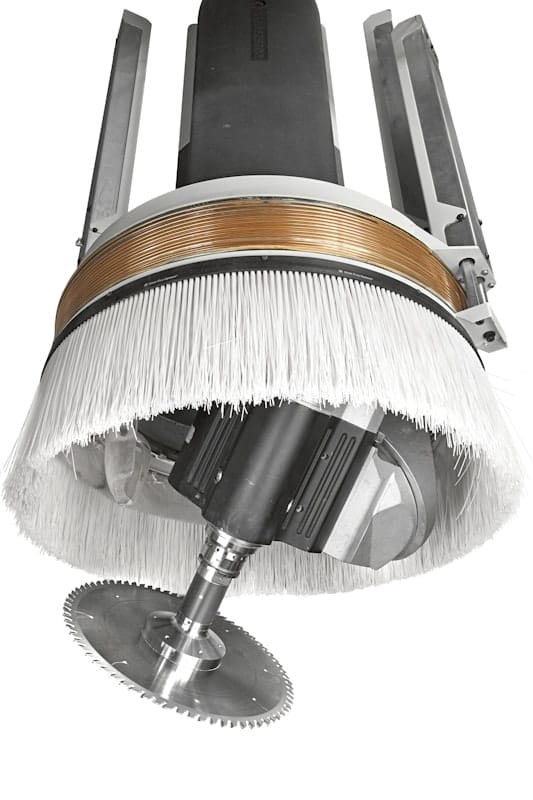

5-Axis Electrospindle: Maximum motor power of 12 kW with a rotation speed up to 24,000 rpm.
3/4-Axis Electrospindle: Maximum motor power of 15 kW with a rotation speed up to 24,000 rpm.

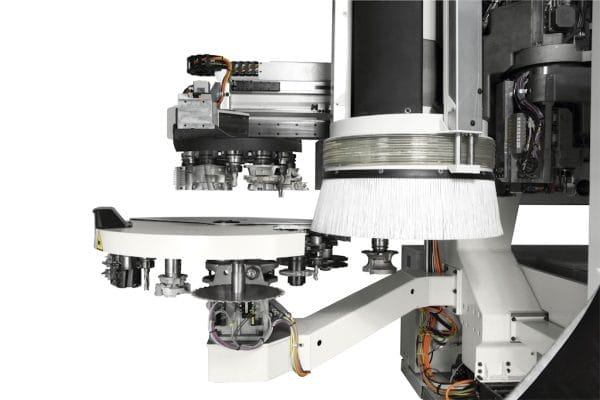

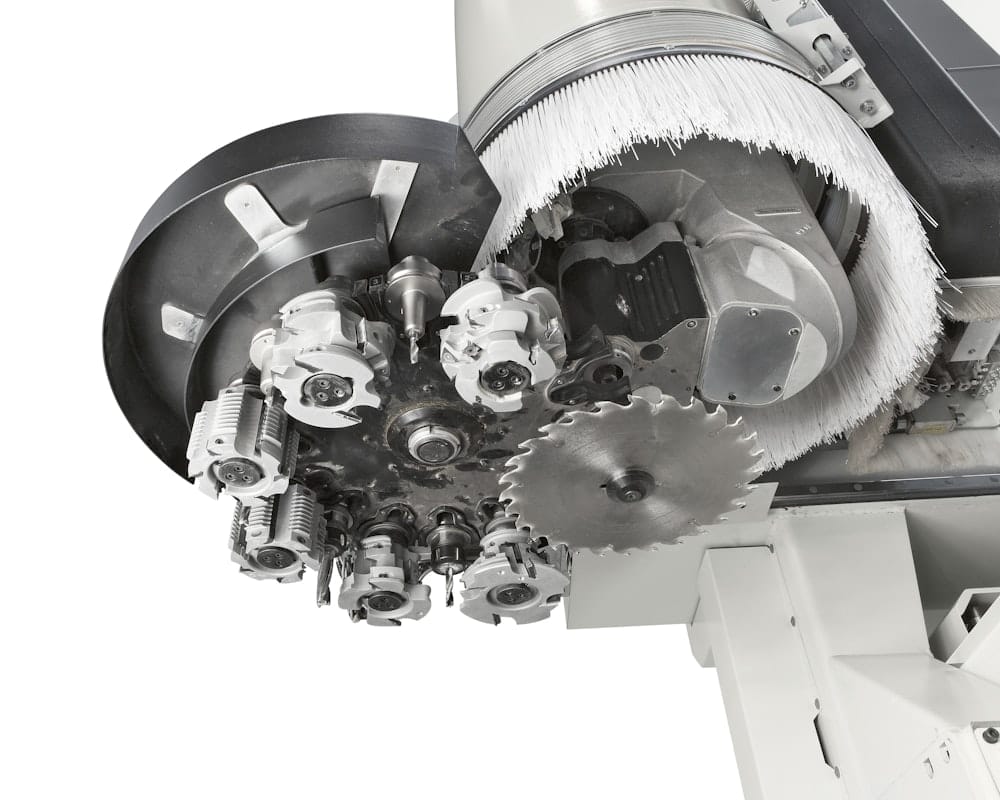

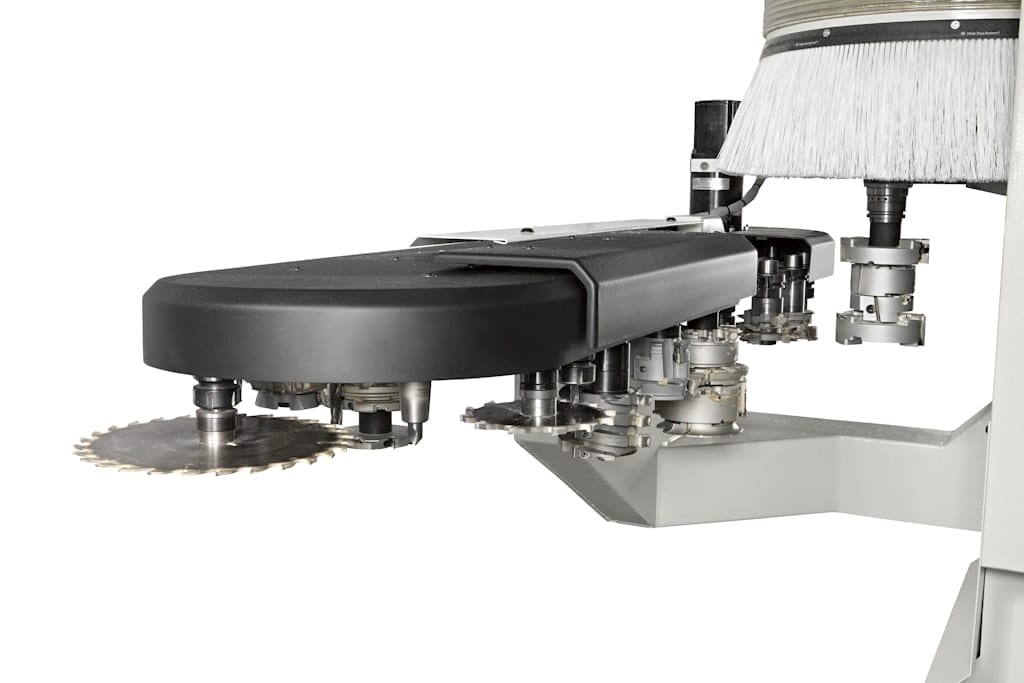

Tool Stores:
Tool store on machining head: 12 positions.

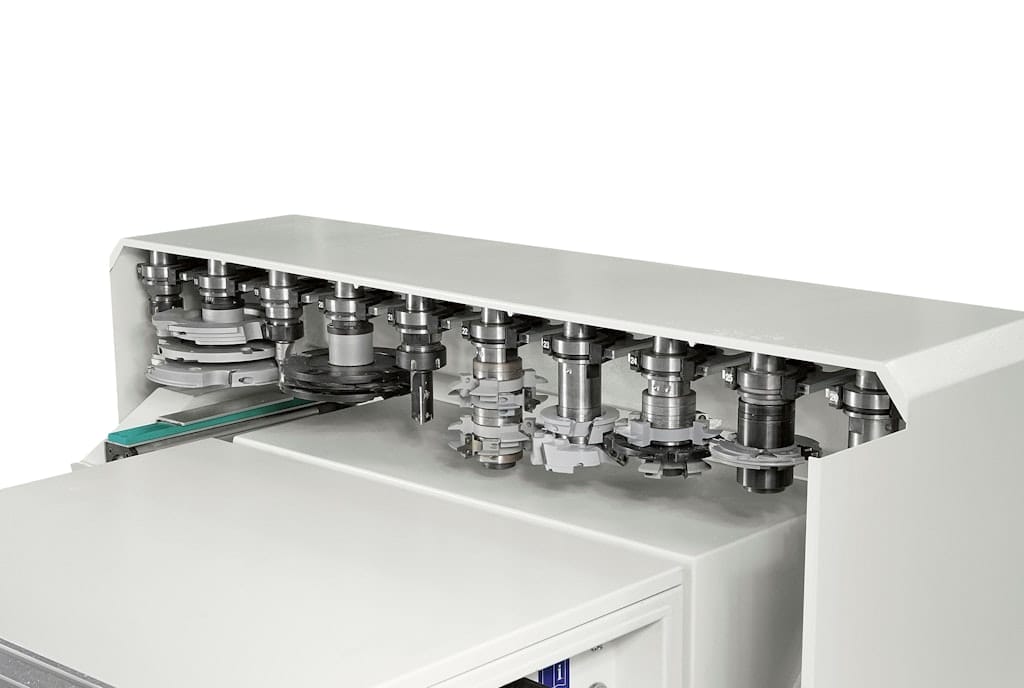

Rear tool store: 32 positions.
Side tool store: 12 positions.

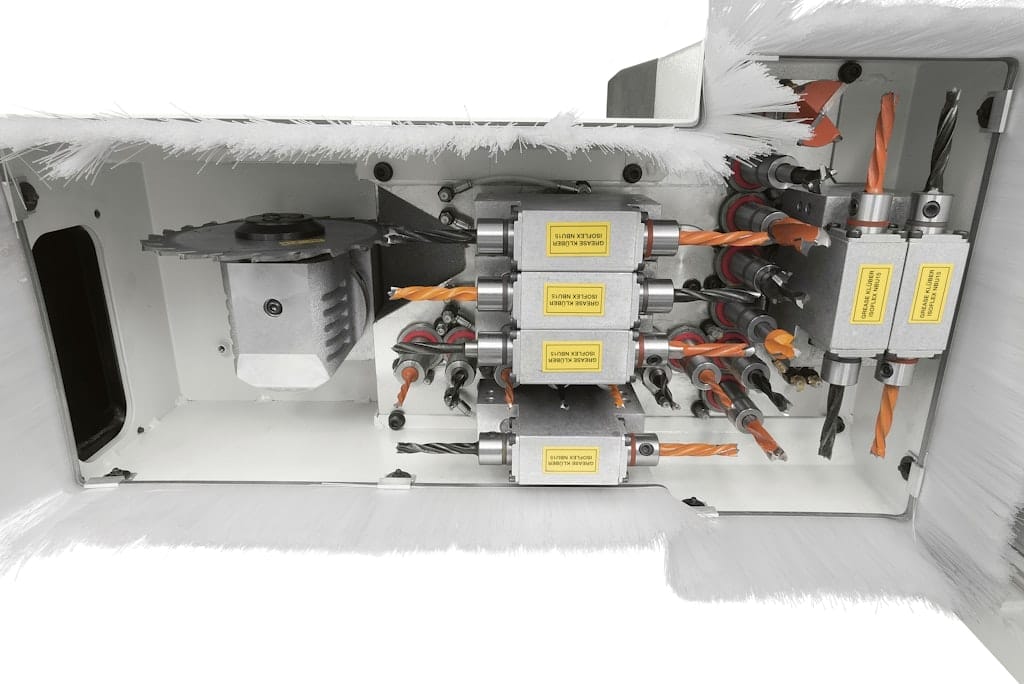

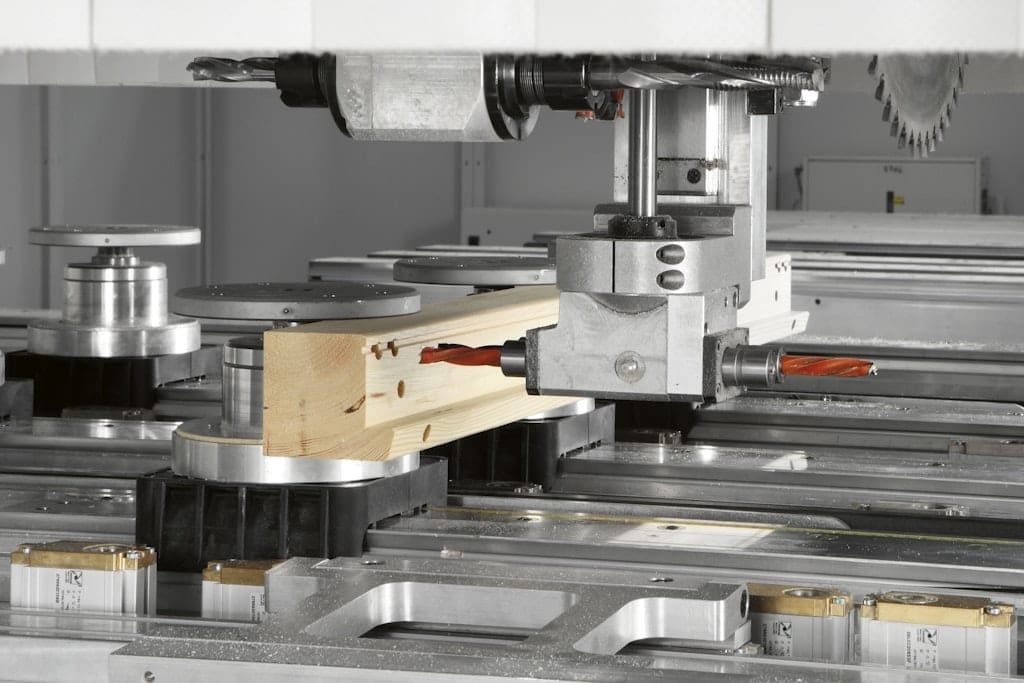

Drilling Unit: Accommodates up to 30 vertical and horizontal spindles with a maximum rotation speed of 8,000 rpm.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner One Funding.
IMPORTANT
Specifications | |
---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
 |  | accord 25 fx | ||
Working areas | ||||
X-Y-Z axes dimensions | mm | 3680x1380x250 5020x1380x250 6360x1380x250 3680x1680x250 5020x1680x250 6360x1680x250 | ||
Axes | ||||
X-Y-Z axes max. speed | m/min | 60-60-30 | ||
Machining head | ||||
5 axes electrospindle motor power (max.) | kW | 12 | ||
3/4 axes electrospindle motor power (max.) | kW | 15 | ||
5 axes electrospindle rotation speed (max.) | rpm | 24000 | ||
3/4 axes electrospindle rotation speed (max.) | rpm | 24000 | ||
Tool stores | ||||
Tool store on machining head | positions | 12 | ||
Rear tool store | positions | 32 | ||
Side tool store | positions | 12 | ||
Drilling unit | ||||
Vertical and horizontal spindles (max.) | n. | 30 | ||
Rotation speed (max.) | rpm | 8000 |
