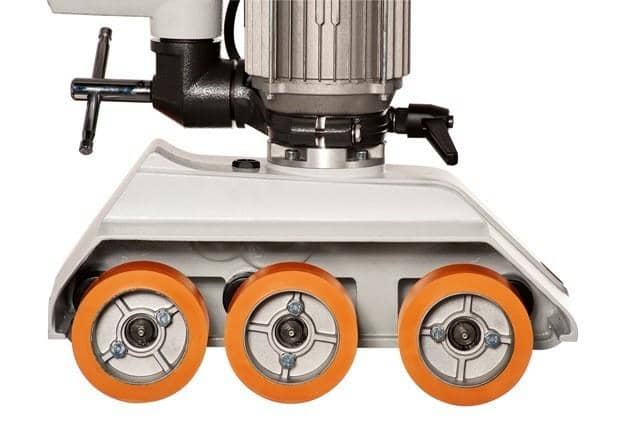

  • Illustration of Power Feed Unit rollers
  • Maggi Steff 2034 Feed Unit Component
  • Maggi Steff 2034 Feed Unit Component
  • Maggi Steff 2034 Feed Unit Component

Maggi Steff 2034 Power Feed Unit

The Maggi Steff 2034 Power Feed Unit is an industrial, heavy-duty, 3-phase automatic power feed unit with 4 speeds; hard-wearing, interchangeable gears; replacement rubber rollers; resistant, protective electrostatic powder paint and a heavy-duty universal stand.

2 speeds are obtained by changing the position of the gears inside the housing, while the other 2 speeds result from the switching of the bipolar engine (1400 – 2800 rpm).

With its top-quality components, the Maggi STEFF 2034 is not only a reliable and highly durable product, but it will leave your final product free of defects and imperfections associated with uneven stop/start feeding.1

SKU STEFF2034 Category

£575.00

+VAT

Expected mid May 2022

In stock

Add to Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The Maggi Steff 2034 Power Feed Unit is an industrial, heavy-duty, 3-phase automatic power feed unit with 4 speeds; hard-wearing, interchangeable gears; replacement rubber rollers; resistant, protective electrostatic powder paint and a heavy-duty universal stand.

2 speeds are obtained by changing the position of the gears inside the housing, while the other 2 speeds result from the switching of the bipolar engine (1400 – 2800 rpm).

With its top-quality components, the Maggi STEFF 2034 is not only a reliable and highly durable product, but it will leave your final product free of defects and imperfections associated with uneven stop/start feeding.

The Maggi Steff 2034 Power Feed Unit is an industrial, heavy-duty, 3-phase automatic power feed unit with 4 speeds; hard-wearing, interchangeable gears; replacement rubber rollers; resistant, protective electrostatic powder paint and a heavy-duty universal stand.

2 speeds are obtained by changing the position of the gears inside the housing, while the other 2 speeds result from the switching of the bipolar engine (1400 – 2800 rpm).

With its top-quality components, the Maggi STEFF 2034 is not only a reliable and highly durable product, but it will leave your final product free of defects and imperfections associated with uneven stop/start feeding.

Specifications

3 rollers – 4 steady speeds back and forward motion. 2 speeds are obtained by changing the position of the gears inside the housing, while other 2 speeds result from the switching of the bipolar engine (1400-2800rpm)

Motor power enables any kind of feeding

Resistant and protective electrostatic powder paint

Interchangeable gears have been sintered, carbonitired and tempered

Case hardened and rectified endless screw of the motor shaft enables perfect matching of the bronze aluminum crown wheel (BR/AL UNI 5275) with reducer unit

c

The kind of oil used for the reducer (Mellana 150 IP or similar) ensures unlimited lubrication

Motor Power 0.7-1HP 0.52-0.75Kw
Working speed (m-min) 4-8-11-22 (50Hz)
Number of Rollers 3
Roller Diameter 120 mm
Rollers width 60 mm
Roller Excursion 20 mm
Net Weight 58 Kg
Gross Weight 61 Kg



Specifications

3 rollers – 4 steady speeds back and forward motion. 2 speeds are obtained by changing the position of the gears inside the housing, while other 2 speeds result from the switching of the bipolar engine (1400-2800rpm)

Motor power enables any kind of feeding

Resistant and protective electrostatic powder paint

Interchangeable gears have been sintered, carbonitired and tempered

Case hardened and rectified endless screw of the motor shaft enables perfect matching of the bronze aluminum crown wheel (BR/AL UNI 5275) with reducer unit

c

The kind of oil used for the reducer (Mellana 150 IP or similar) ensures unlimited lubrication

Motor Power 0.7-1HP 0.52-0.75Kw
Working speed (m-min) 4-8-11-22 (50Hz)
Number of Rollers 3
Roller Diameter 120 mm
Rollers width 60 mm
Roller Excursion 20 mm
Net Weight 58 Kg
Gross Weight 61 Kg
