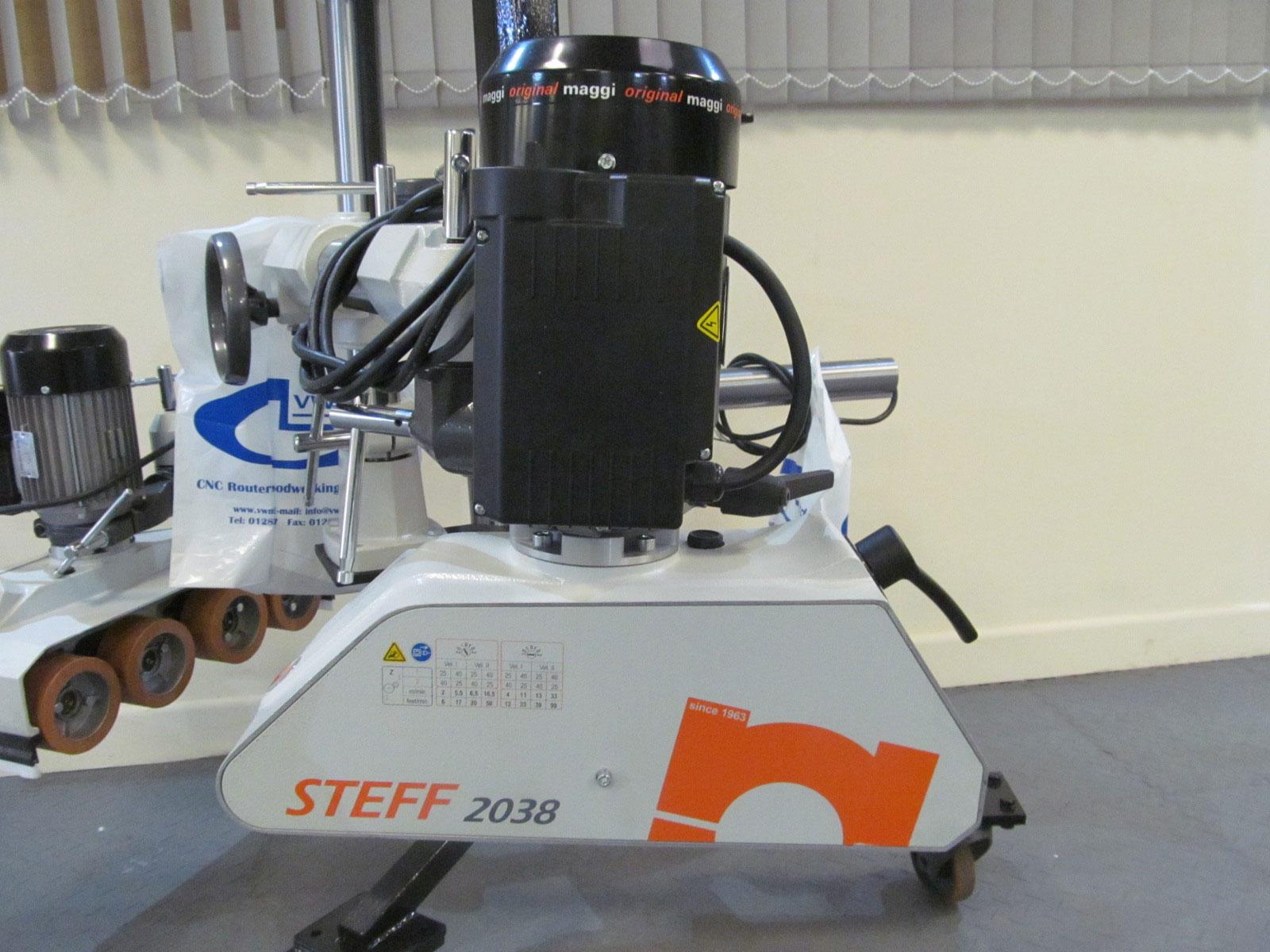

  • Side shot of the Maggi Steff 2038 Feed Unit
  • Side shot of the Maggi Steff 2038 Feed Unit

Maggi Steff 2038 Feed Unit

The Maggi Steff 2038 Feed Unit is an automatic power feed unit that has 8 steady speeds that motion forward and backward. The machine comes with a universal stand allowing for a comfortable, tailored operating process.

2 speeds are obtained by changing the position of the gears inside the housing, while the other 2 speeds result from the switching of the bipolar engine (1400 – 2800 rpm). Thanks to the gear shift, the user can choose among a double range of speeds.

Thanks to the reliability of Maggi STEFF power feeders, this machine can see even an unskilled operator work safely and efficiently. All risk is minimised and the quality of your product is maximised.

SKU STEFF-2038 Categories ,

£665.00

+VAT

Expected mid June 22

Available on backorder

Add to Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The Maggi Steff 2038 Feed Unit is an automatic power feed unit that has 8 steady speeds that motion forward and backward. The machine comes with a universal stand allowing for a comfortable, tailored operating process.

2 speeds are obtained by changing the position of the gears inside the housing, while the other 2 speeds result from the switching of the bipolar engine (1400 – 2800 rpm). Thanks to the gear shift, the user can choose among a double range of speeds.

Thanks to the reliability of Maggi STEFF power feeders, this machine can see even an unskilled operator work safely and efficiently. All risk is minimised and the quality of your product is maximised.

The Maggi Steff 2038 Feed Unit is an automatic power feed unit that has 8 steady speeds that motion forward and backward. The machine comes with a universal stand allowing for a comfortable, tailored operating process.

2 speeds are obtained by changing the position of the gears inside the housing, while the other 2 speeds result from the switching of the bipolar engine (1400 – 2800 rpm). Thanks to the gear shift, the user can choose among a double range of speeds.

Thanks to the reliability of Maggi STEFF power feeders, this machine can see even an unskilled operator work safely and efficiently. All risk is minimised and the quality of your product is maximised.

Specifications

3 rollers – 8 steady speeds back and forward motion. 2 speeds are obtained by changing the position of the gears inside the housing, while other 2 speeds result from the switching of the bipolar engine (1400-2800 rpm). Thanks to a gear shift the user can choose among a double range of speeds and easily select the most suitable one

Motor power enables any kind of feeding

Resistant and protective electrostatic powder paint

Interchangeable gears have been sintered, carbonitrided and tempered

Case hardened and rectified endless screw of the motor shaft enables perfect matching of the bronze aluminum crown wheel (BR/AL UNI 5275) with reducer unit

The kind of oil used for the reducer (Mellana 150 IP or similar) ensures unlimited lubrication

Motor Power 0.7/1 HP – 0.52/0.75 Kw
Working speed (m-min) 2-4-5.5-6.5-11-13-16.5-33 (50(Hz)
Number of Rollers 3
Roller Diameter 120 mm
Rollers width 60 mm
Roller Excursion 20 mm
Net Weight 60 Kg
Gross Weight 63 Kg

Roller/Belt Vertical Range of Motion 1 inch.
Electrostatic paint finish.
Sintered case hardened gears.
Bronze alloy main drive gear.
Natural rubber, 60 shore hardness rollers/belts. (Polyurethane belts/rollers and steel rollers also available).
Calibrated spring support for roller adherence.

Specifications

3 rollers – 8 steady speeds back and forward motion. 2 speeds are obtained by changing the position of the gears inside the housing, while other 2 speeds result from the switching of the bipolar engine (1400-2800 rpm). Thanks to a gear shift the user can choose among a double range of speeds and easily select the most suitable one

Motor power enables any kind of feeding

Resistant and protective electrostatic powder paint

Interchangeable gears have been sintered, carbonitrided and tempered

Case hardened and rectified endless screw of the motor shaft enables perfect matching of the bronze aluminum crown wheel (BR/AL UNI 5275) with reducer unit

The kind of oil used for the reducer (Mellana 150 IP or similar) ensures unlimited lubrication

Motor Power 0.7/1 HP – 0.52/0.75 Kw
Working speed (m-min) 2-4-5.5-6.5-11-13-16.5-33 (50(Hz)
Number of Rollers 3
Roller Diameter 120 mm
Rollers width 60 mm
Roller Excursion 20 mm
Net Weight 60 Kg
Gross Weight 63 Kg

Roller/Belt Vertical Range of Motion 1 inch.
Electrostatic paint finish.
Sintered case hardened gears.
Bronze alloy main drive gear.
Natural rubber, 60 shore hardness rollers/belts. (Polyurethane belts/rollers and steel rollers also available).
Calibrated spring support for roller adherence.
