£685.00

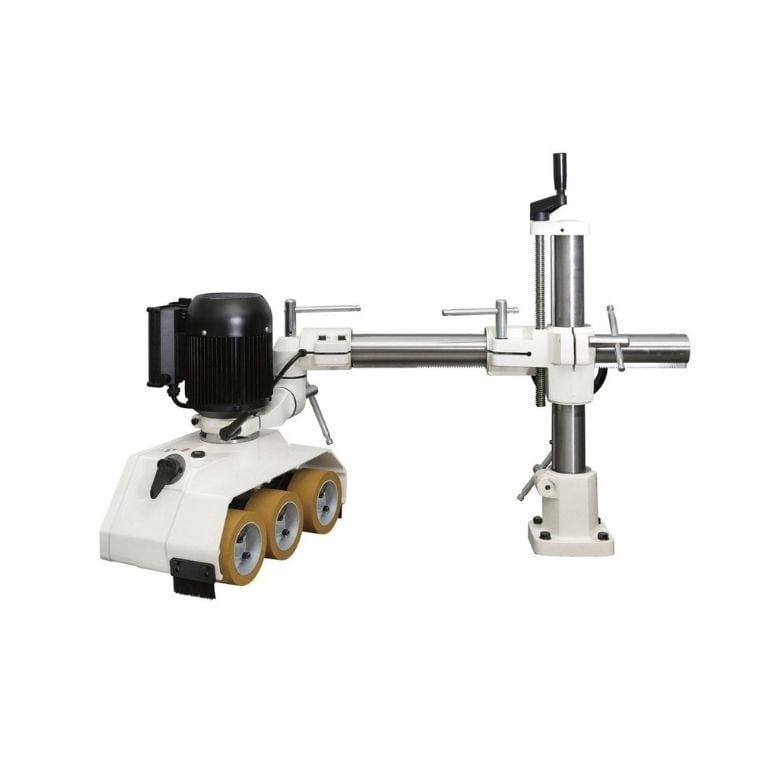

The SCM Formula Feed 38 – 3 Roller Feed Unit is a heavy-duty power feed unit that has 3 driven rollers and 8 speeds. The machine can be mounted vertically or horizontally thanks to the universal stand which comes as part of the package.
High precision and an excellent level of safety are guaranteed via the solid structure and 8 feed speeds. Both of these factors combine to boost your efficiency and increase your chances of producing a high-end, top-quality product that would satisfy even the most perfectionist woodworkers.
In Stock
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner One Funding.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
Horsepower/Rotation
1 HP (0.75 KW), 1 or 3 phase ; Forward / Reverse
Range of Speeds (50Hz) (60Hz)
2/4/5.5/7/11/13/16.5/33 M/min
(6.5/13/18/22/36/43/55/108 FPM)

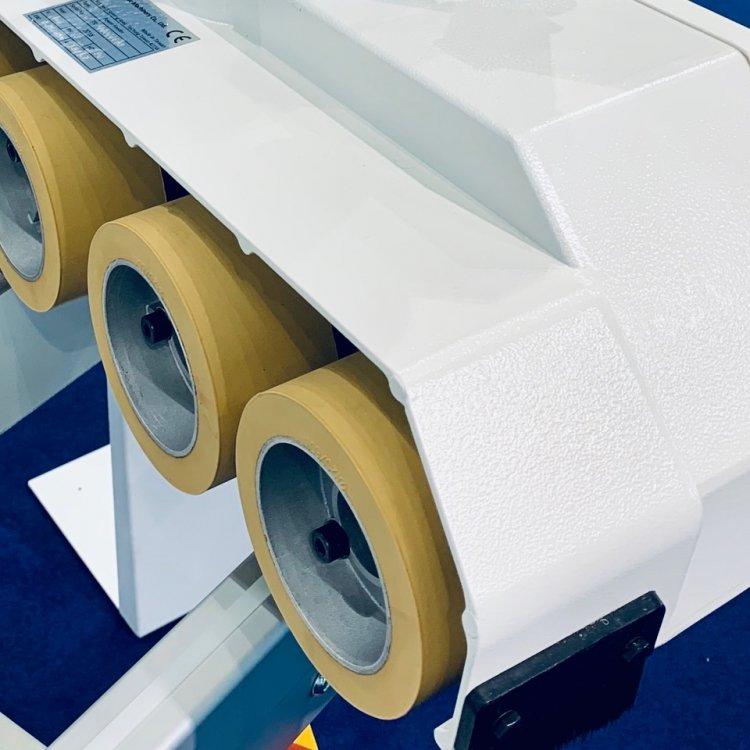

Rollers Φ120 x 60 mm x 3 pcs
(Φ4-3/4” x 2-3/8” x 3 pcs) / Synthetic Rubber
Roller Suspension
18 mm (3/4″)
| Rollers | 3 |
| Feed Speed | 2/4/5,5/7/11/13/16,5/33m/min |
| Rollers Diameter | 120mm |
| Rollers Width | 60mm |
| Rollers Excursion | 18mm |
| Three-Phase Motors Power | 0,75kW /50Hz (1HP) |
