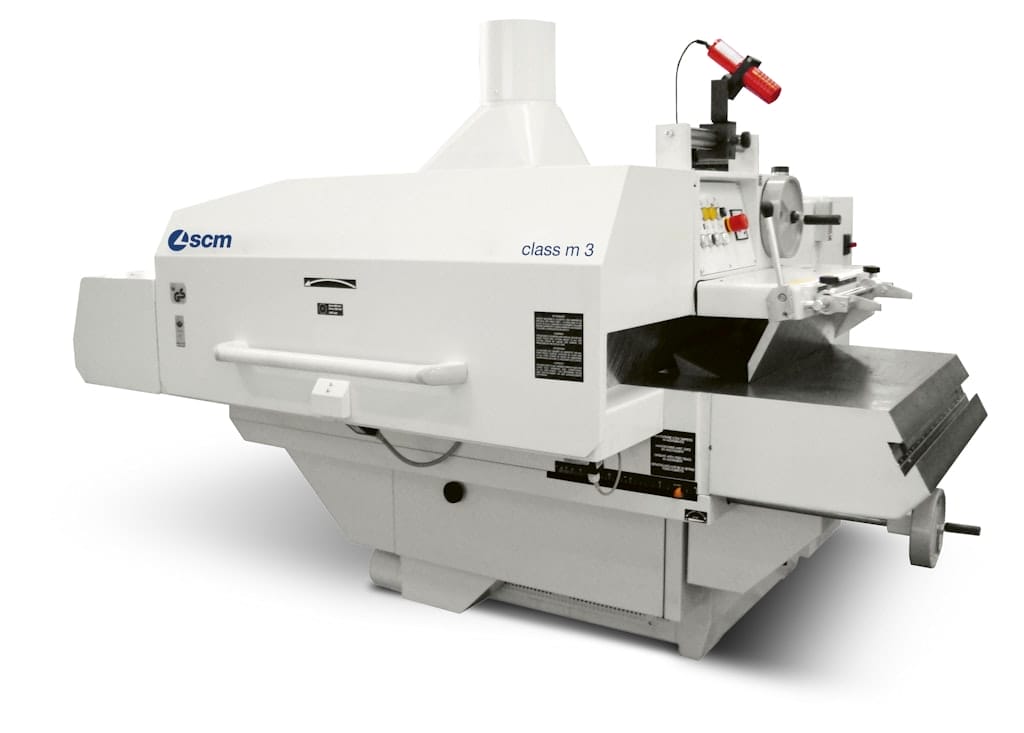

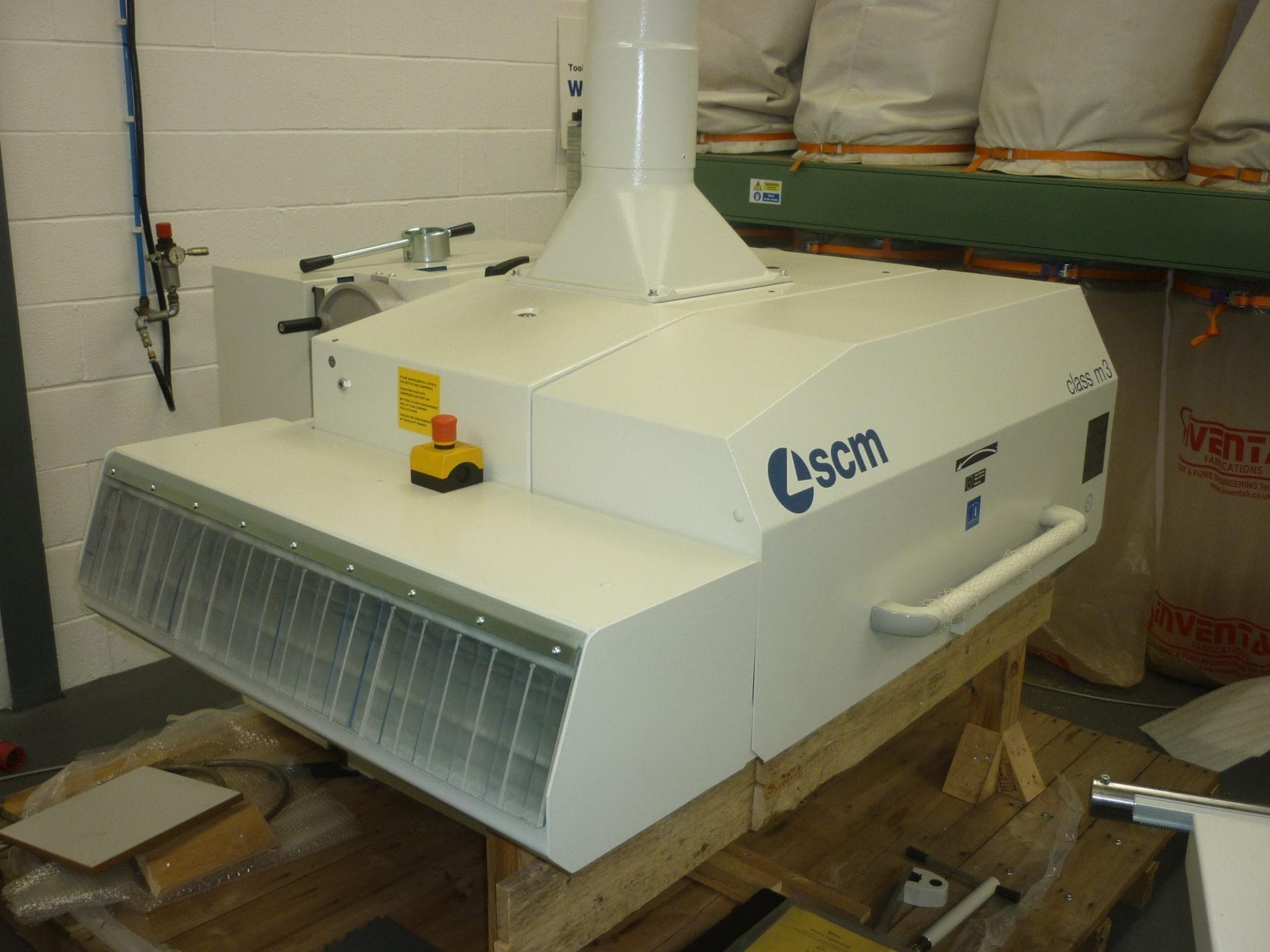

• Multiblade M3 Rip Saw 35hp from SCM

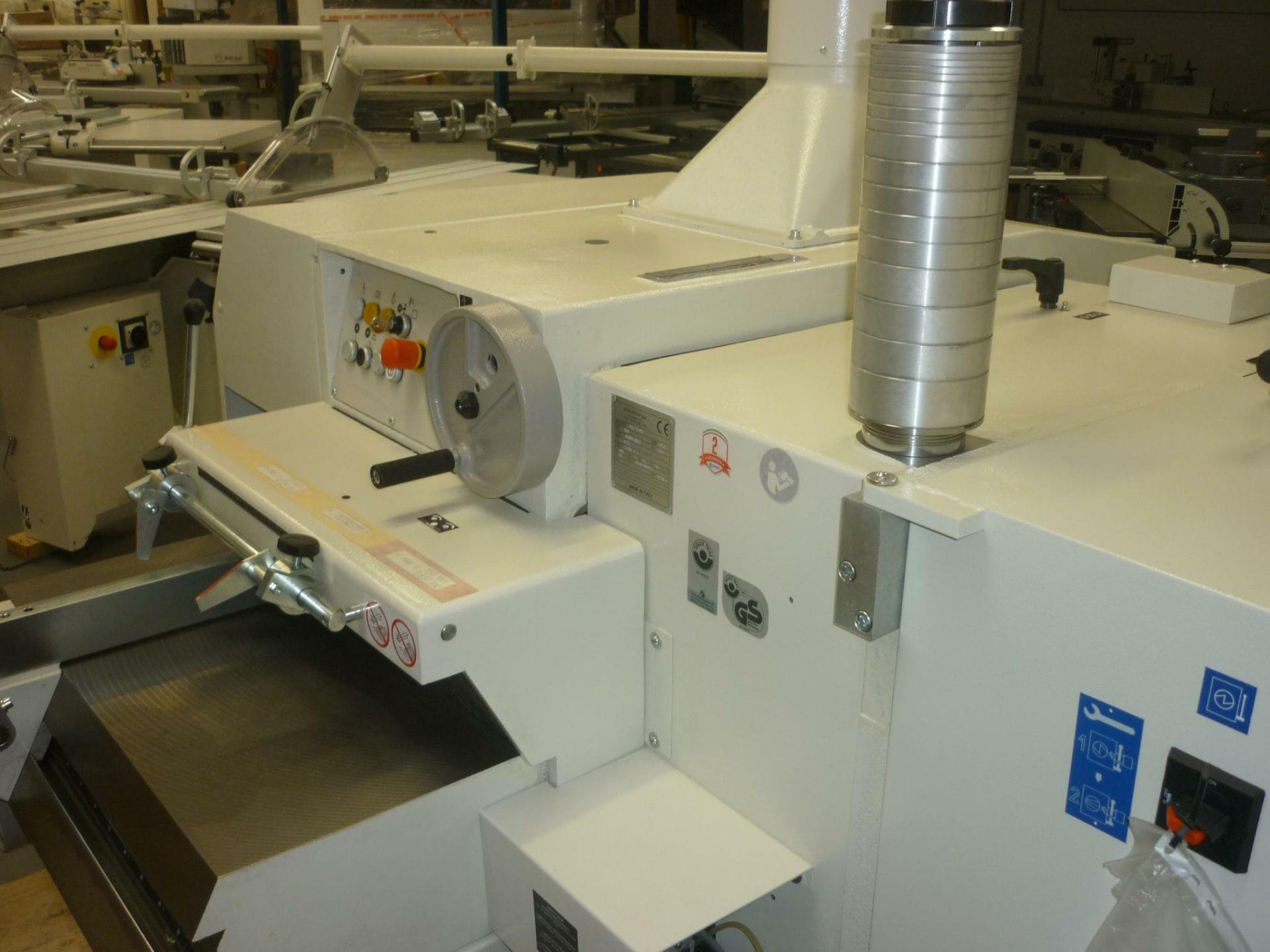

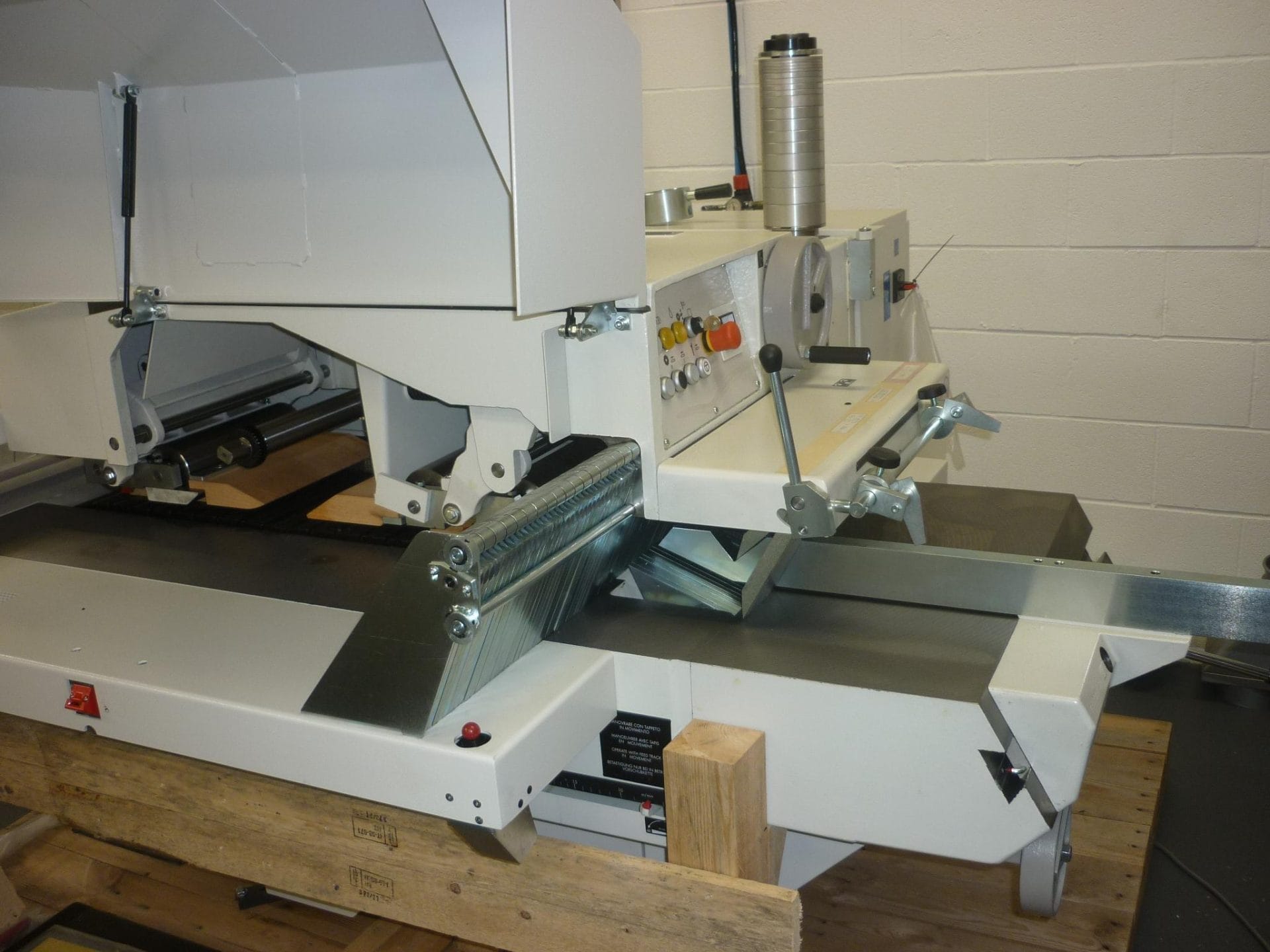

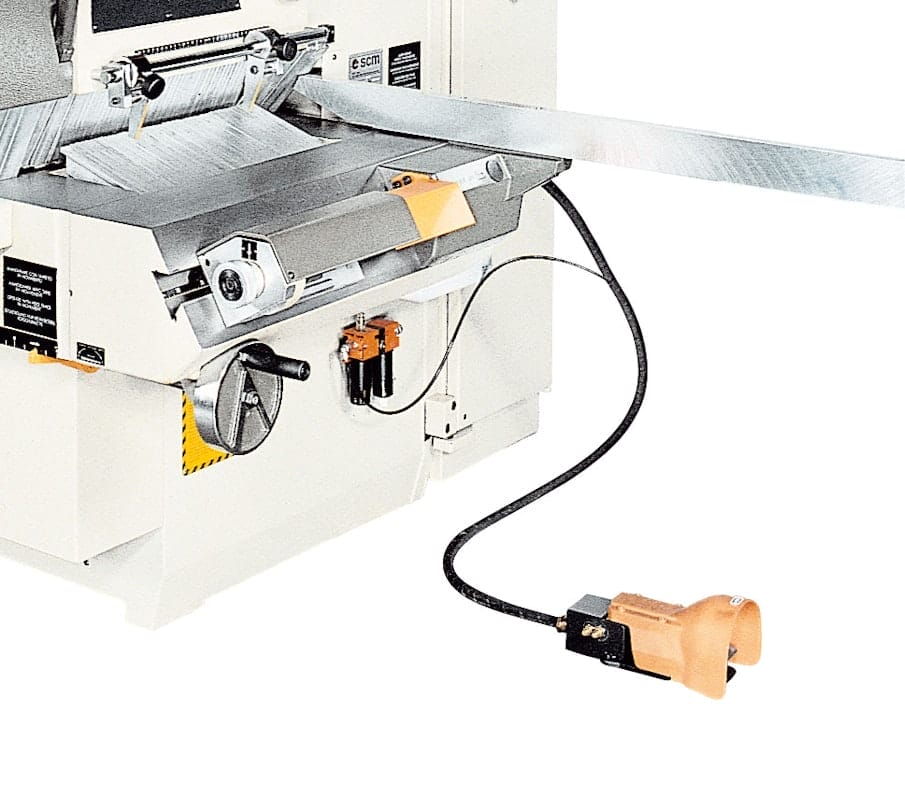

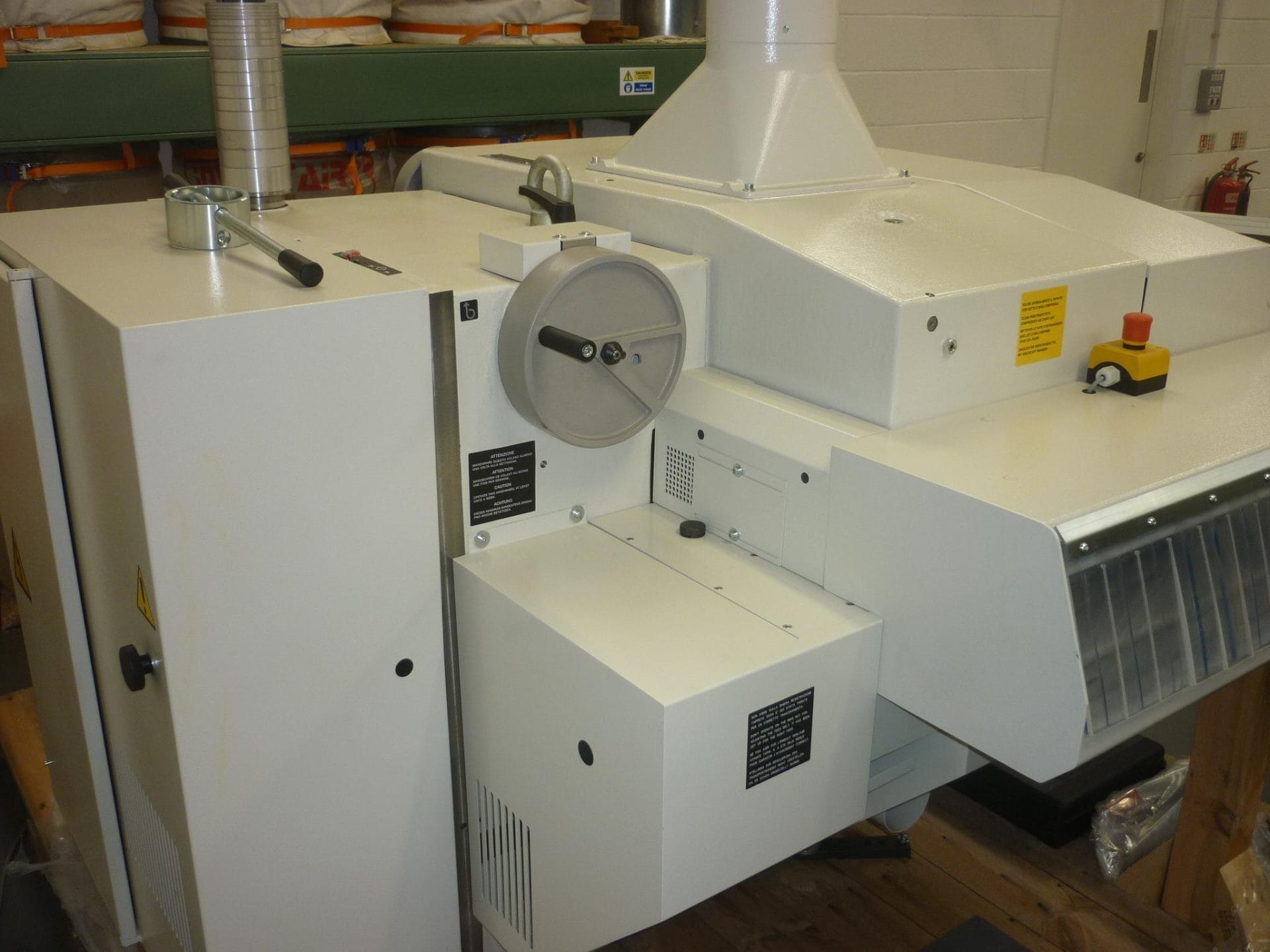

  • Component of the SCM Multiblade M3 Rip Saw 35hp

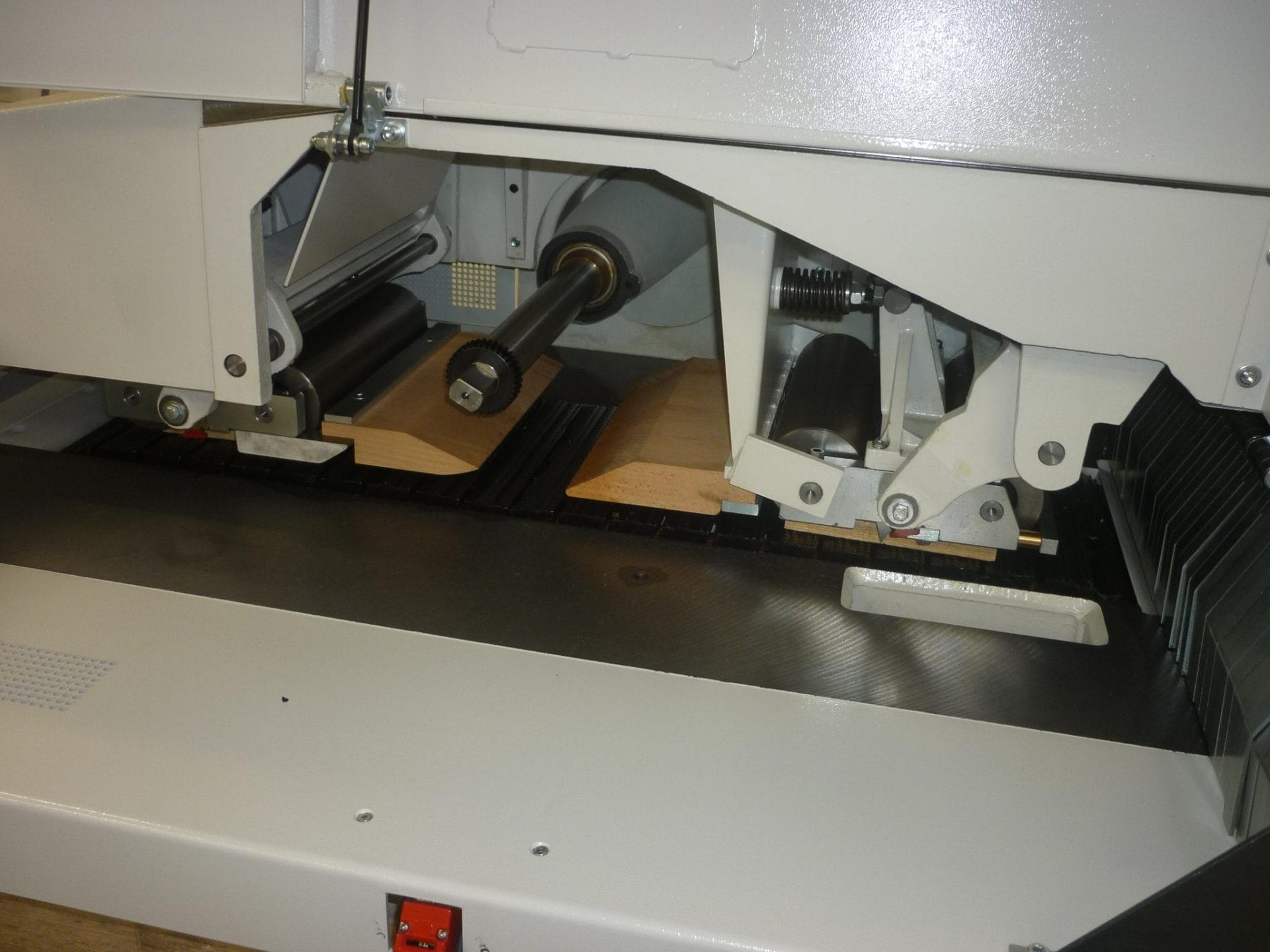

  • Component of the SCM Multiblade M3 Rip Saw 35hp
  • Blades on the SCM Multiblade M3 Rip Saw 35hp

SCM Multiblade M3 Rip Saw 35hp

The SCM Multiblade M3 Rip Saw 35hp is a heavy-duty feed track that ensures any vibrations in the machining process are absorbed away from the workpiece. This reliable, durable and accurate machine will ensure safety and efficiency whilst proving great value for money.

This multi rip saw is made with a cast-iron monobloc base, low friction slideways, automatic lubrication of feed tracks, feed variator with clutch for total safety in case of accidental stopping of feed track and a shaft sleeve.

SKU New-SCM-Multiblade-M3-Rip-Saw-35hp Categories ,

£26,850.00

+VAT

In stock

Add to Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

Example Finance Lease (subject to approval). Term 60 months
Monthly payment £583.99 + vat

The SCM Multiblade M3 Rip Saw 35hp is a heavy-duty feed track that ensures any vibrations in the machining process are absorbed away from the workpiece. This reliable, durable and accurate machine will ensure safety and efficiency whilst proving great value for money.

This multi rip saw is made with a cast-iron monobloc base, low friction slideways, automatic lubrication of feed tracks, feed variator with clutch for total safety in case of accidental stopping of feed track and a shaft sleeve.

The SCM Multiblade M3 Rip Saw 35hp is a heavy-duty feed track that ensures any vibrations in the machining process are absorbed away from the workpiece. This reliable, durable and accurate machine will ensure safety and efficiency whilst proving great value for money.

This multi rip saw is made with a cast-iron monobloc base, low friction slideways, automatic lubrication of feed tracks, feed variator with clutch for total safety in case of accidental stopping of feed track and a shaft sleeve.

Specifications

  • – max. width of blade pack 300mm
  • – width of feed track 300mm
  • – max. blade diam. 350mm
  • – min. blade diam. 200mm
  • – min. cutting length 250mm
  • – diam. of sawblade sleeve (blade bore) 70mm
  • – blade rotation speed 4200rpm
  • – feed speed of continuously adjustable 6 – 48m/min
  • – height of worktable from floor 750mm
  • – distance base to first blade on right 220mm
  • – worktable dimensions 1530 x 750mm
  • – Standard motor 35 hp (50hp optional)
  • – Laser (available option)

Specifications

  • – max. width of blade pack 300mm
  • – width of feed track 300mm
  • – max. blade diam. 350mm
  • – min. blade diam. 200mm
  • – min. cutting length 250mm
  • – diam. of sawblade sleeve (blade bore) 70mm
  • – blade rotation speed 4200rpm
  • – feed speed of continuously adjustable 6 – 48m/min
  • – height of worktable from floor 750mm
  • – distance base to first blade on right 220mm
  • – worktable dimensions 1530 x 750mm
  • – Standard motor 35 hp (50hp optional)
  • – Laser (available option)
