SCM DMC SD60-RCS 135 Wide Belt Sanding Machine

POA

The new SCM compact wide belt sander: it is extremely versatile and allows the calibrating of MDF, chipboard. etc, the calibrating and sanding of solid wood, the pre-sanding and sanding of veneered panels and the finishing of painted surfaces.

Advantages

Mesar” sectional pad: the best finish with any materialHigher quality results due to the special shape of the sectors that allows the operator to intervene “softly” but also in an “aggressive” way, simply by varying the working pressure. The setting of the pad position and the possibility of using foils of different thicknesses increases its versatility.

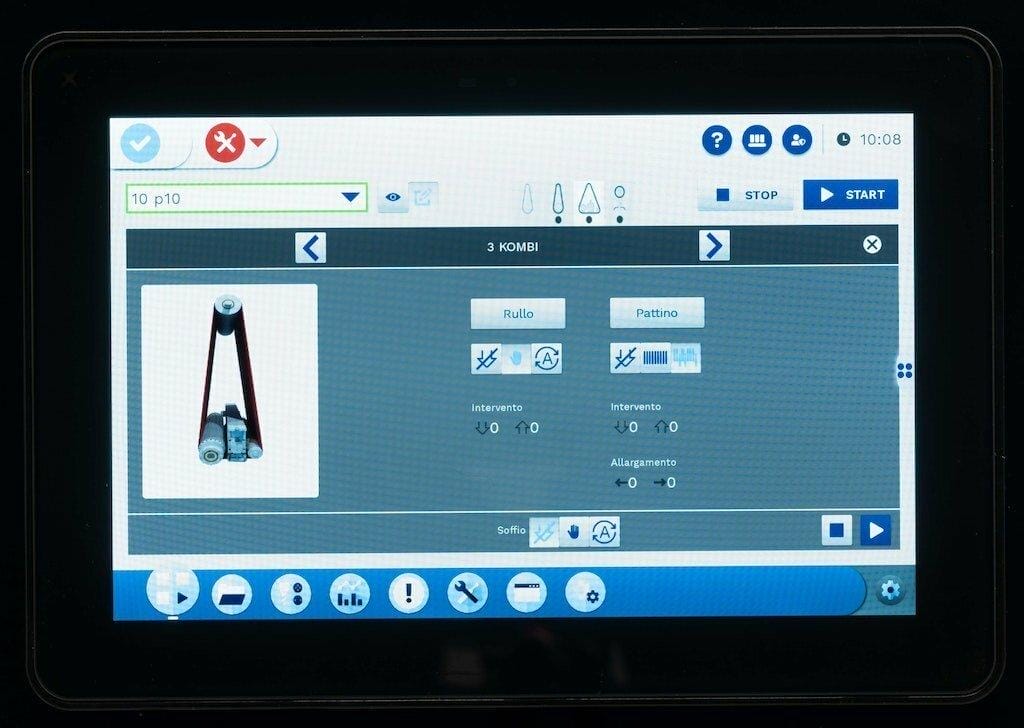

eye-S” electronic programmer: easily avoid mistakes. Simple and intuitive, allowing the operator to set all processing parameters in sequence and then launch them with the touch of a button. The possibility to store various work programs to retrieve the machine settings most commonly used makes it ideal even for unskilled operators.

Diamond-shaped belt: no slipping of the workpieces. The special geometry of the diamond-shaped profile of the transport belt provides the best traction surface for the workpiece and with the increased support area also ensures maximum stability.

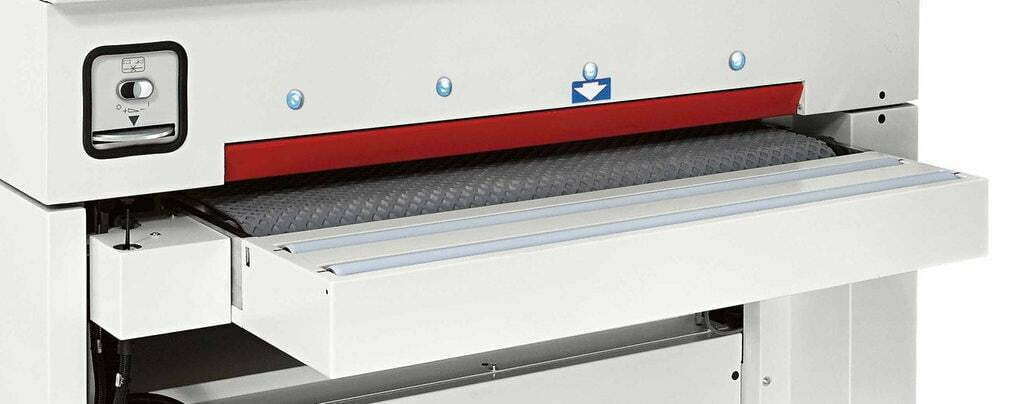

Led indicator for panel introductionSimple and intuitive, communicating to the operator where and when the panel has to be introduced into the machine and optimising the standard wear of the sanding belt; ensures a better quality finish and reduced machine costs.

Out of stock

In Stock

Expected 28/02/2024

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

10″ Eye-s Controller

B Version for RCS

Working Width 1350mm
Working Depth 3 – 170mm
Main Motor  25hp
Electronic Tracking
Power Rise and Fall
Variable Feed Speed 3 – 18 m/min

Sanding belts width mm1.370
Sanding belts length mm 2.150

Base and working table
* steel structure with electric cabinet on the machine front
* access to change sanding belts introduction from the machine left side
* powered adjustment of working thickness
* main motor positioned inside the base

Electrical equipment
* electromechanical keyboard positioned on the machine front side
* automatic star-delta start of the main motor
* overload protections on the motors
* motors in isolation class IP54

Emergency and safety devices
* automatic brake for rapid shutdown of the operating group
* hand-safety emergency device in the infeed panel area
* Front and rear emergency push button
* pad-lockable main switch
* safety micro for over thickness

* automatic emergency stop machine for:
– sanding belt breaking
– not-tensioned sanding belt
– lateral outplacement of sanding belt
– absence of compressed air
– overload on the main motor

Additional Information
