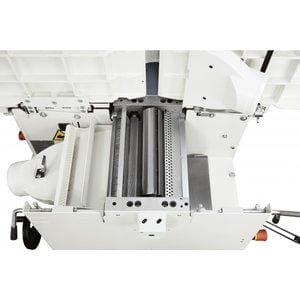

Minimax FS30 C Planer Thicknesser 1 Phase, Tersa Cutterblock

With its aluminium surfacing fences, the best selling Minimax FS30 C Planer Thicknesser 1 Phase, Tersa Cutterblock is an incredibly durable and ultra-reliable thicknesser which will give your surfaces the balance and consistency that only the fussiest of woodworkers would be satisfied with. Packing premium power and high-end precision into a neat, space-conserving, compact machine, the FS30 C will fit perfectly into any sized workshop.

For an exemplary product, you can adjust the pressure of the feed rollers according to the type of wood you are processing. The three “xylent” spiral knives will leave your product with an unparalleled finish; and in addition to the top-notch functionality, the machine has reduced noise during processing, making for a comfortable and less obtrusive workplace.

Specifications

Working width mm300

Cutterblock diameter / n° of standard knives mm/n°72/3 (Xylent or Tersa option available)

Dimension of standard knives mm300 x 30 x 3

Max. stock removal mm4

Surfacing table total length mm1510

Thicknessing table dimensions mm300 x 585

Feed speed on thicknesser m/min 7

Min. ÷ max. working height on thicknesser mm 3 ÷ 230

Single Phase (3 phase option)

Tersa Knife cutterblock included.

Cutterhead working widthmm / inches300 / 12With TERSA Straight-knife Cutterhead:

Cutterblock diameter / no° of standard knives

Dimension of standard knives

mm / n°

mm

72 / 3

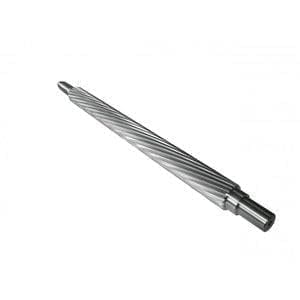

330 x 30 x 3With XYLENT Spiral helical Cutterhead:

Cutterblock diameter / no° of standard knives

Dimension of standard knives

mm / n°

mm

72 / 48

15 x 15 x 2.5Max. stock removalmm4Jointer table lengthmm / inches1510 / 59.5Planer table dimensionsmm / inches300 x 585 / 12 x 22Planer feed speedm/min7Min. – max. planer working heightmm / inches3 – 230 / 0.12 – 9Single-phase motorHp4.8Fence Tiltdegrees0 – 45
