SCM Minimax Model SC2c Panel Saw 1 Phase

£3,690.00

The cost-effective and accurate SCM Minimax Model SC2c Panel Saw 1 Phase is an excellent choice for smaller workshops and hobbyists. The compact and space-saving structure of the machine gives it the ability to fit perfectly in any small workshop without hogging any more space than needed.

No functionality is lost despite the compact size of the device. It is capable of cutting very thick wood and panels (even veneered) with great precision and steadiness. The sturdiness of the machine is credited to a 270mm-wide sliding table with a sliding system through steel spheres on hardened and calibrated steel guideways.

Perfect parallel cuts are guaranteed via the anodized aluminium, parallel fence with support, quick locking device and micrometric adjustment.

Additionally, a brand new scoring unit has been added to the panel saw that can be adjusted from outside the machine for simple, ergonomic use.

Browse our other panel saws here.

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Max. sawblade diameter mm315
Max. sawblade projection from the table at 90°/45° mm100/78
The cutting width on parallel fence mm 900 ÷ (1270 Option)
Belt driven scoring unit (OPTION)
Rip fence capacity 1270mm (OPTION)
Overhead gantry type saw guard (OPTION)
2 x Flip-over stops on squaring fence (OPTION)
Squaring stroke mm1660 (Option 2600mm)
1 set Saw blades included
Single Phase OR 3 phase available)

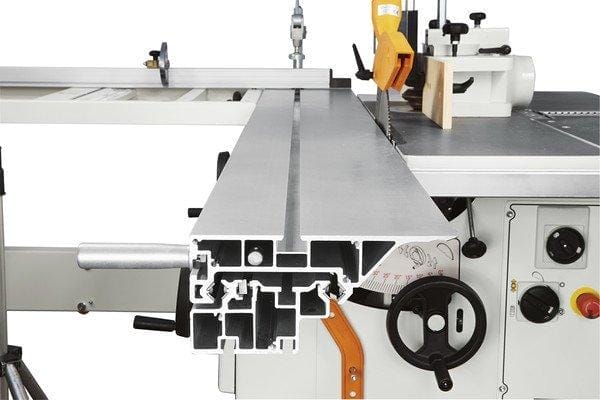

Extruded anodized aluminium sliding table dimensions: 270 x 124 x 1600 mm sliding on high precision hardened guideways
Squaring Frame: complete with a telescopic fence with 1 crosscut flip-over stops, eccentric clamp and support

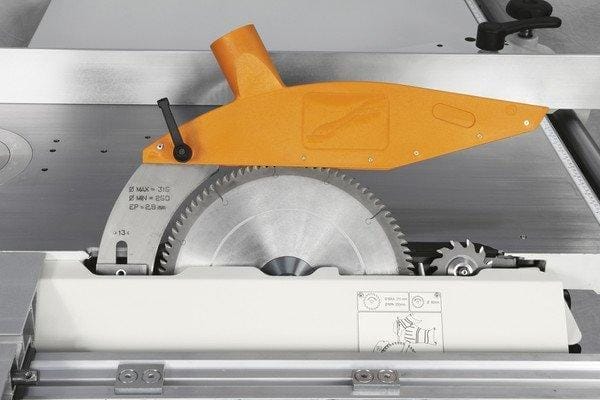

Saw unit: 315 mm maximum blade diameter with scoring blade (option) installed (blade not included)

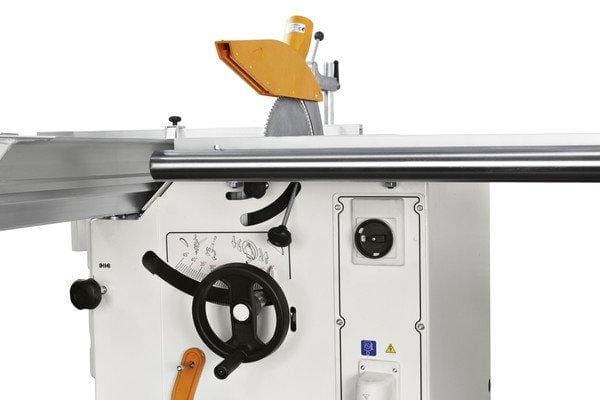

Dedicated saw parallel fence: with high rigidity cast iron fence support, micrometric adjustment and cam-locking system and 45 mm diameter rectified steel round sliding bar
Max. saw blade diameter with scoring blade fitted: 315mm
Max. saw blade projection from table at 90° / 45°: 100 / 78mm
Squaring stroke: 1600 mm
Cutting width on the parallel fence: 900 mm
Three-phase motor: 4kW 5.5hp 50Hz
Exhaust outlet diameter: 120 mm

Optional Extras:
58.03.45: Additional table on the sliding table for the support of panels with large dimensions
58.02.05: Digital readout for parallel fence positions complete with digital display and magnetic band
58.02.81: Overhead blade protection 900 mm cutting width complete with 80 mm exhaust outlet
58.02.04: Overhead blade protection 1270 mm cutting width complete with 80 mm exhaust outlet
58.10.17: Belt driven scoring unit complete with blade adjustment from the machine outside without the need for tools (included)
28.01.43: Cutting width with parallel fence 1270 mm (included)
58.00.11: 2 Squaring flip-over stops
58.02.13: Angular cutting device with flip-over stops equipped with a telescopic fence with 2 flip-over stops and pre-set for rapid angle selection
58.02.62: Three-phase motor 5kW (6.6hp) 50Hz S6
58.01.51: Single-phase motor 2.2kW (3hp) 50Hz S6
58.02.64: Self-braking motor on saw blade
08.87.47: Triple wall
