SCM Model Ti145EP-LL Class Electronic Tilting Spindle Moulder

POA

Thanks to SCM’s advanced technology, the SCM Model Ti145EP-LL Class Electronic Tilting Spindle Moulder is a high-end, tilting spindle moulder that is capable of high precision machining whilst only requiring minimal setup times. The machine has a great focus on safety and ease of use, making the operating process far easier and less risky.

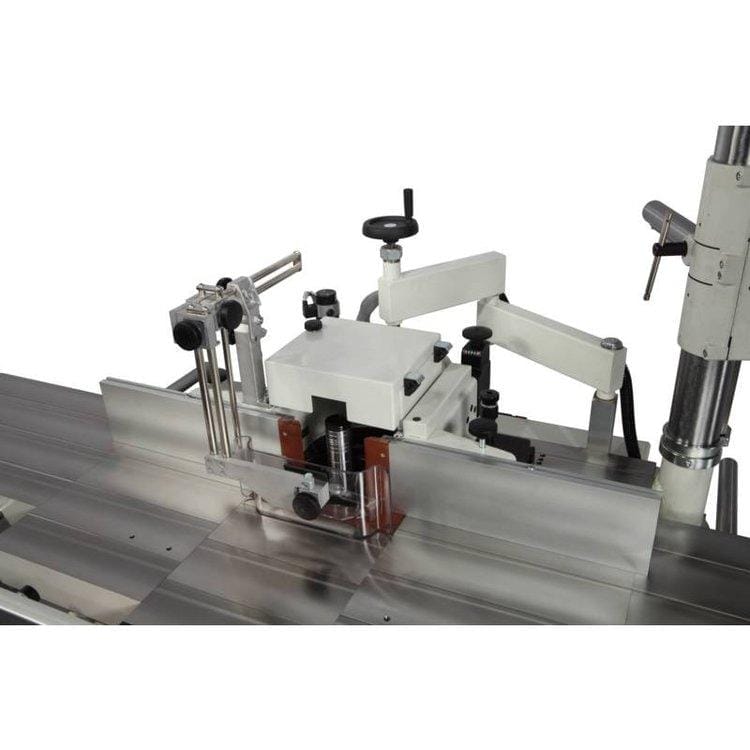

With the addition of the “FLEX-ONE” fence, adjusting the fence is as easy as ever and allows for far easier, safer operation. The fence has automatic positioning with a digital depth indicator which totally eliminates the need for test runs, further amplifying the ease-of-use factor.

The material being processed will also be greatly supported by the “FAST” sectional worktable, adding to the sturdiness and stability of the workpiece – and by extension, ensuring the accuracy of the finished product. Due to its close proximity to the tool, the workpiece can be easily and ergonomically adjusted with mounted tools.

The tedious and time-consuming requirement of keys to unlock tools has been made obsolete thanks to the “T-SET” feature of this spindle moulder. Tools can be quickly and efficiently locked/unlocked thanks to the compressed air gun. Not only does this make for faster, more flexible operation, but it makes the machine safer to operate.

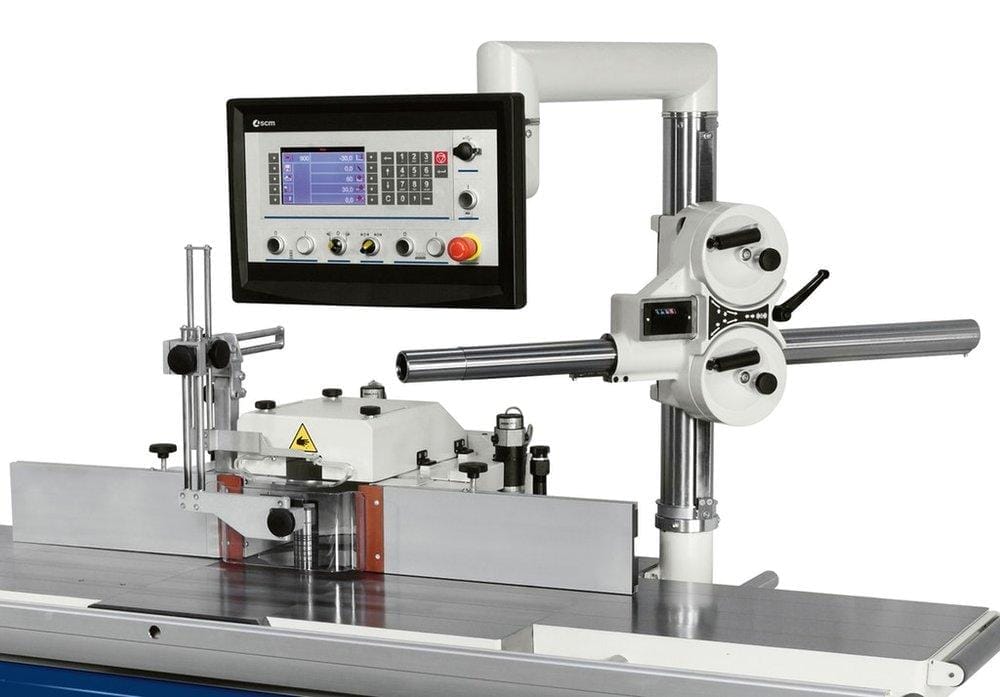

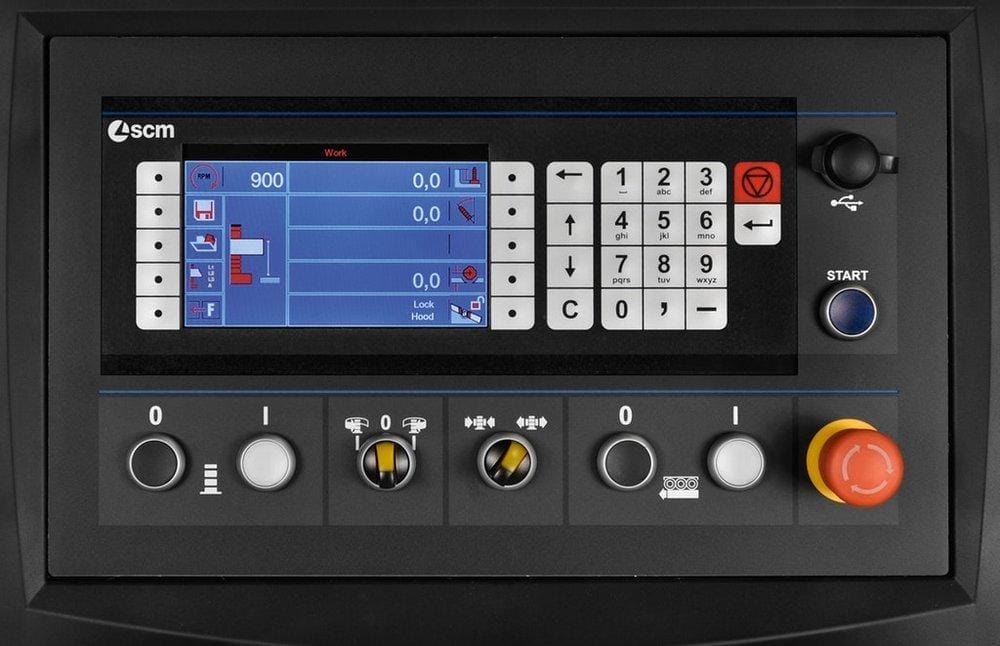

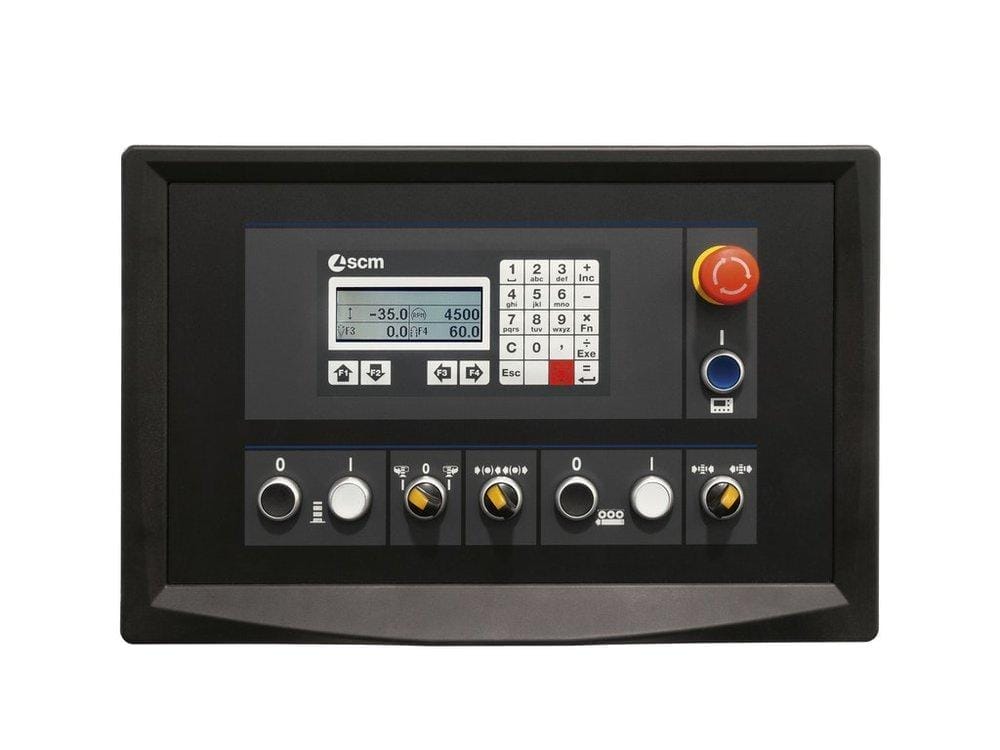

Lifting and tilting functions and spindle moulder positioning can be controlled electronically thanks to the “READY” control panel. Monitoring of the spindle speed can also be overseen alongside counting and calculation features. The control panel is straightforward to use and makes for far greater efficiency, safety and control.

Out of stock

In Stock

Expected 26/10/2023

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Spindle height diam. 30-35 (40-50)mm140 (160)
Spindle speed (at 50 Hz)rpm3000/4500/6000/7000/10000
Max. diameter of the profiling toolmm250
Max. tool diameter retractable under the table at 90°mm300
Max. diameter of the tenoning toolmm300
Three-phase motor power starting fromkW/Hz7 (8) / 50 (60)

Ready 3 Up Version c/w overhead control panel and mounting support for feeder.

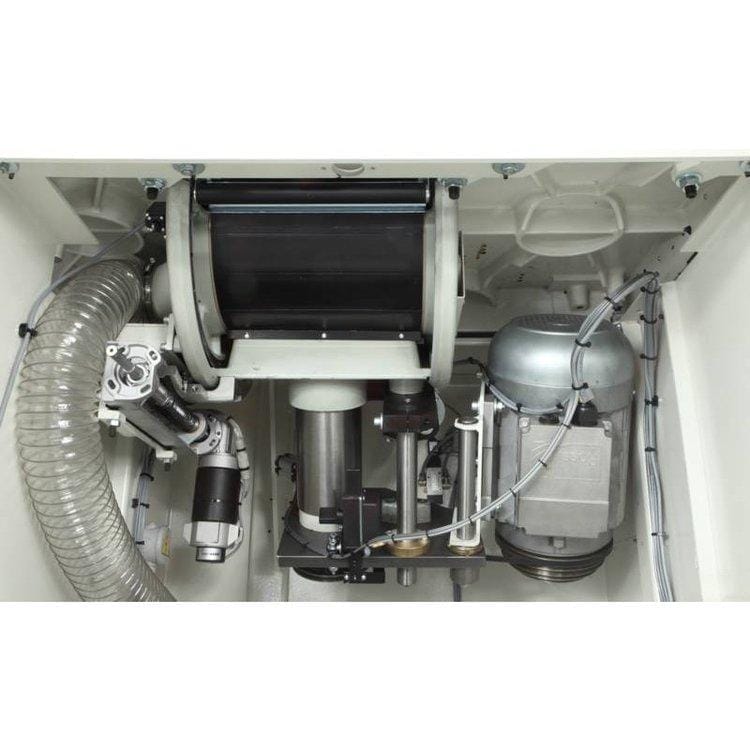

Electronic positioning of spindle lifting and tilting,
Storage capacity 300 programs
Fast table insert (replacing table rings)
MK 5 Interchangeable spindle shaft 30mm
“T” SET Rapid tool locking.
Aluminium fences
Automatic movement of the entire fence with respect of tool diameter
Manual adjustment of infeed table (removal) by means of handwheel with numerical read-out
Manual Vertical and Horizontal Feeder Support
9kw-12hp motor with Auto star-delta start
LL Version 2500mm table extensions with front pull-out support bar
Fitted with new SCM 4 Roller Feed Unit
