• F410 Nova Surface Planer from SCM

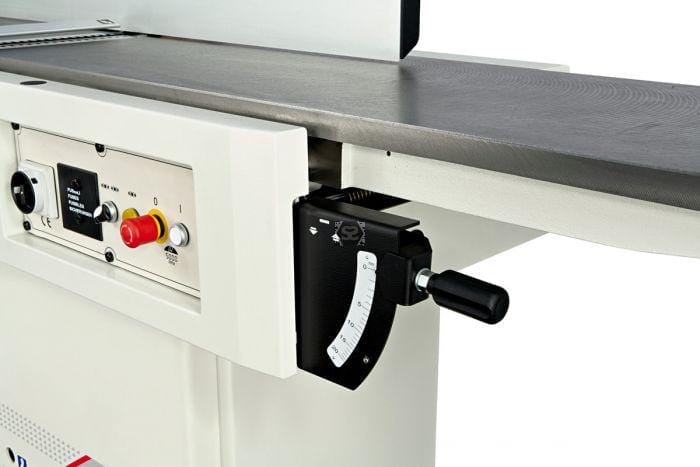

  • Control panel on the SCM F410 Nova Surface Planer

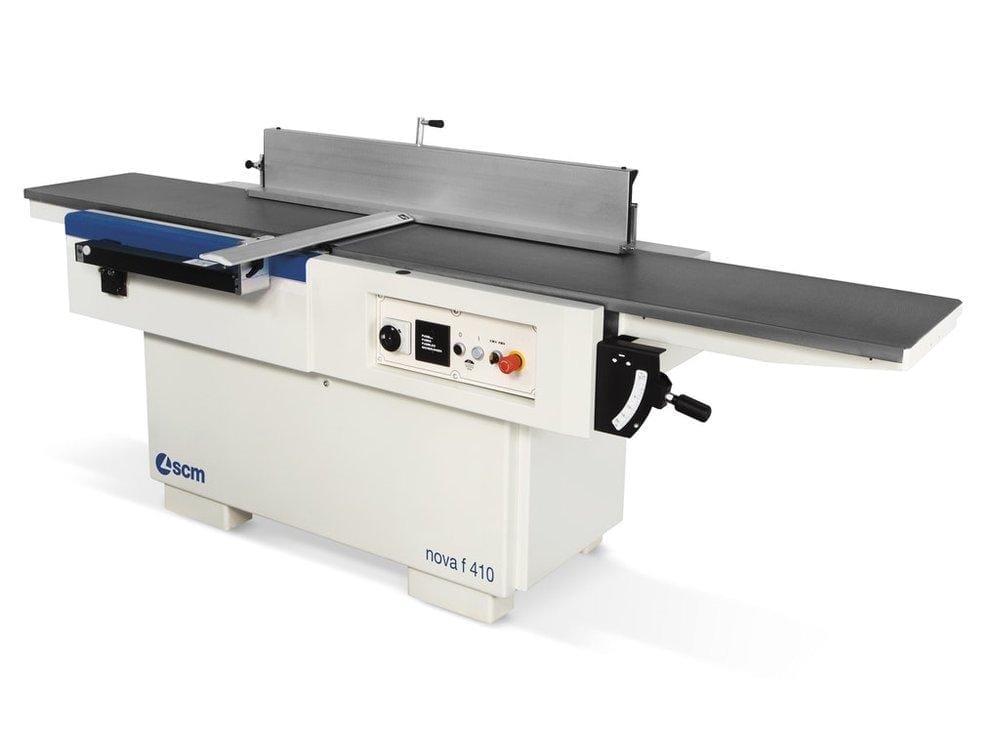

  • Front shot of the SCM F410 Nova Surface Planer
  • Component of the SCM F410 Nova Surface Planer
  • Sliding table on the SCM F410 Nova Surface Planer

SCM F410 Nova Surface Planer

The SCM F410 Nova Surface Planer is a solid but compact surface planer fit for any modern, professional workshop. The cutter blocks can be altered to suit your needs via the ability to swap between different options – standard resharpenable, TERSA or Xylent systems.

The rugged, durable build will give you many years of service and the induction motor has been designed for full industrial use. All vibrations are totally absent thanks to the massive, cast ironwork table and maximum stability, reliability and ergonomics are guaranteed with the connecting rods.

Chamfering can be done with ease with any fence angle between 90 and 45 degrees available. The bridge guard can also be adjusted and set with ease.

£7,295.00

+VAT

Expected 30/09/2022

Available on backorder

Add to Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The SCM F410 Nova Surface Planer is a solid but compact surface planer fit for any modern, professional workshop. The cutter blocks can be altered to suit your needs via the ability to swap between different options – standard resharpenable, TERSA or Xylent systems.

The rugged, durable build will give you many years of service and the induction motor has been designed for full industrial use. All vibrations are totally absent thanks to the massive, cast ironwork table and maximum stability, reliability and ergonomics are guaranteed with the connecting rods.

Chamfering can be done with ease with any fence angle between 90 and 45 degrees available. The bridge guard can also be adjusted and set with ease.

The SCM F410 Nova Surface Planer is a solid but compact surface planer fit for any modern, professional workshop. The cutter blocks can be altered to suit your needs via the ability to swap between different options – standard resharpenable, TERSA or Xylent systems.

The rugged, durable build will give you many years of service and the induction motor has been designed for full industrial use. All vibrations are totally absent thanks to the massive, cast ironwork table and maximum stability, reliability and ergonomics are guaranteed with the connecting rods.

Chamfering can be done with ease with any fence angle between 90 and 45 degrees available. The bridge guard can also be adjusted and set with ease.

Specifications

  • Manual movement of the infeed table
  • length of tables 2610mm
  • Readout of cutting depth
  • Tersa Knives
  • 4Kw (5.5hp) Motor
  • Additional overturning fence
  • Planing width 410mm
  • Table length 2610mm
  • Cutter block dia 120mm
  • Cutter block type Z=4 Tersa
  • Cutter block speed 5000rpm
  • Motor 7hp
  • Fence size 1200x190mm
  • Dust Connection dia 120mm
  • Weight 500kgs
  • Overall Dimensions 2610x1200mm
  • Max stock removal 8mm
  • Prices reflect a basic machine, please call or email for a quotation for the various options offered
Cutterhead working width mm / inches 520 / 20 410 / 16
With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives
mm/n°
mm
120/4
520 x 35 x 3
120/4
410 x 35 x 3
With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of knives
Dimensions of standard knives
mm/n°
mm
120/84
15 x 15 x 2.5
120/66
15 x 15 x 2.5
Jointer bed length mm / inches 2750 / 108 2610 / 102
Three-phase motor Hp 8 8
Max. stock removal mm 8 8

Specifications

  • Manual movement of the infeed table
  • length of tables 2610mm
  • Readout of cutting depth
  • Tersa Knives
  • 4Kw (5.5hp) Motor
  • Additional overturning fence
  • Planing width 410mm
  • Table length 2610mm
  • Cutter block dia 120mm
  • Cutter block type Z=4 Tersa
  • Cutter block speed 5000rpm
  • Motor 7hp
  • Fence size 1200x190mm
  • Dust Connection dia 120mm
  • Weight 500kgs
  • Overall Dimensions 2610x1200mm
  • Max stock removal 8mm
  • Prices reflect a basic machine, please call or email for a quotation for the various options offered
Cutterhead working width mm / inches 520 / 20 410 / 16
With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives
mm/n°
mm
120/4
520 x 35 x 3
120/4
410 x 35 x 3
With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of knives
Dimensions of standard knives
mm/n°
mm
120/84
15 x 15 x 2.5
120/66
15 x 15 x 2.5
Jointer bed length mm / inches 2750 / 108 2610 / 102
Three-phase motor Hp 8 8
Max. stock removal mm 8 8
