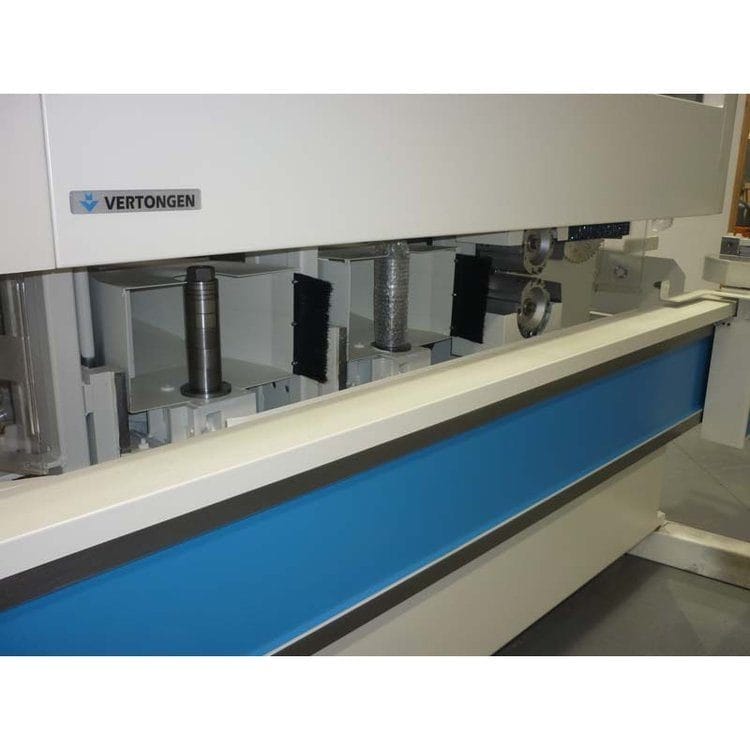

CHASSIS

• Construction: ZKF Chassis. Combined self-supporting chassis with a
  cage construction

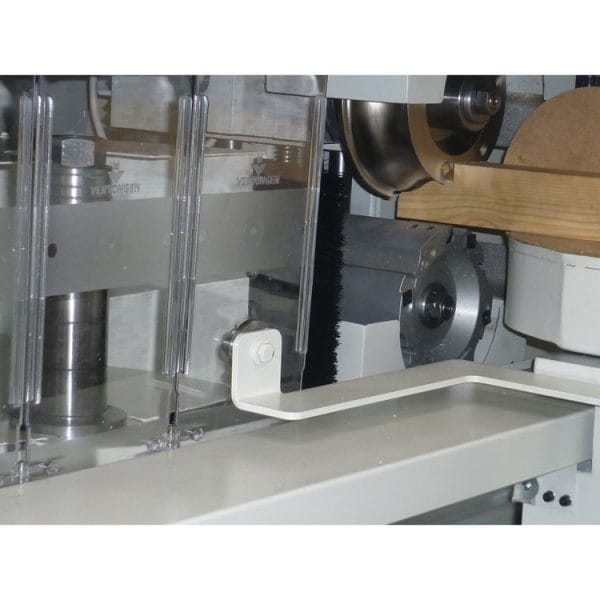

• Safety screen: Pieces of hard and dust repelling polycarbonate on a rails with wheels. Movement with catch plates.
• Security: conform CE.
• dimensions: 2200 x 1700 x 1600 mm
• total extraction: 1 x ¥ 80 mm; 3 x ¥ 150 mm

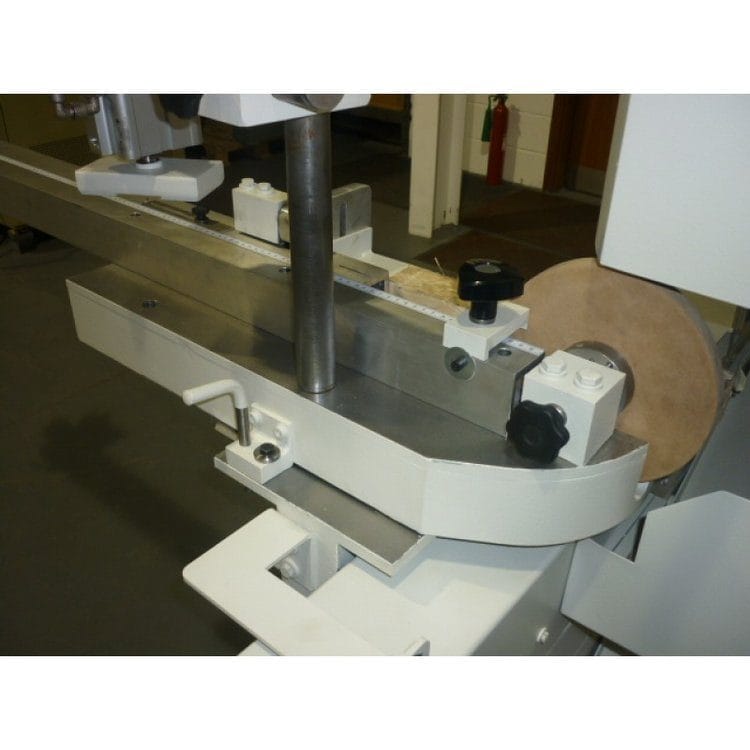

TABLE

• table mounting:
• vertically attached; extra solid movement:
• manually; automatic movement option
• table: swivelling +60º to -60º; fixed in height ;

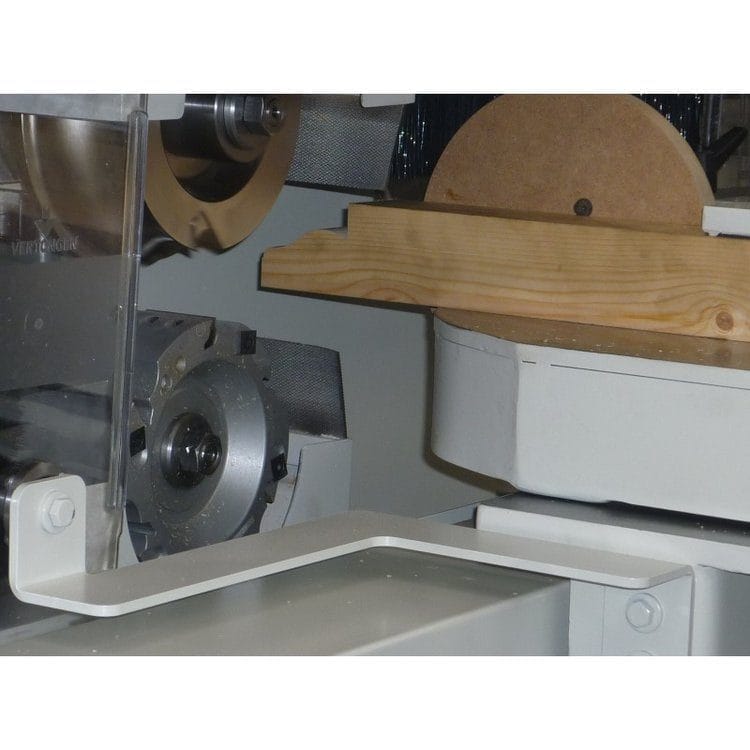

• backing wood: clamp for straight backing wood;
• NEW round backing wood included
• Clamps : quick-acting clamp vert.; pneumatic clamps vert. option
• length fence: 2,4 to 3,4 m.;
• large backstops /elec. dig. readout option
• NEW Extension table in aluminium 300 x 1000mm

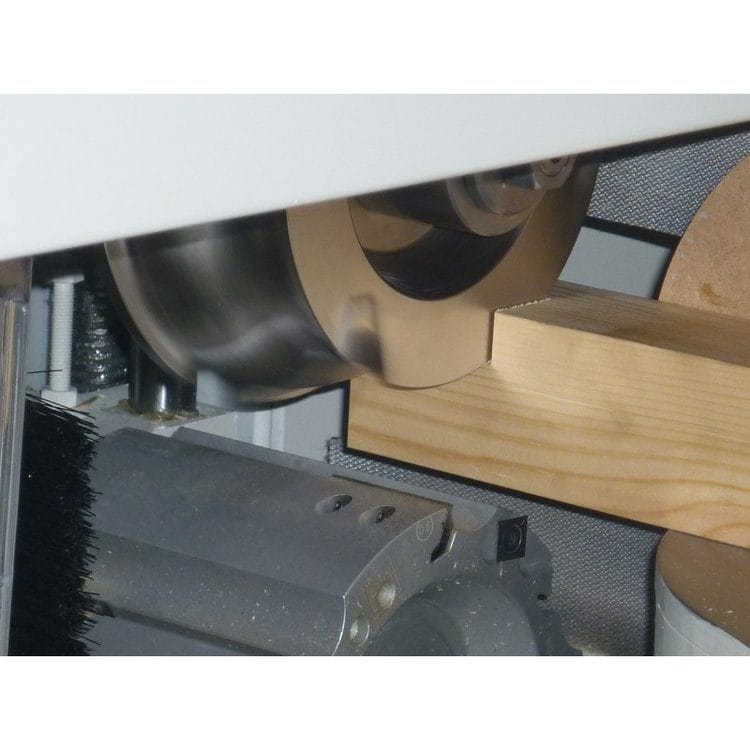

CUT OFF SAW:

• Motor: 2,2 kW – 3000 rpm
• Adjustment: hor. 20 – 155 mm –
• cut-off capacity 150 mm
• Tool: noise reduced saw included – diam. 400 mm
• Extraction: diam. 80 mm
• Positioning: a manual on slide bearings
• NEW Digital read-out of the saw ; laser option

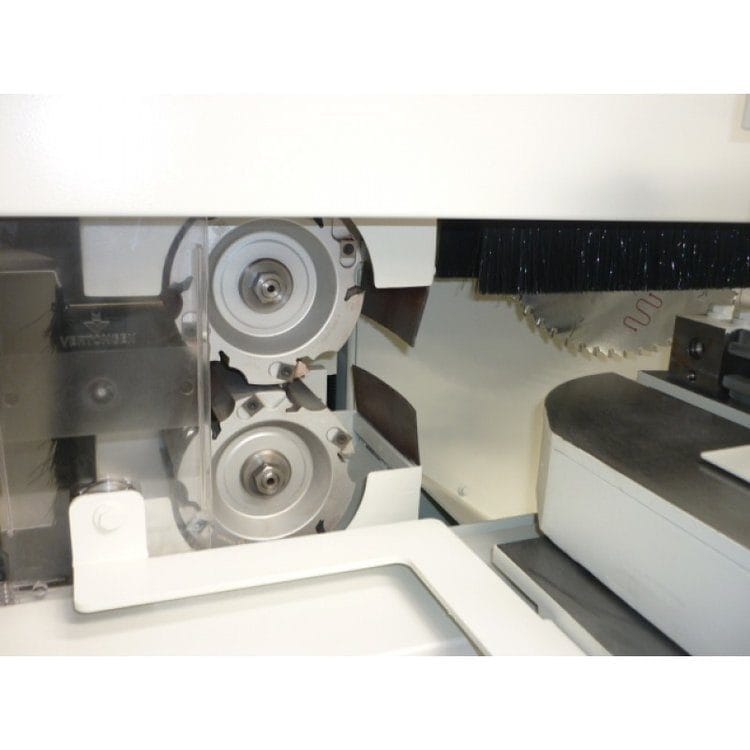

TENONING HEADS:

• Motor : 2 x 2,2 kW
• RPM: 4500
• suspension: slide bearings
• setting: mechanical digital readout on the front
• Tooling : ¥ 160 mm;
• length 145 mm;
• Tenon heads included
• extraction: 2 x 150 mm diameter
• movement: horizontally upper -55 / +25 mm; lower -55 / +0 mm
• vertically upper 0 – +150 mm; lower -5 – +115 mm

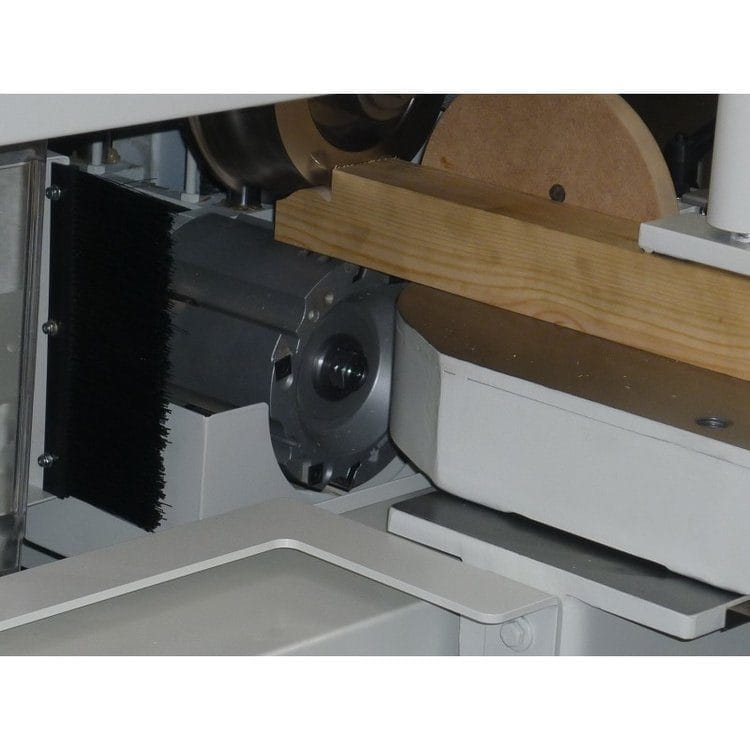

VERTICAL SPINDLE

• Motor : 5,5 kW; 7,5 kW option
• RPM: 4000 rpm
• suspension: dovetail
• reading: mechanical digital readout on the front of the machine
• movement: horizontally 150 mm; vertical -150 – +25 mm
• Spindle length: 160 mm; 200 mm option
• Spindel ¥ : ¥ 40 standard or ¥ 50 mm option
• Tool ¥ : max. ¥ 350mm
• extraction: 150 mm diameter
• Optional Equipment must be added at the production stage:
• Article nr. Description :
• PeCo-KTH-001 Round backing wood, 6 manual positions
• PeCo-KL-001 One vertical pneumatic clamp
• PeCo-LAS-001 Extension length fence to 3,4 m
• PeCo-AL-001 Extension table in aluminium
• PeCo-ATB-001 Automatic table-movement
• Preprogrammed speed; frequency controlled
• working speed 2 to 22 m/min idle running 35 m/min
• PeCo-TA-001 Digital read-out angle (for angled timber pieces)
• Options on Cut-off saw
• PeCo-AKZ-001 digital read-out on saw

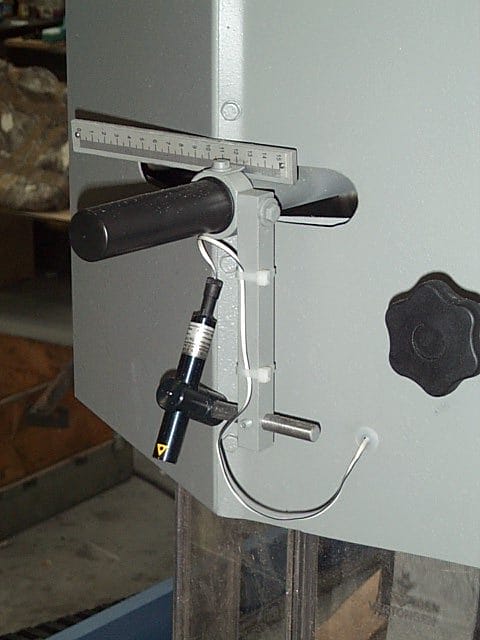

• PeCo-AKZ-002 Laser for position marking on timber

Options on Vertical spindle

• PeCo-LA-001 spindle length 200mm instead of 160mm per spindle
• PeCo-LA-002 motor 7,5 kW instead of 5,5 kW per spindle
• PeCo-LA-003 Top & bottom scribing head
• Instead of vertical spindle
• Motor 2 x 2.2kw
• RPM 4000
• Suspension Slide bearings
• Reading mechanical digital counter on front
• Spindle length 50mm @40mm or 50mm dia.
• Tool dia. max.250mm
• Movement horiz. upper -40 / + 40mm
• lower -40 / + 15mm
• vert. upper 0-125mm
• lower +80 / – 50mm
• Extraction 150mm dia.

PERFORMANCEC3 7″ TOUCHSCREEN PANEL WITH 6 X POSITION IND.

• Intelligent extension to the manually adjustable Compact tenoner.
• Regularly machine settings can be stored in a central touch-panel.
• The basic functionalities of the Compact tenoner do not change.
• Individual electronic axe-indicators with display of
• current and requested position of the different tool axis.
• Clear feedback of the position status by means of
• Preform once a manually setting of the tool axis
• according to the work to be carried out.
• Creation of a new program with freely selectable
• name. By using the “Teach-In” function all
• axe positions will be read in and stored.
• Using the Product selection” screen, the
• preprogrammed axe-positions will be recalled in a
  simple way and will be displayed on all individual axis
  indicators.
• Next, the machine can be set.
• red / green LED.
