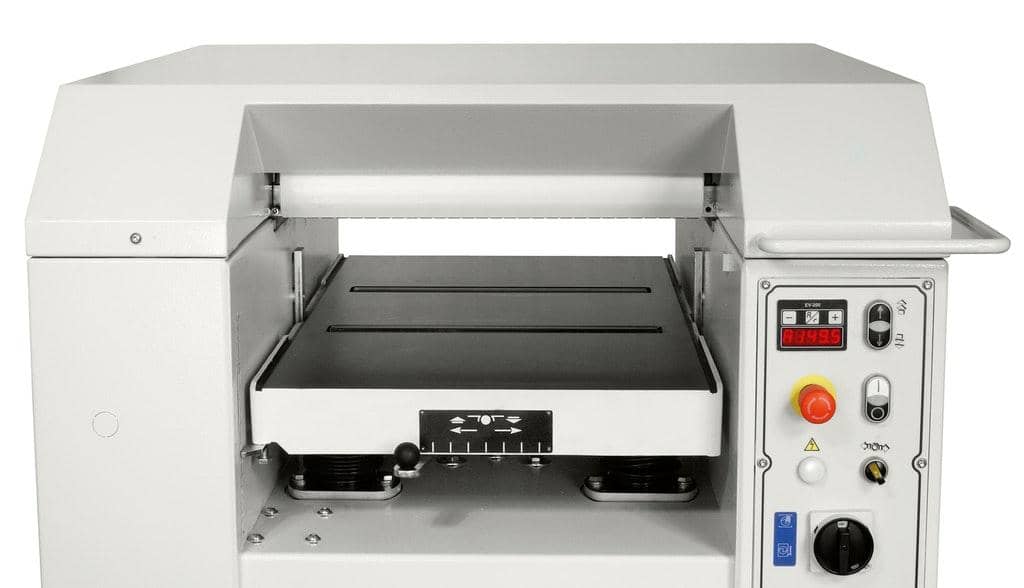

With its 520mm working width, the professional, highly flexible Minimax Model S52ES Thicknesser is the ideal thicknesser for woodworkers and craftsmen who have demanding workloads.
Depending on the type of wood you’re processing, the pressure of the thicknesser can be adjusted freely to optimise the quality of your finished product. With a sandblasted steel outfeed roller and roller infeed with a helicoidal profile, stable, reliable processing and flawless post-process finishings are guaranteed. The 95mm cutter block combined with the 4 knives also makes for precise, top-quality machining.
Outputting an exceptional finish, the “Xilent” spiral knife also reduces noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.
For more information
If you are looking to swap out your older machine for a brand new model, fill in this short form.
Finance available on this machine working alongside our partner Close Brothers Asset Finance.
IMPORTANT
Specifications | |
|---|---|
Make | |
Model | |
Pre Milling Unit | |
Minimum Panel Length | |
Edge Thickness | |
Minimum Panel Thickess | |
End Trim | |
Motor Power | |
Corner Rounded | |
Scraping |
Specifications | |
|---|---|
Bander Type | |
Feed Speed | |
Maximum Edge Thickness | |
Minimum Edge Thickness | |
Top/bottom Trim | |
Buffing | |
Dust Outlet Size | |
Voltage/Phase | |
Weight | |
Dimensions |
FEATURES
Useful working width mm520
Planer shaft diameter / standard number of knives mm / n.120/4
Size of standard knives mm 520 x 30 x 3
Removal max. to the plane mm 5
Thickness floor dimensions mm 520 x 775
Advance speed to the thickness m / min 5/8/12/18
Min. Height ÷ max. working to the thickness mm 3 ÷ 240
Motor power three-phase starting from kW / Hz7 (9) / 50 (60)
Price includes

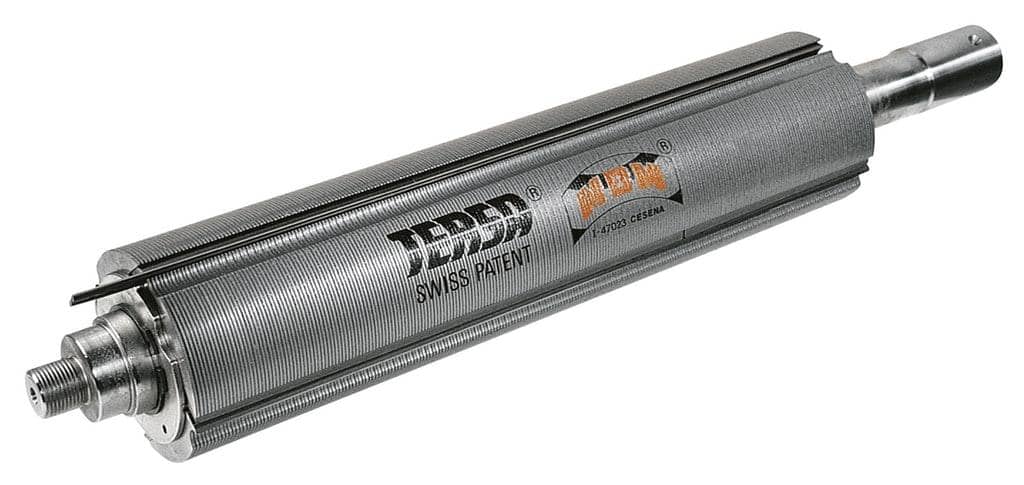

Tersa Cutter Block
Thicknessing table with two idle rollers
Increased motor power 9kw-12hp
| Working width | mm | 520 |
| Cutterblock diameter / no. of standard knives | mm/n. | 120 / 4 |
| Dimension of standard knives | mm | 520 x 30 x 3 |
| Max. stock removal | mm | 5 |
| Thicknessing table dimensions | mm | 520 x 775 |
| Feed speed on thicknesser | mm | 5 / 8 / 12 / 18 |
| Min. ÷ max. working height on thicknesser | mm | 3 ÷ 240 |
| Three-phase motors starting from | kW/Hz | 9kw(12hp) / 50 (60) |
