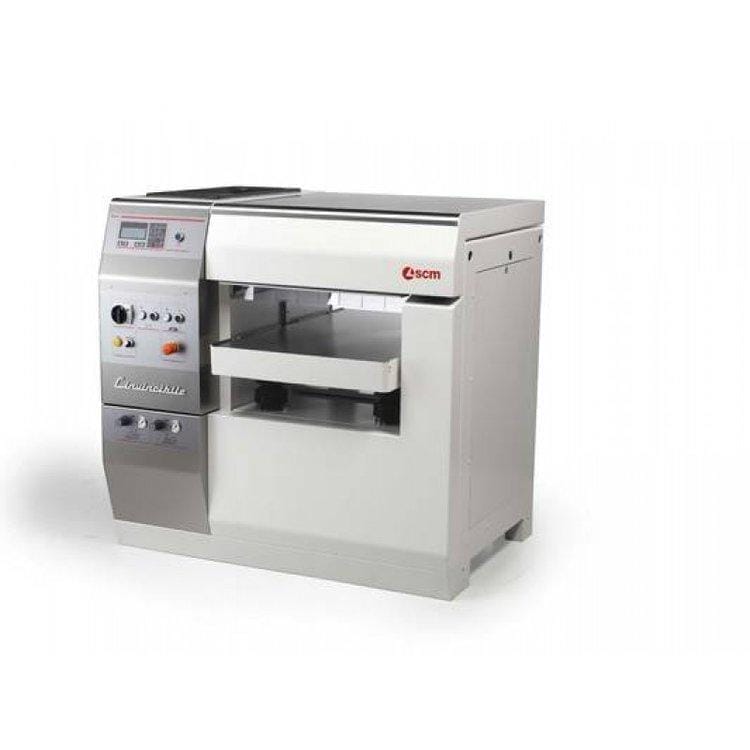

SCM L’invincibile Model S7 Thickness Planer

POA

An exclusive, top-of-the-range choice – the SCM L’invincibile Model S7 Thickness Planer utilizes SCM’s experience, technical research and creativity to bring about a powerful, highly durable and flexible thicknesser capable of handling demanding workloads from the most demanding of woodworkers and craftsmen.

The pressure exerted on your workpiece can be adjusted freely via the alterable infeed and outfeed rollers. The pneumatic adjustment assures the effectiveness and reliability of the feeding process and allows for only the best, high-quality finishes. These premium finishes can be achieved with maximum speed efficiency thanks to the electronic adjustment of the feed speed.

Featuring interchangeable rollers that have quick and easy changeover procedures that allow for the operator to have a greater degree of control and more flexibility when it comes to handling special or more complex requirements.

Optionally, the “Xylent” spiral knife has reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.

Out of stock

In Stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Specifications

Technical features S 7

Working width mm 630

Work Table dimensions mm 640×1000

Work Table height:

– maximum mm 300

– minimum mm 3,5

Maximum stock removal in a single pass mm 8

Minimum workpiece length to be processed mm 260

Cutterblock diameter mm 120

Xylent spiral cutterblock & Maintenance kit

Sectional Steel infeed roller

2 Rollers in table

Cutterblock speed rpm 4500

Electronically adjustable feed speed range m/min 4÷20

Feed motor power kW 1,3

Main motor 9kw

Exhaust hood diameter mm 150.



Options Available

Tersa cutterblock

Increased HP

Outfeed table extension

Different Roller options



Cutterhead working widthmm / inches630 /24
With TERSA Straight-knife Cutterhead:

Cutterblock diameter / n° of standard knives

Dimensions of standard knives

mm/n°mm120/4630 x 35 x 3
With XYLENT Spiral Helical Cutterhead:

Cutterblock diameter / n° of standard knives

Dimensions of standard knives

mm/n°mm120/8415 x 15 x 2.5
Min. – max. planer working heightmm / inches3.5 – 300 / 1 / 3 – 11.75
Planer feed speedm/min4 – 20
Three-phase motorHp12
Max. stock removalmm8



Additional Information
