DN2183 New Camam Model FRV2200 Double Sided Milling Machine, with Inclinable Units

Main structure:

– Heavy duty mono bloc structure, thick steel plate electro welded for maximum stability

– 1 fixed left shoulder and 1 moving right shoulder for setting loading length

– Movement of right side on  linear slides  with digital position readout

Milling units:

– 1+1 lateral milling unit with motors 4kw 6000 rpm, speed adjustable via inverter

– 40mm dia shafts useful length 100mm

– Vertical movement via pneumatic cylinder with hydraulic brake

– Useful vertical milling capacity of 200mm

– Max dia of tools 160mm

– Milling units inclinable in horizontal plane via adjustment screw with digital readout for position

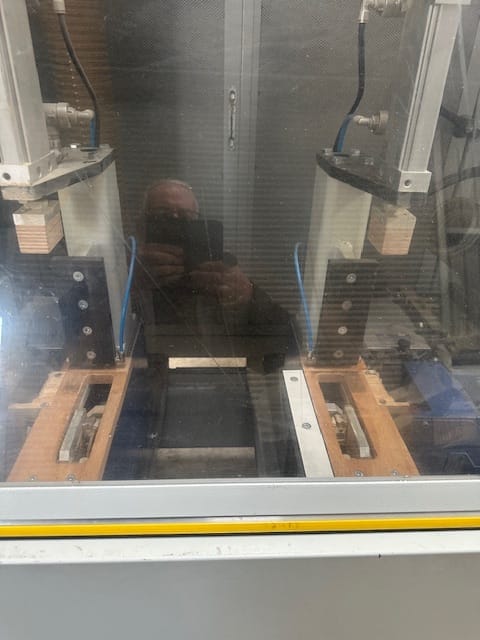

Holding benches:

1+1 holding benches with anti-splinter chipping devices

1+1 lateral reference stops for piece positioning

1 +1 frontal reference stops with possibility to set 2 different positions (male/female joint) by selector on control bar. Male/female position adjustable with screw and Siko mechanical readout

Safety protections:

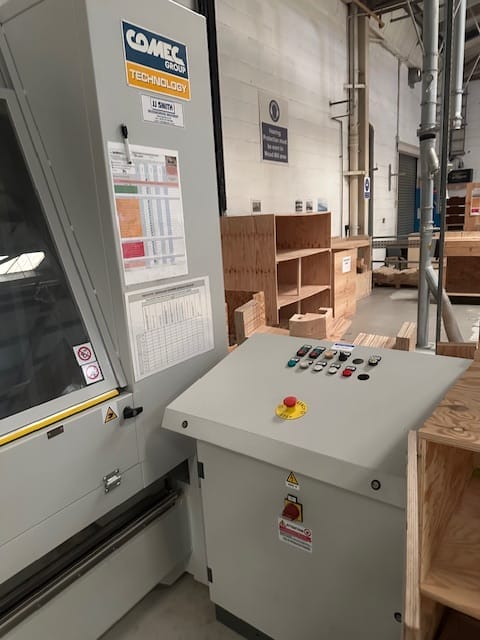

– 2 hand push button control for cycle start

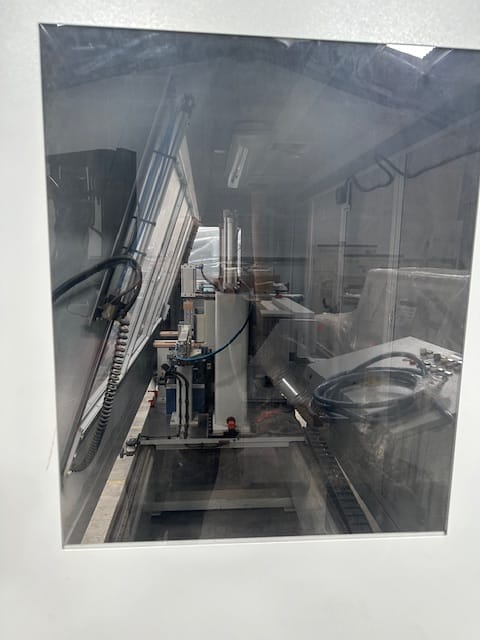

– Sound proof protection cabin with rear inspection door / electrically interlocked

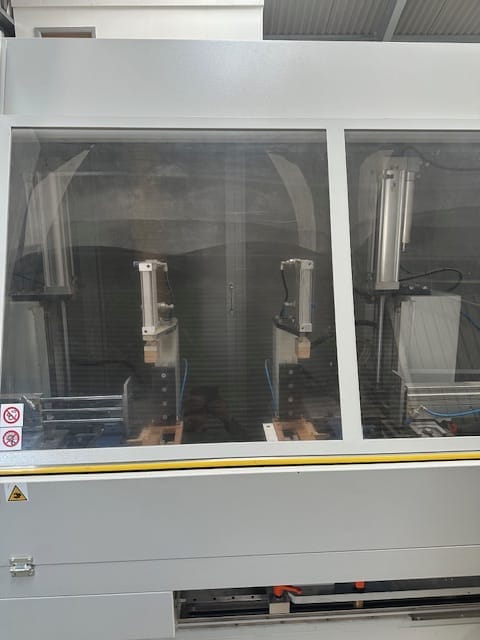

– Frontal clear polycarbonate shield, with vertical opening / closing  synchronised to the machine cycle

Productivity:

– Approx 8 to 12 seconds per machine cycle

Workable dimensions:

– Length 355mm min / max 2200mm

– Width 40mm to 90mm
