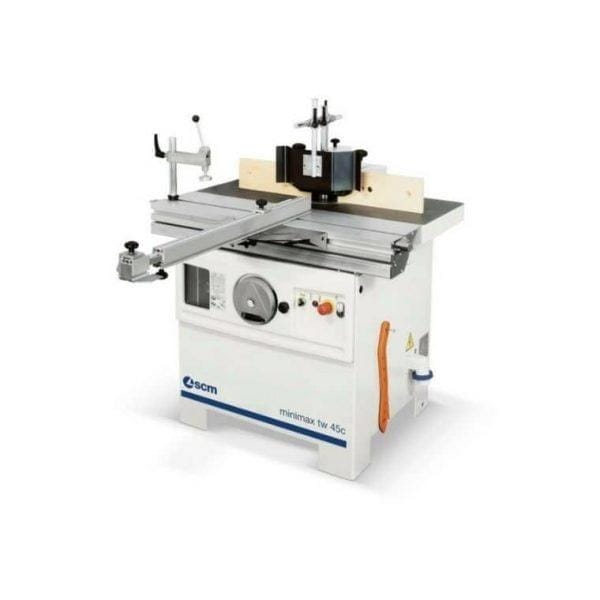

Minimax Model TW45C Spindle Moulder

Original price was: £5,701.00.Current price is: £4,995.00.

The Minimax Model TW45C Spindle Moulder is a straightforward, no-hassle machine with a space-conserving design making it a sufficient size for small workshops as well as large ones. The compact size and reasonable price also make this spindle moulder an excellent choice for hobbyists. Durability is to the SCM standard you may expect with a solid, cast iron table and cast horseshoe fence. Versatile and easy to use, the T45C has a sliding table and a fixed/tilting spindle. The sliding table provides great support which also proves useful for tenoning.

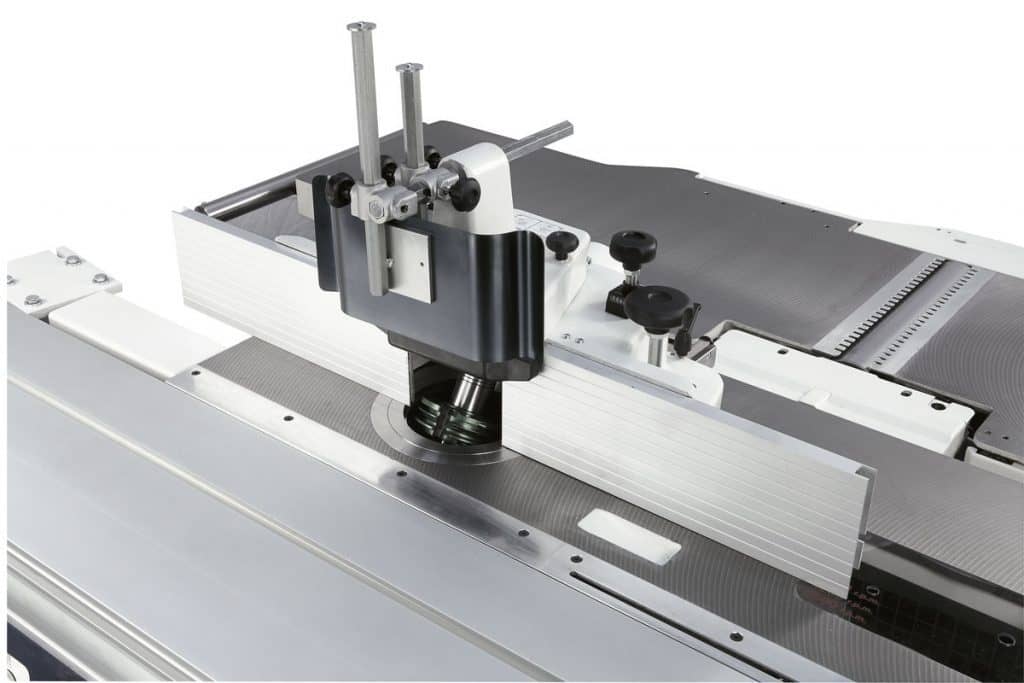

Unlike the Minimax Model T45C Spindle Moulder, the TW45C features a tilting spindle, a support frame with telescopic fences and a tenoning table with a protection hood.

All optional features available include:

  • Tilting Spindle
  • Aluminium Spindle Fences
  • Spindle Moulder Fences with Three Controlled Adjustments
  • 30mm Dia Spindle
  • 5kw 3 phase motor

In Stock

Expected 20/12/2023

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Max. useful spindle lengthmm100

Spindle moulder speed (a 50 Hz)giri/min3500/7000/10.000

Max. tool diameter when profilingmm210

Max. tool diameter lowered under the table at 90°mm180

Max. tool diameter when tenoning mm275

Three-phase motors starting from kW/Hz5 (6) / 50 (60)



  • 1ph or 3ph
  • Useable Spindle Length
    108mm
  • Spindle Speed
    3500, 7000, & 10,000rpm
  • Max Tool Ø
    2100mm
  • Max Tool Ø Beneath the Table
    180mm
  • Motor Size
    2.5hp 240v
  • 4hp 415v
  • Shaft Size
    30mm
  • Tilting of Shaft
    0 – 45° (Optional)
